X404
X404

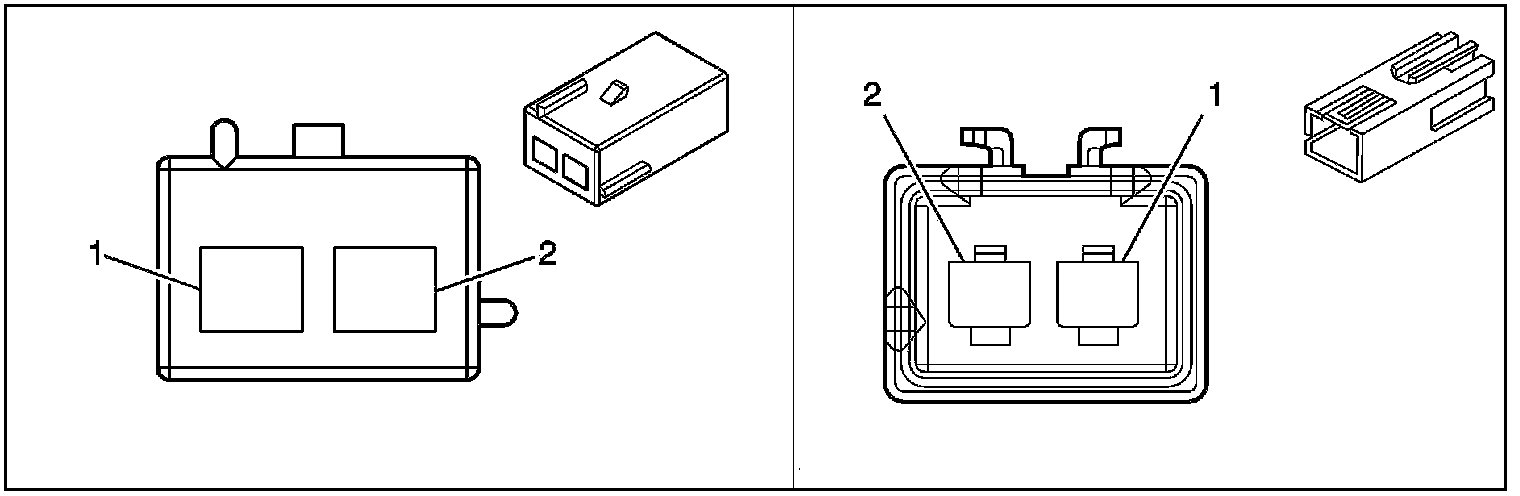

Inline Harness Connector End Views

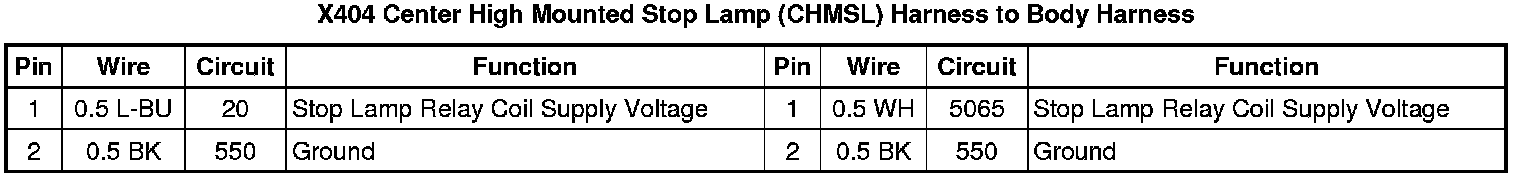

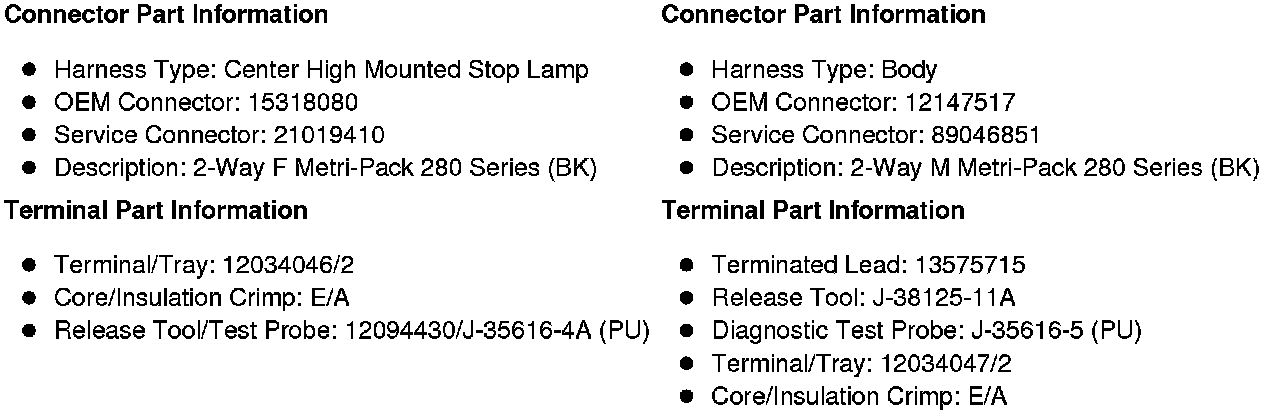

X404 Center High Mounted Stop Lamp (CHMSL) Harness to Body Harness
