Body Harness Routing - Right Rear Luggage Compartment

Harness Routing Views

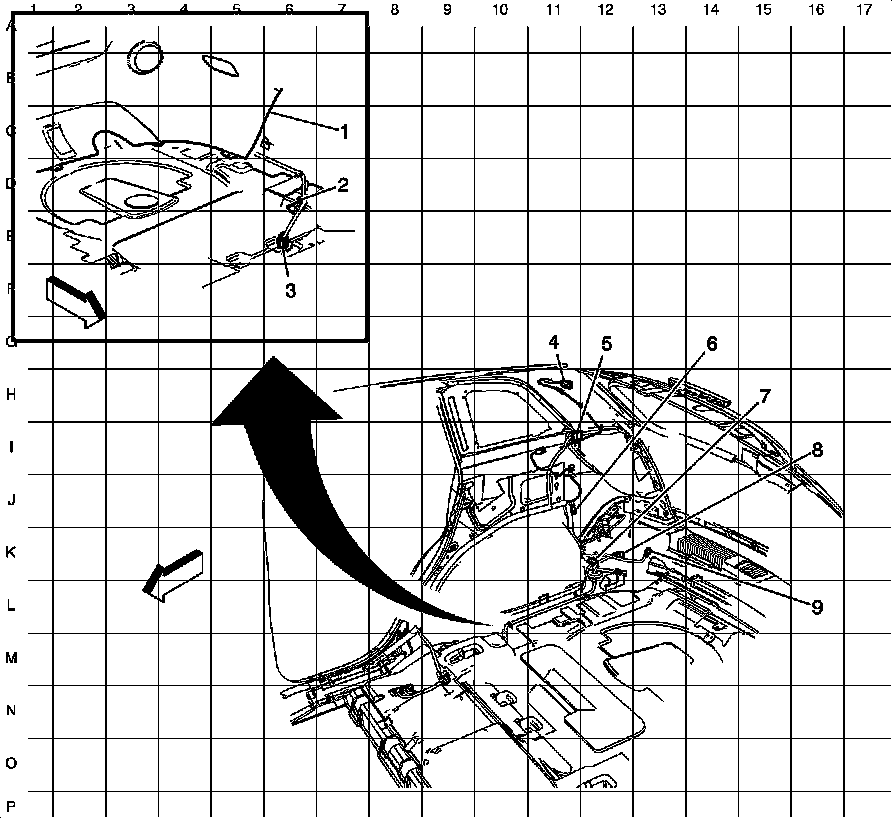

Body Harness Routing - Right Rear Luggage Compartment





1 - Rear Fascia

2 - X406

3 - X408

4 - X414 (CF5)

5 - X407

6 - X410

7 - X430 (V92)

8 - X432 (V92)

9 - G402
