Exterior Lights Schematics




Exterior Lights Schematics

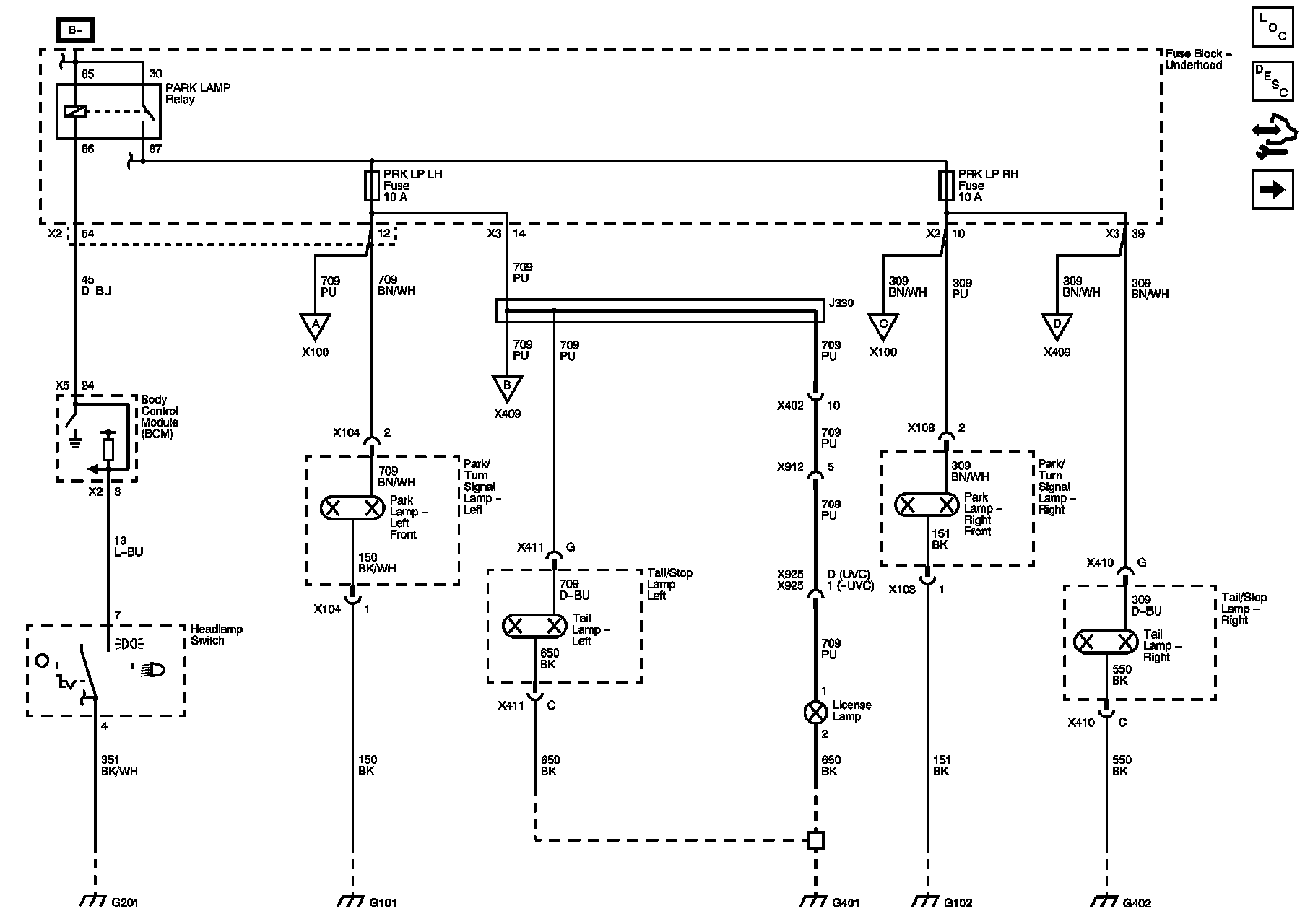

Park, License, and Tail Lamps

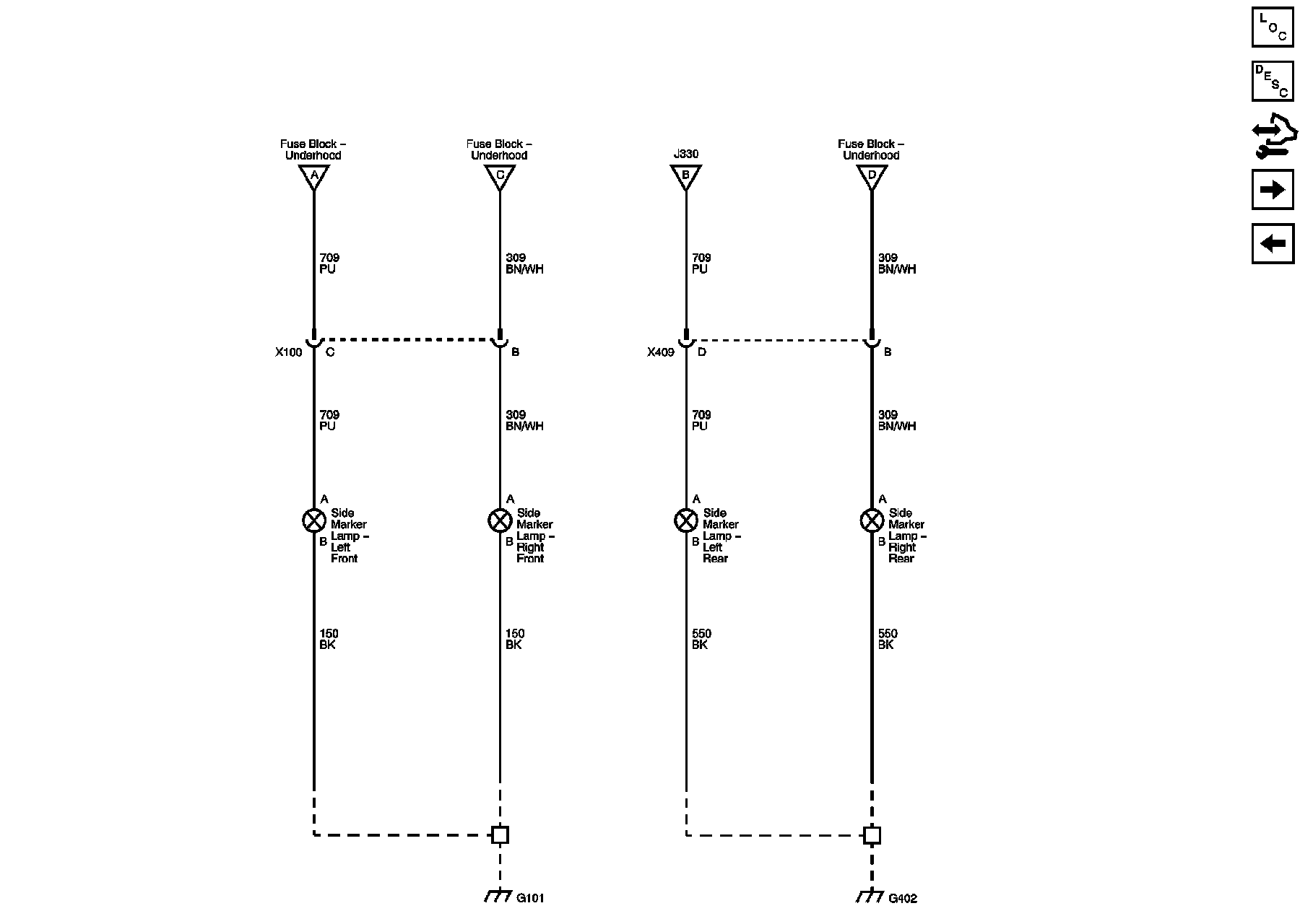

Marker Lamps

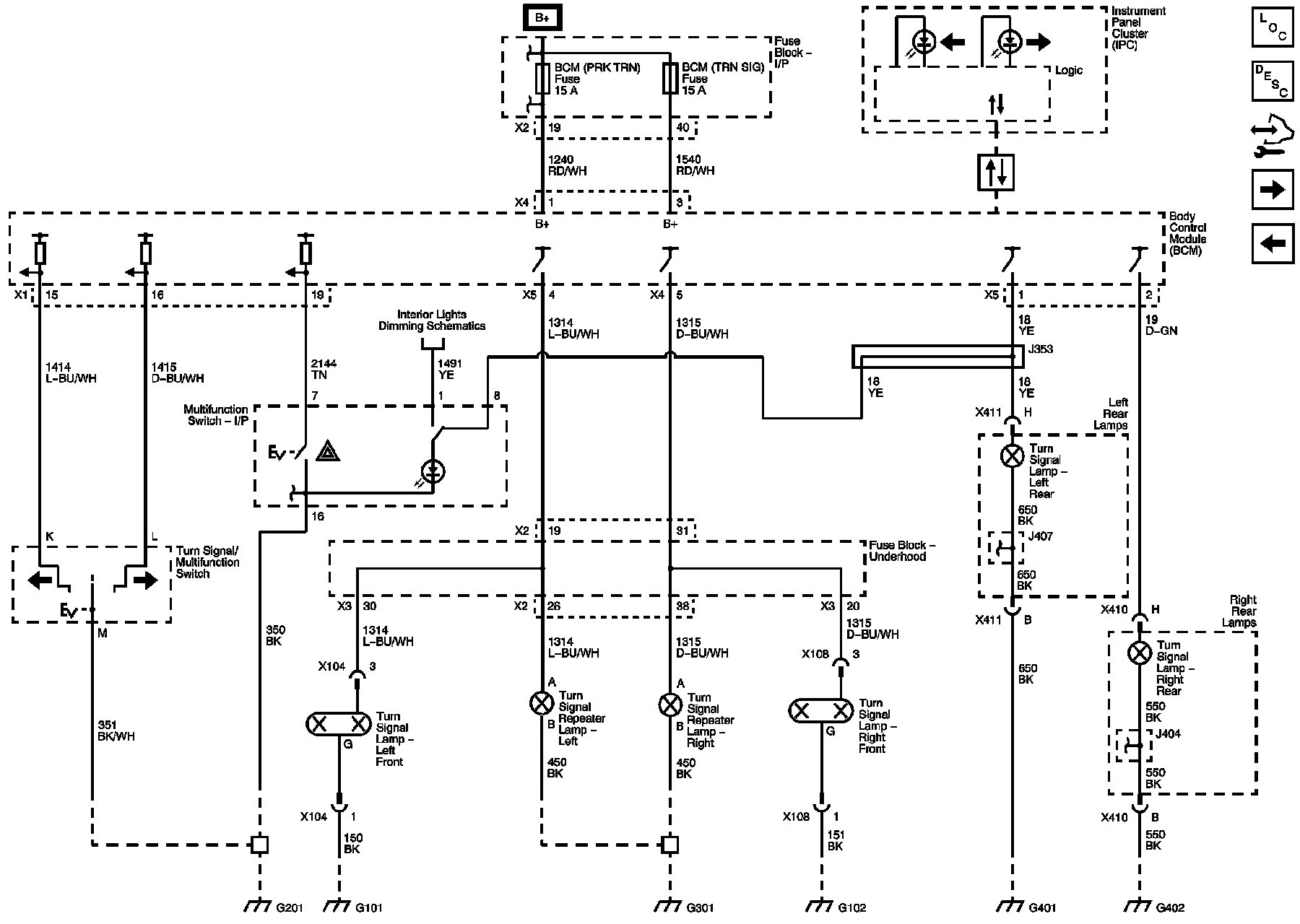

Turn Signal/Hazard Lamps

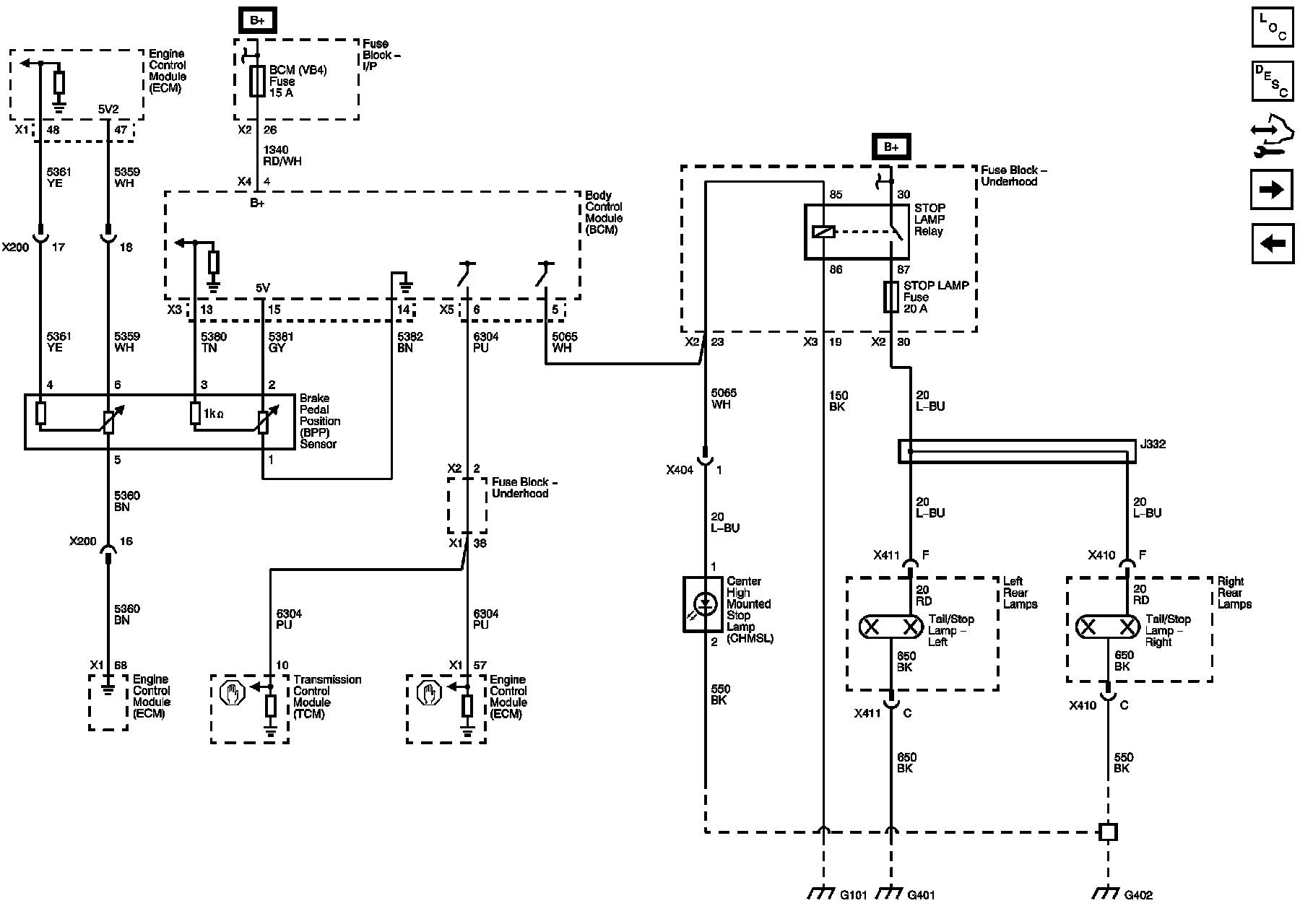

Stop Lamps

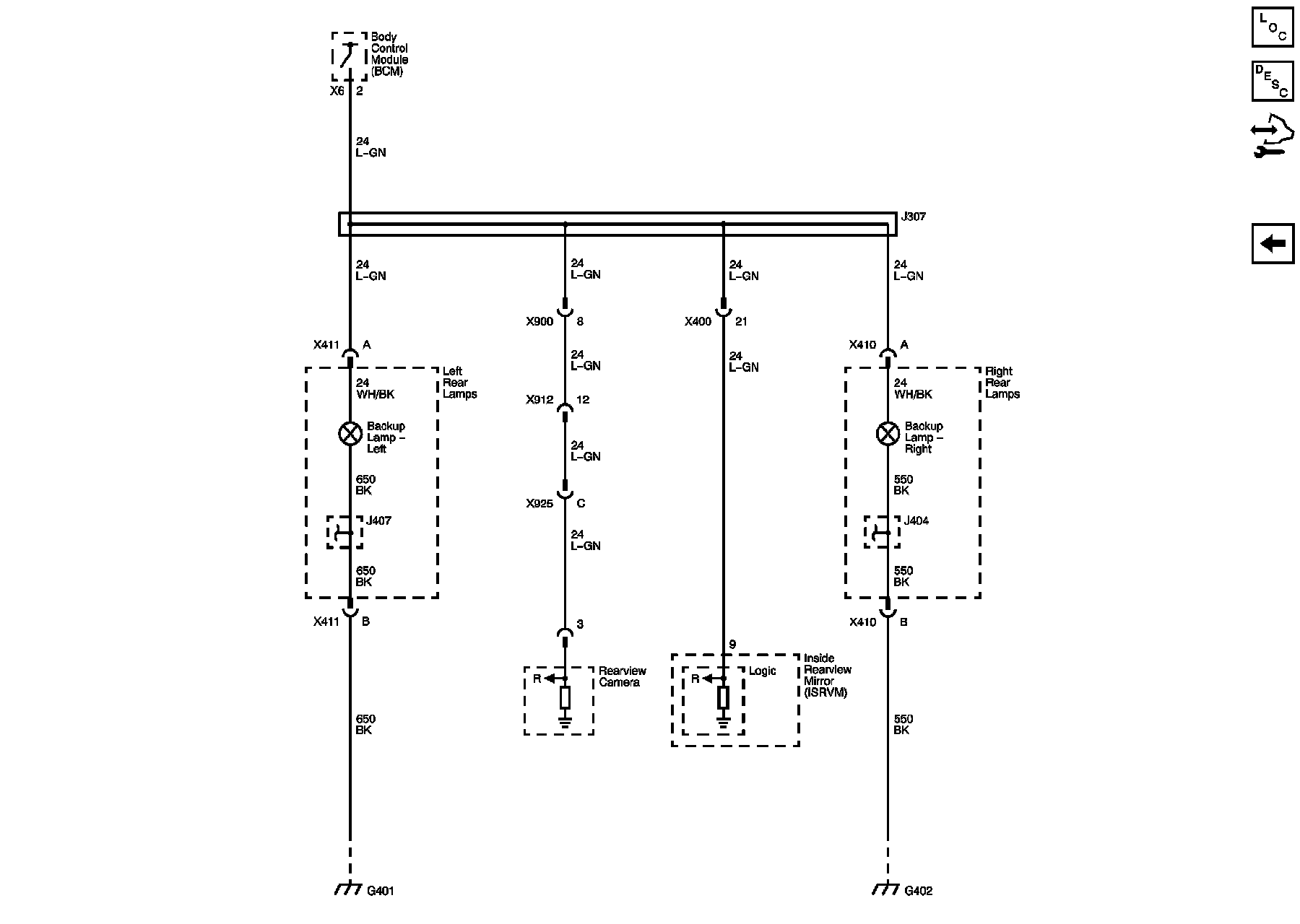

Backup Lamps
