Body Harness Routing - Front Engine Compartment




Harness Routing Views

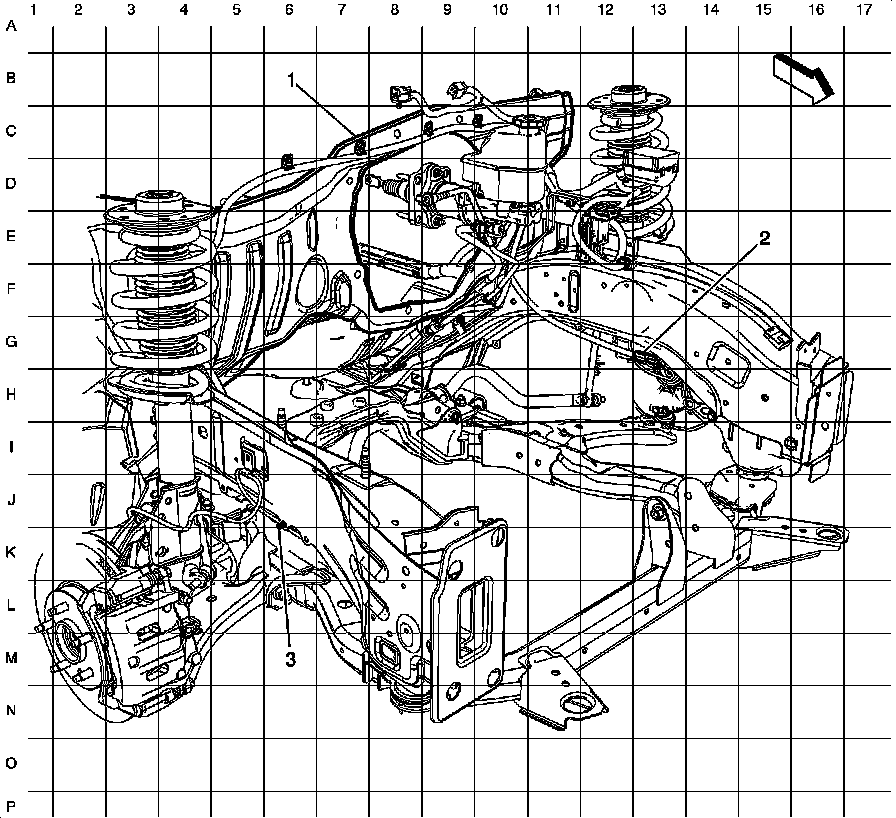

Body Harness Routing - Front Engine Compartment





1 - Dash Panel

2 - X131

3 - X134
