HVAC - Automatic




HVAC Schematics

Module Power, Ground, and Data Communications

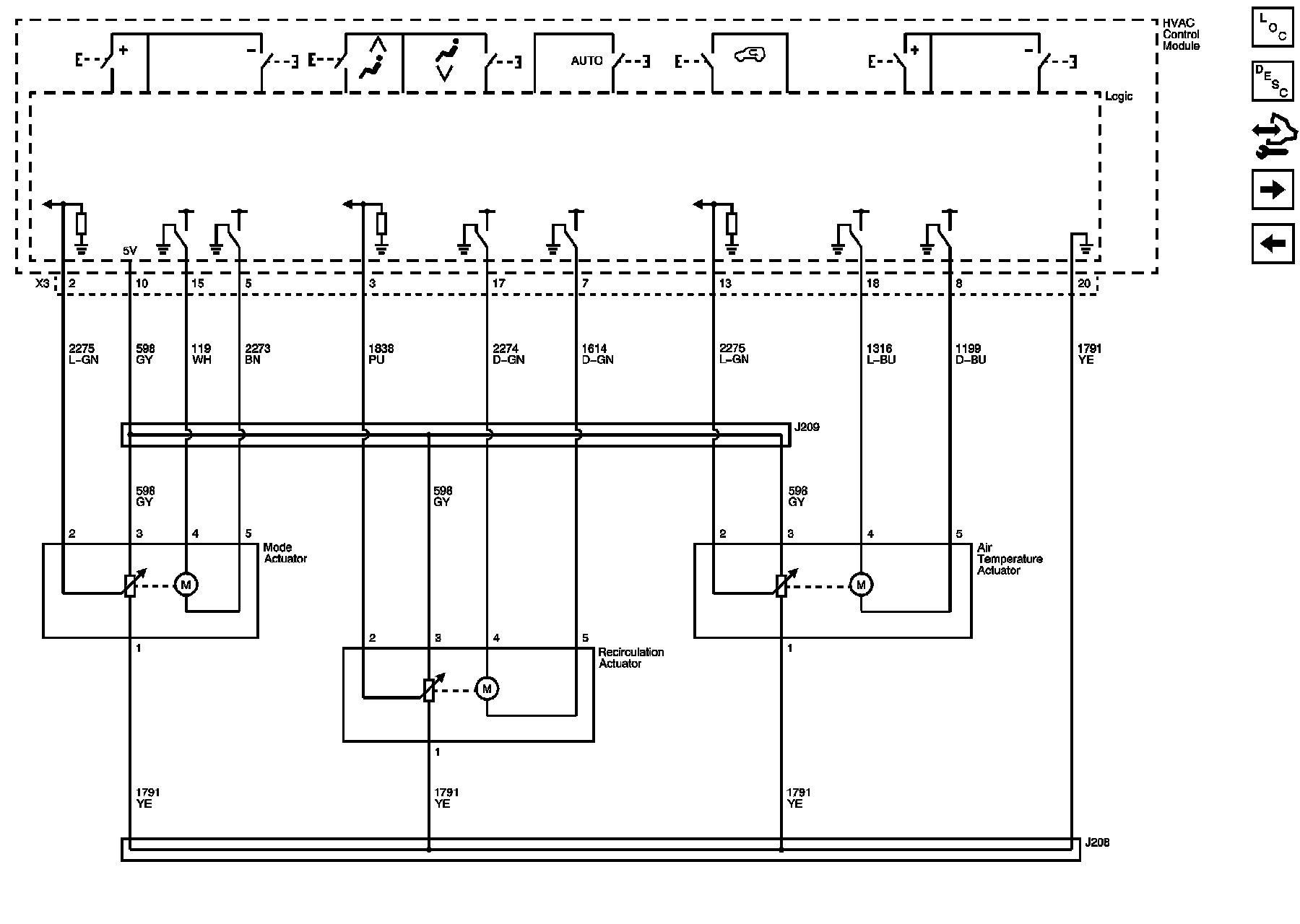

Mode Controls

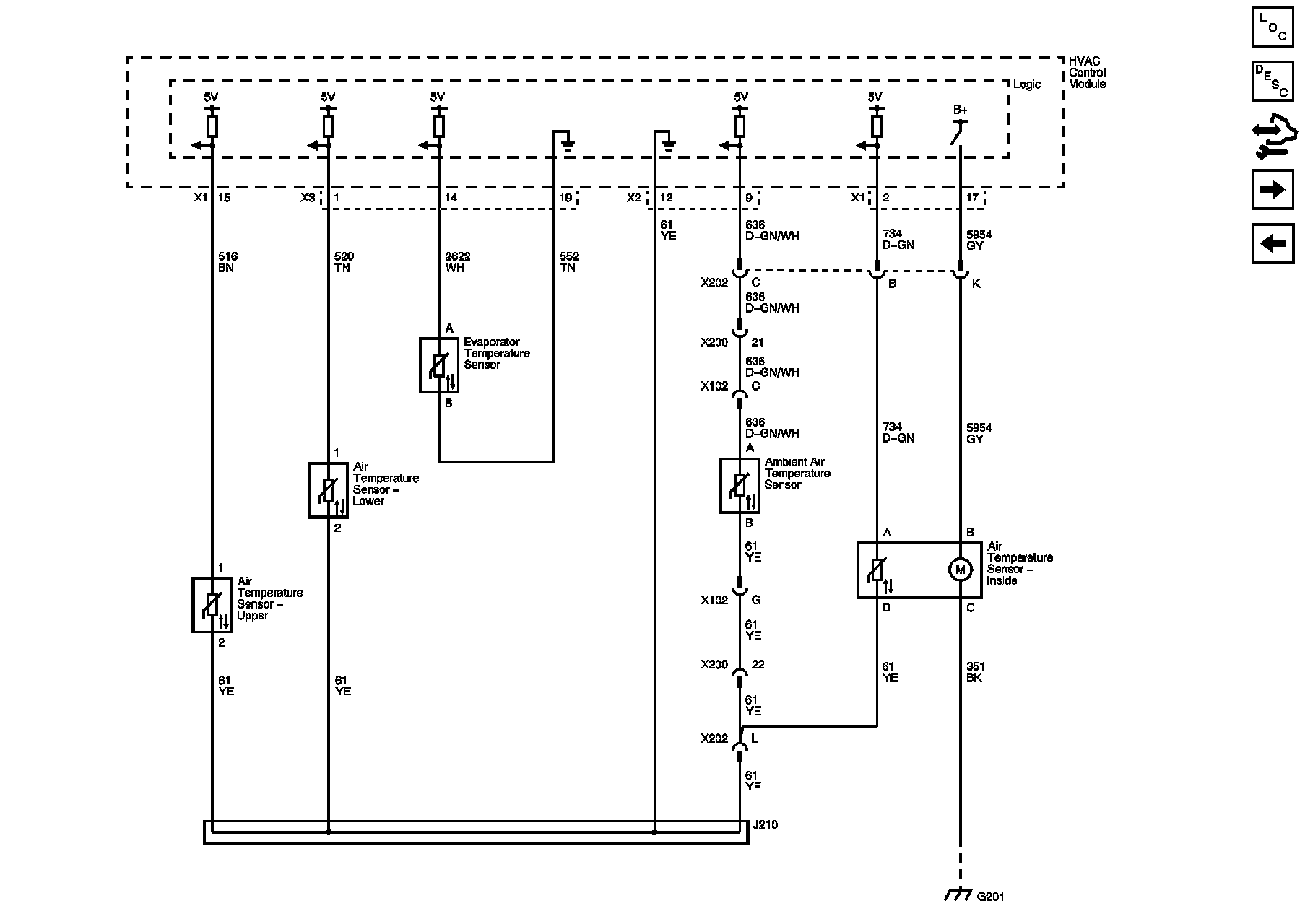

Data Sensors

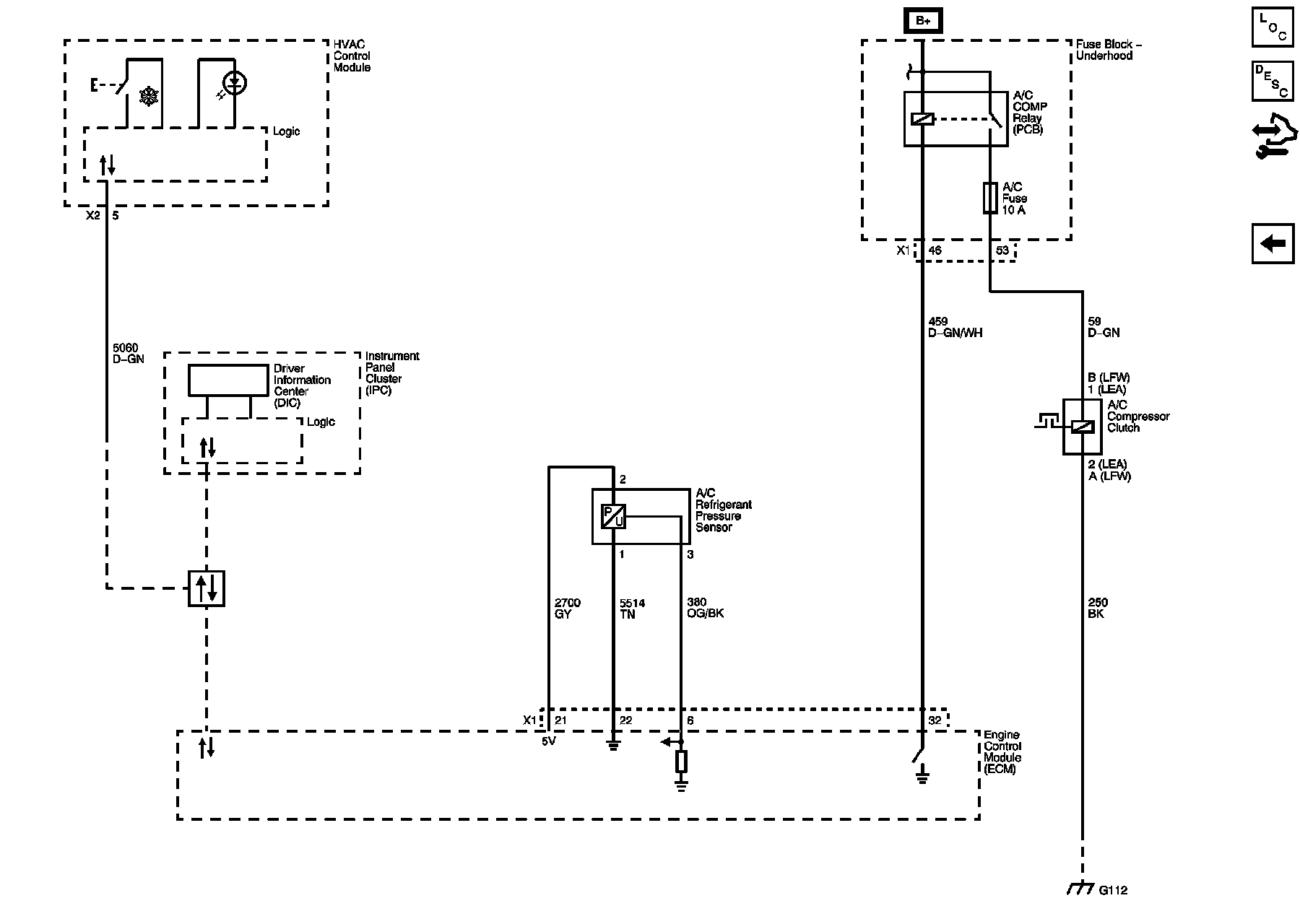

Compressor Controls
