Headlights/Daytime Running Lights (DRL) Schematics

Headlights/Daytime Running Lights (DRL) Schematics

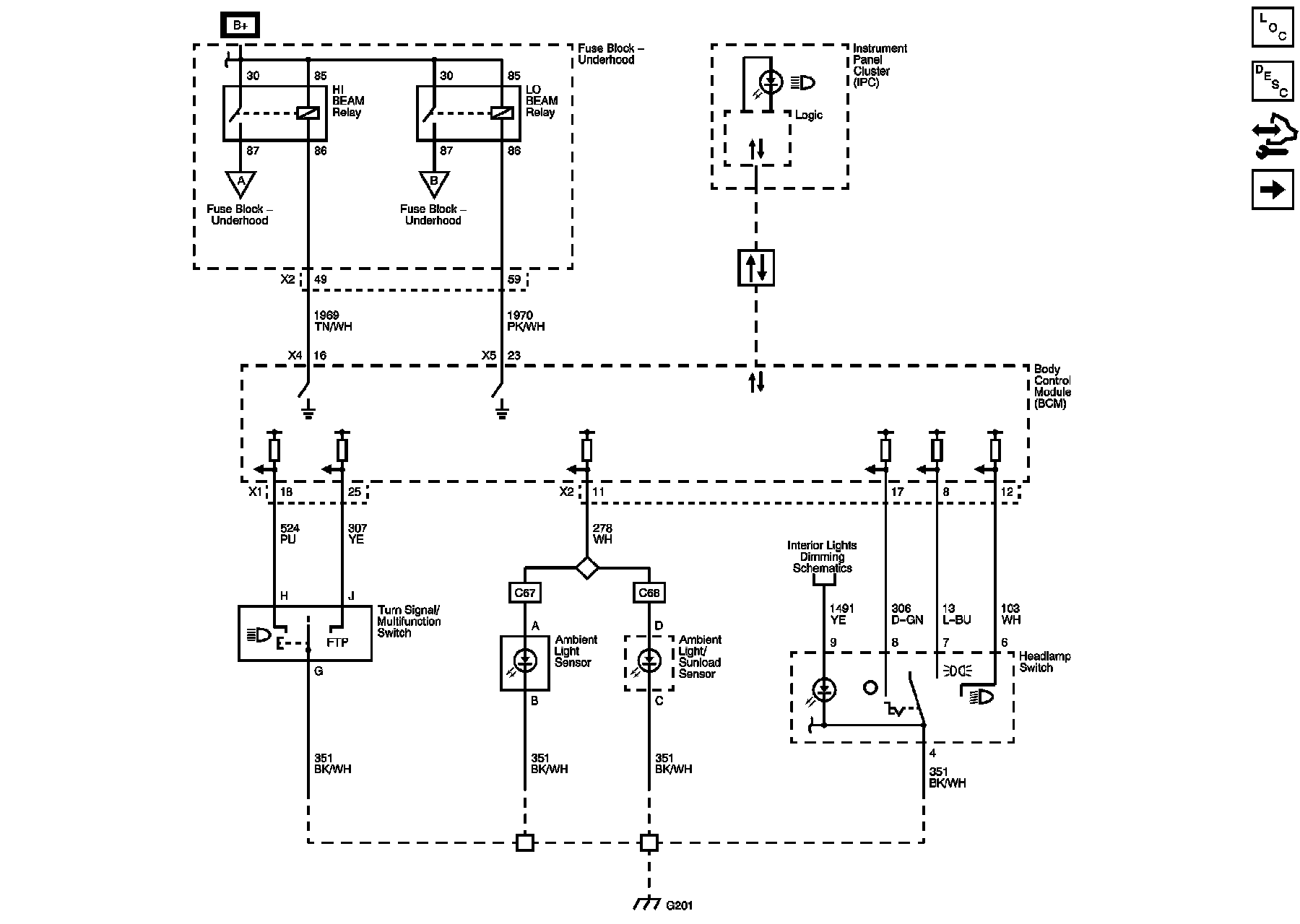

Headlamp Controls

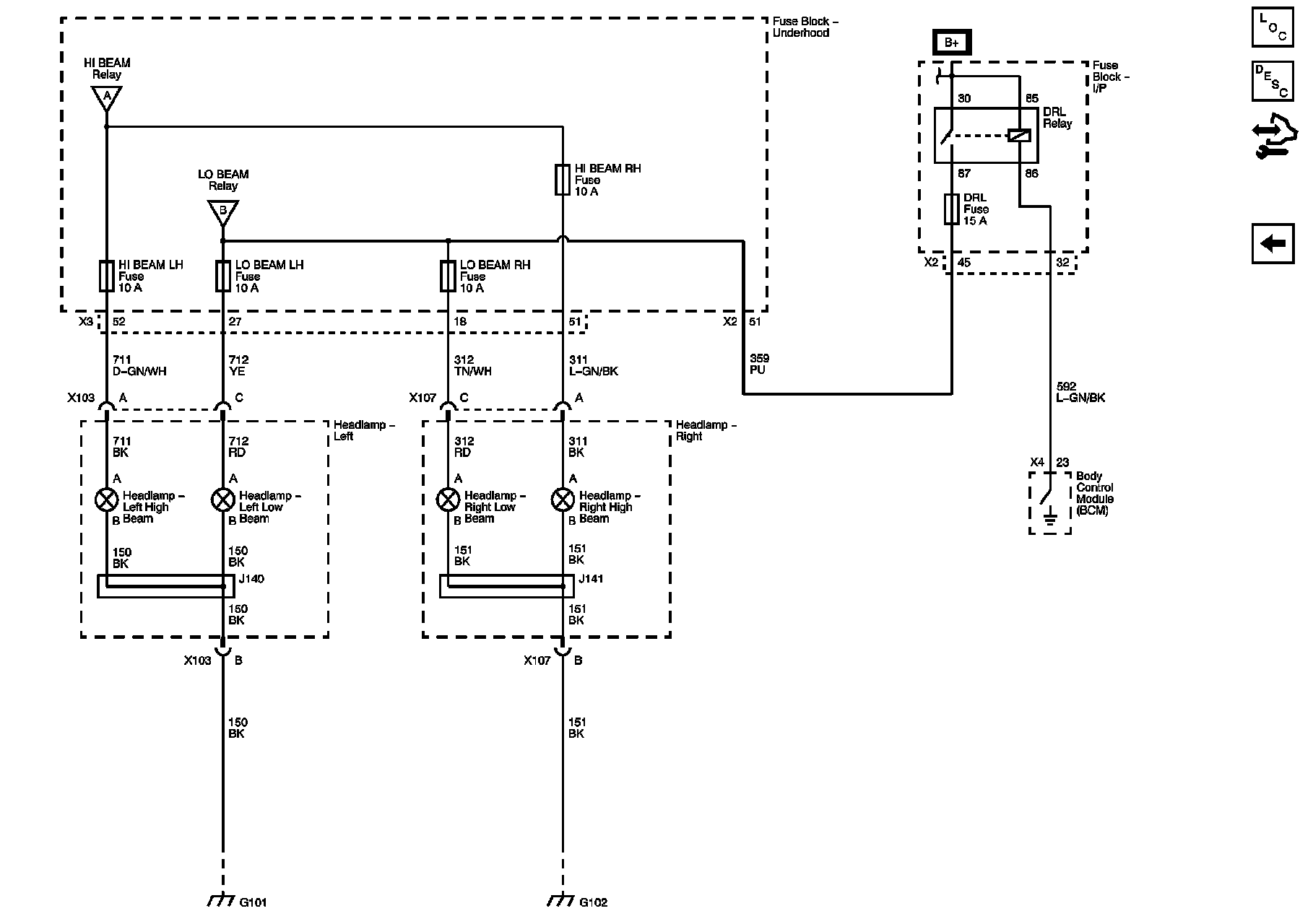

Headlamps and Daytime Running Lights
