Trim Height Specifications

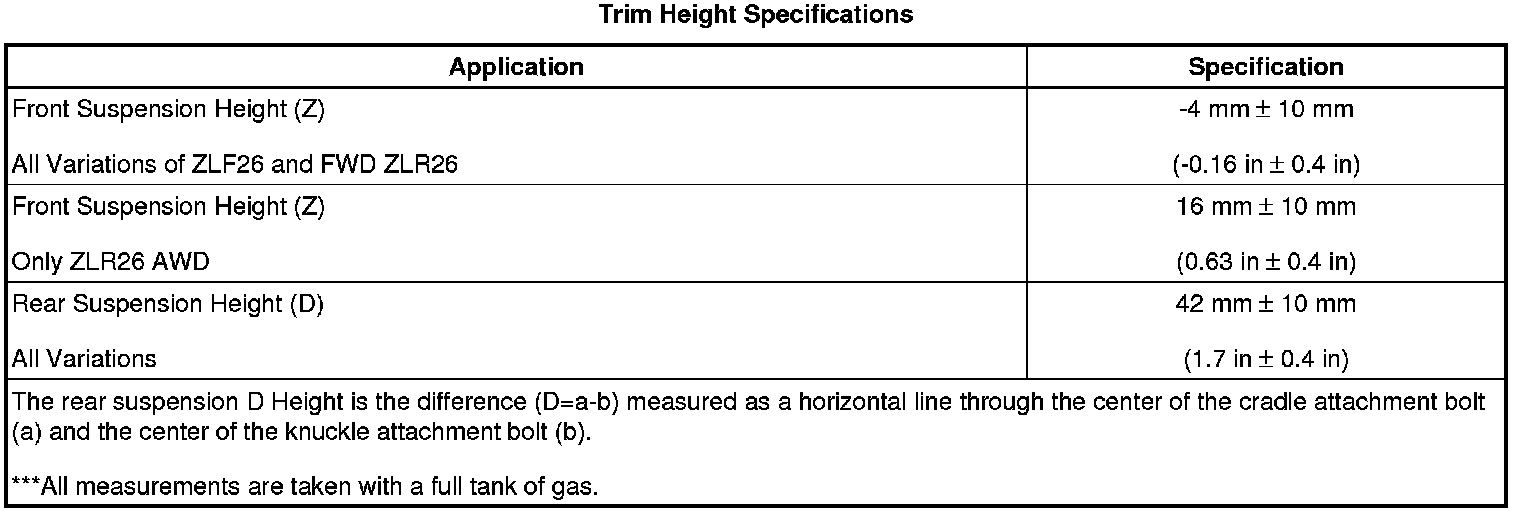

Trim Height Specifications

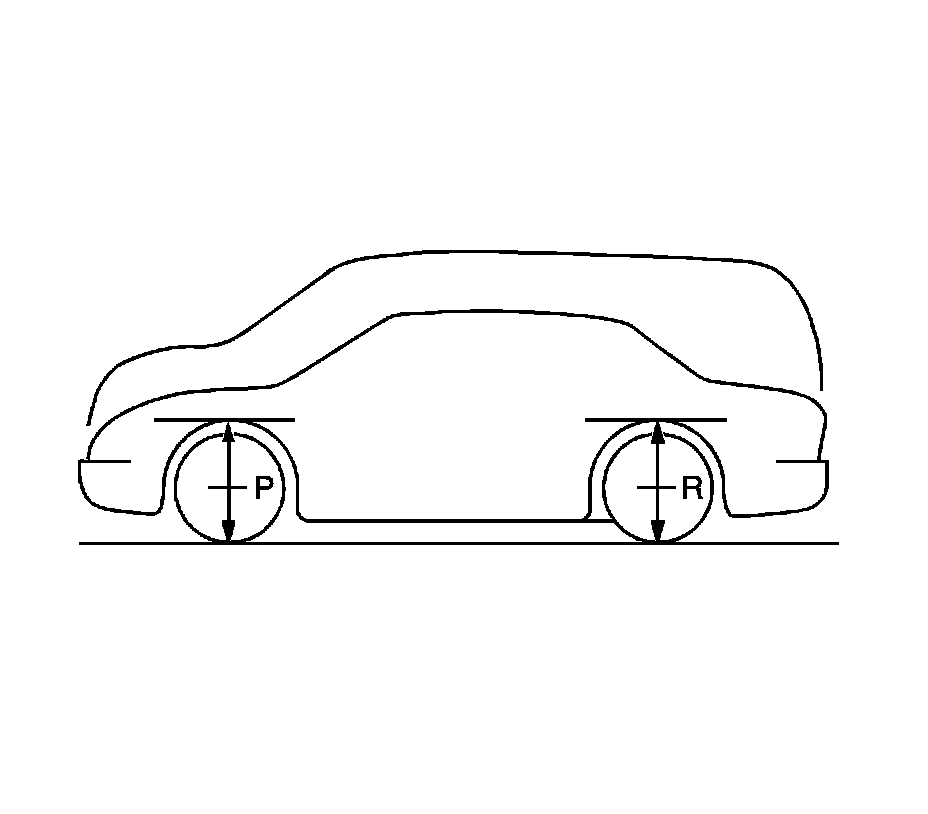

Measuring P and R Heights

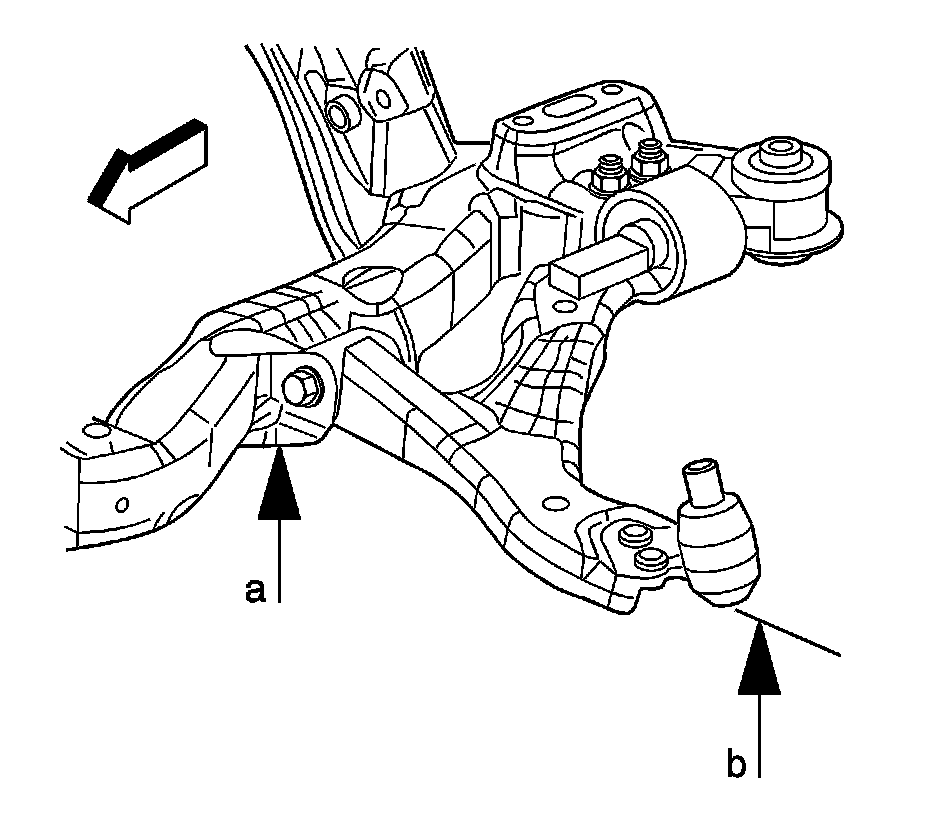

Measuring Z Height

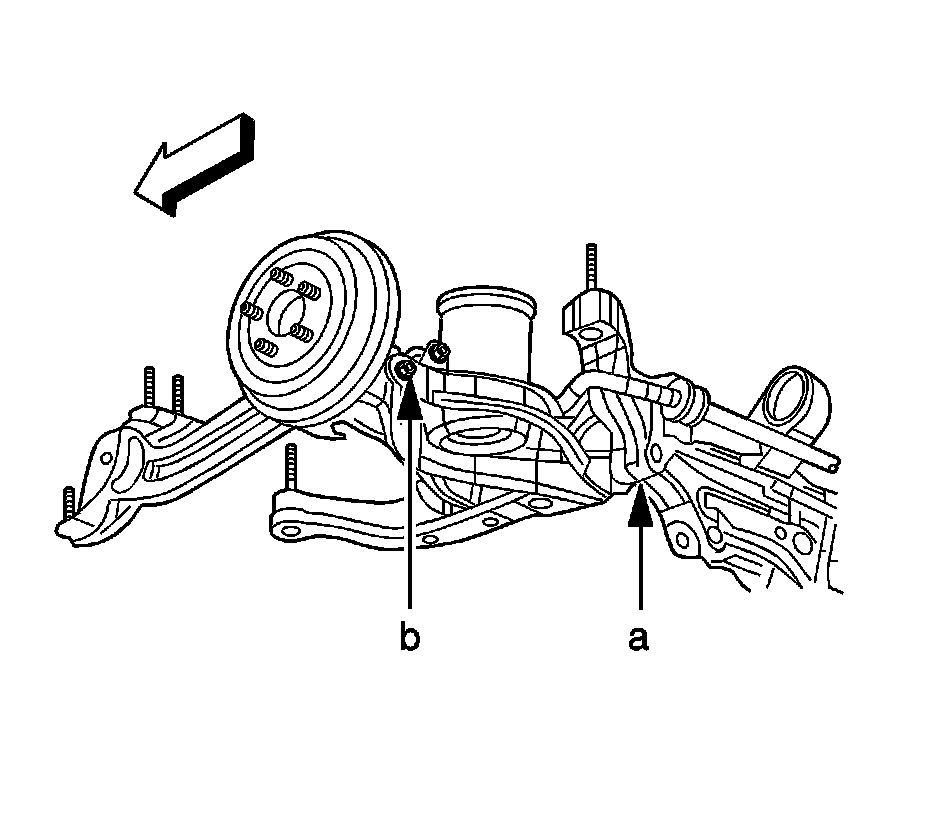

Measuring D Height





Trim Height Inspection
