Home >> Chevy Truck >> 2012 >> Captiva Sport AWD L4-2.4L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Overhaul >> 53. Control Valve Body Assembly Disassemble (Gen 2)

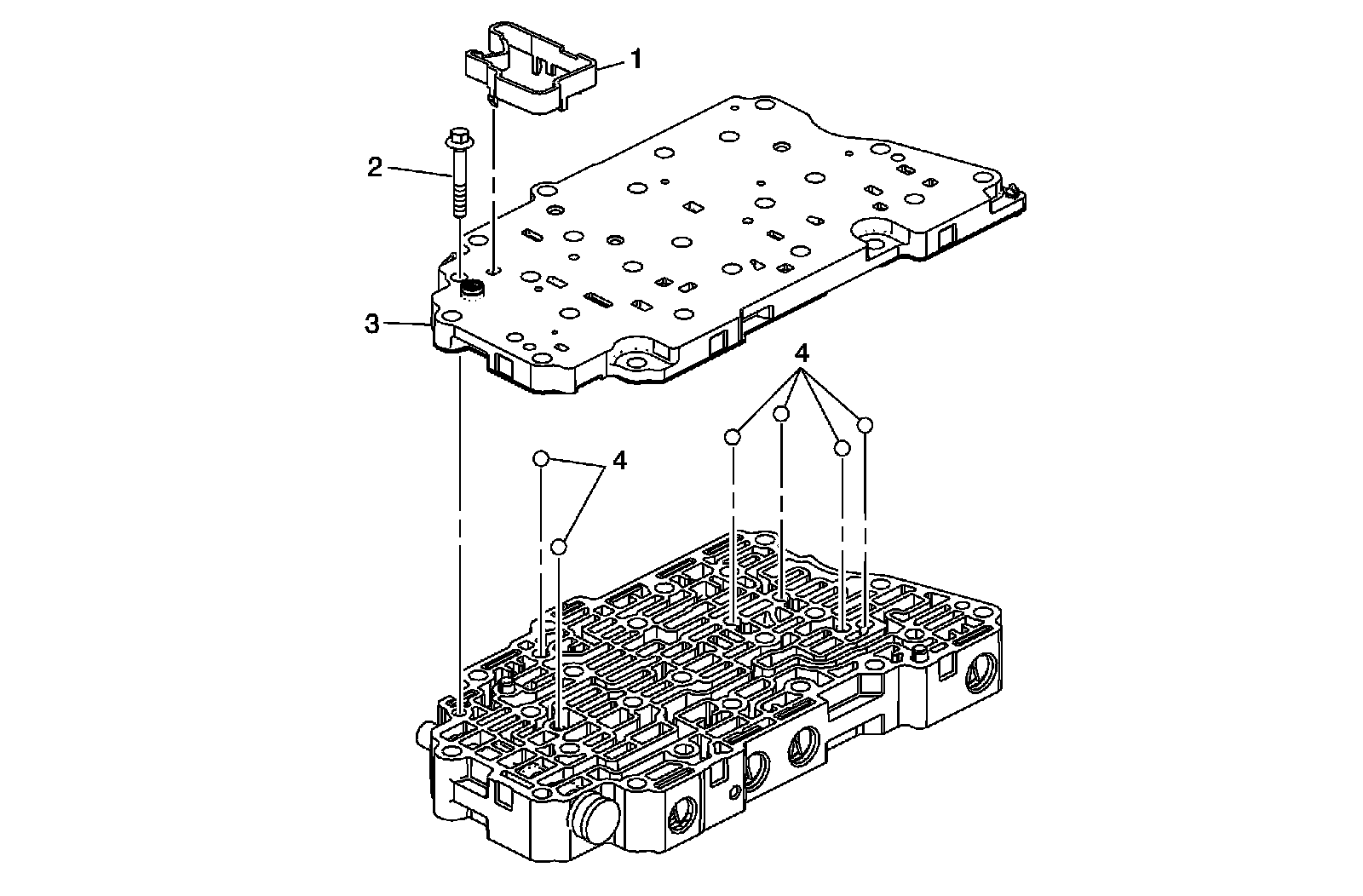

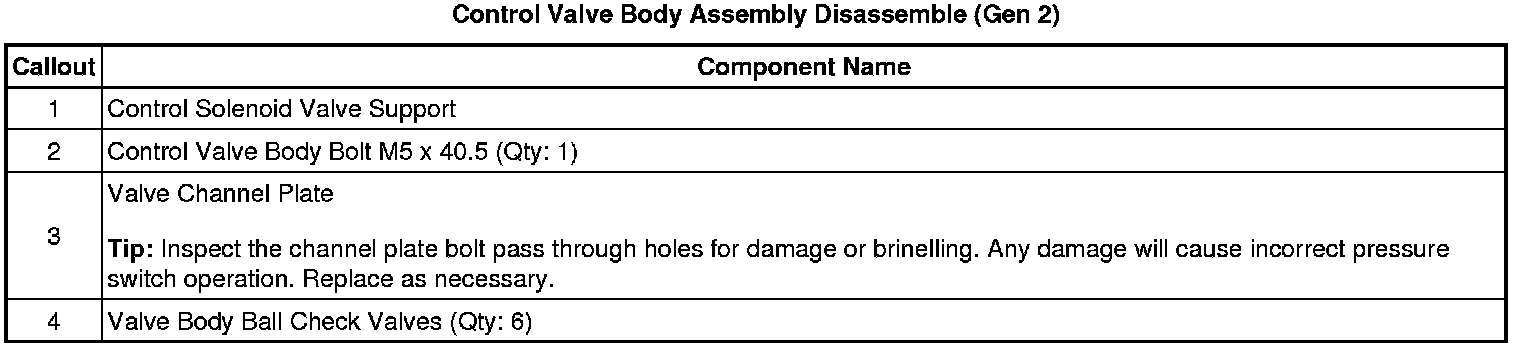

53. Control Valve Body Assembly Disassemble (Gen 2)




Control Valve Body Assembly Disassemble (Gen 2)
