B1530
DTC B1530
Diagnostic Instructions
* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.
DTC Descriptor
DTC B1530
- Discard Passenger Presence System

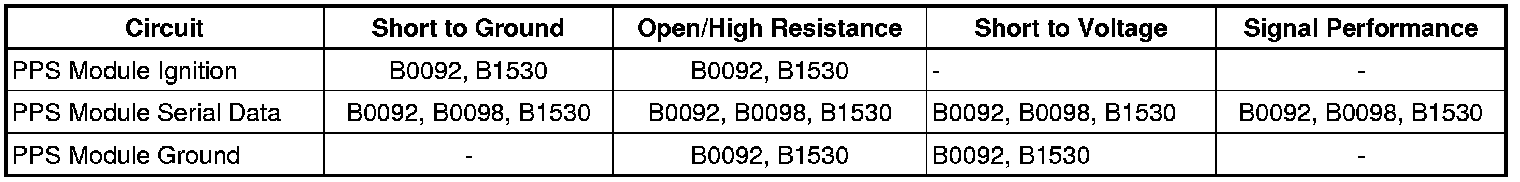

Diagnostic Fault Information
Circuit/System Description
When the ignition is turned ON, the inflatable restraint sensing and diagnostic module (SDM) performs tests to diagnose critical malfunctions within the Passenger Presence System (PPS). When the SDM has completed the power-up mode, the SDM will establish communication with the PPS module. The SDM will increase a fault counter with each ignition cycle that a fault exists with the PPS. The SDM will lock out the PPS after a predetermined ignition cycle count maximum has been reached.
Conditions for Running the DTC
Ignition voltage is between 9-16 volts.
Conditions for Setting the DTC
* The PPS module has a current fault.
* The PPS module fault counter in the SDM has reached 127 counts.
Action Taken When the DTC Sets
* The SDM disables the passenger instrument panel air bag deployment loop.
* The SDM requests the instrument panel cluster (IPC) to illuminate the AIR BAG indicator.
* The SDM locks out the malfunctioning PPS module.
Conditions for Clearing the DTC
* The PPS module has been replaced.
* The SDM has been replaced.
Diagnostic Aids
Important: DTC B0092 or DTC B0098 will set if the PPS module has a malfunction, and has set any one of the following DTCs 023, 024, 063, 064, or 065. When DTC B0092 or DTC B0098 is present, it is important to check the PPS module for any current DTC. Refer to Passenger Presence System Flash Code Procedures Component Tests and General Diagnostics. If the PPS module has any current DTC, address those DTC before performing this diagnostic procedure.
Any repair performed on the original PPS module will not clear DTC B1530.
Reference Information
Schematic Reference
SIR Schematics [1][2]Air Bag Systems
Connector End View Reference
Component Connector End Views Connector End Views By Name
Description and Operation
SIR System Description and Operation Description and Operation
Electrical Information Reference
* Circuit Testing Circuit Testing
* Connector Repairs Connector Repairs
* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections
* Wiring Repairs Wiring Repairs
Scan Tool Reference
Control Module References Control Module References for scan tool information
Circuit/System Testing
Important: When removing connectors inspect for damage or corrosion. Damage or corrosion in the following requires repair or replacement of the affected component/connector.
* PPS module
* SDM
* PPS module wiring harness connector
* SDM wiring harness connector
1. Ignition ON, observe the function of the passenger air bag ON and OFF indicators. The passenger air bag ON and OFF indicators should illuminate.
• If the passenger air bag ON/OFF status indicators do not illuminate refer to Air Bag Indicator Circuit Malfunction (Driver) Air Bag Indicator Circuit Malfunction (Driver)Air Bag Indicator Circuit Malfunction (Passenger) Air Bag Indicator Circuit Malfunction (Passenger).
2. Ignition OFF, disconnect the harness connector at the PPS module.
3. Test for less than 1 ohm between the ground circuit terminal 5 and ground.
• If greater than the specified range, test the ground circuit for an open/high resistance
4. Ignition ON, verify that a test lamp illuminates between the ignition circuit terminal 9 and ground.
• If the test lamp does not illuminate, test the ignition circuit for a short to ground or an open/high resistance.
5. Disconnect the harness connector at the SDM.
6. Test for infinite resistance between the serial data link terminal 18 and ground.
• If less than the specified range, test the serial data link for a short to ground.
7. Test for less than 1 ohm between the PPS module serial data link terminal 18 and the SDM serial data link terminal 2.
• If greater than the specified range, test the serial data link for an open/high resistance.
8. Ignition ON, test for less than 1-volt between the PPS module serial data link terminal 18 and ground.
• If greater than the specified range, test the serial data link for a short to voltage.
9. If all circuits test normal, replace the PPS module.
Repair Instructions
Perform the Diagnostic Repair Verification Verification Tests after completing the diagnostic procedure.
Control Module References Control Module References for PPS module or SDM replacement, setup, and programming
