Tail/Stop and Turn Signal Lamp - Right

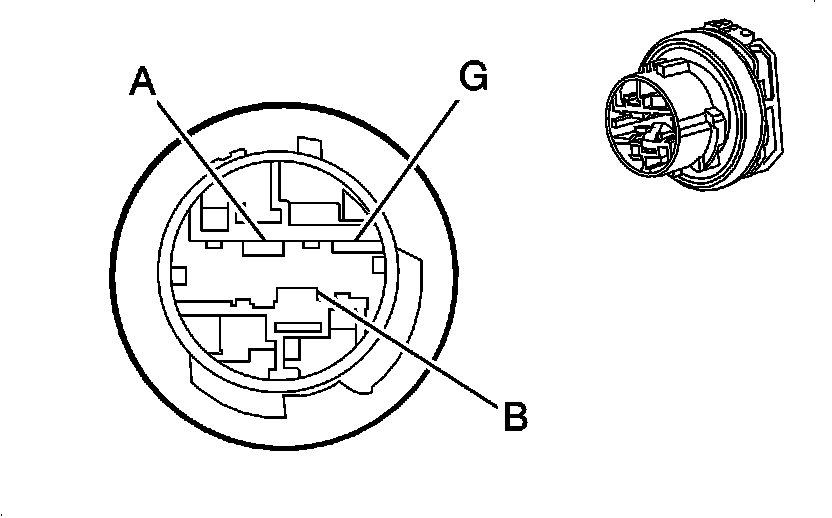

Component Connector End Views

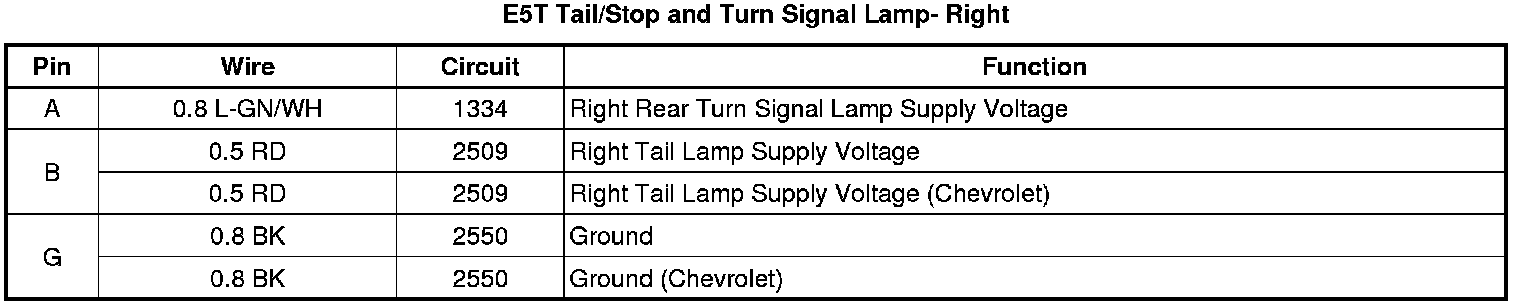

E5T Tail/Stop and Turn Signal Lamp- Right
