Connecting Rod Bearings Selection Specifications




Connecting Rod Bearings Selection Specifications

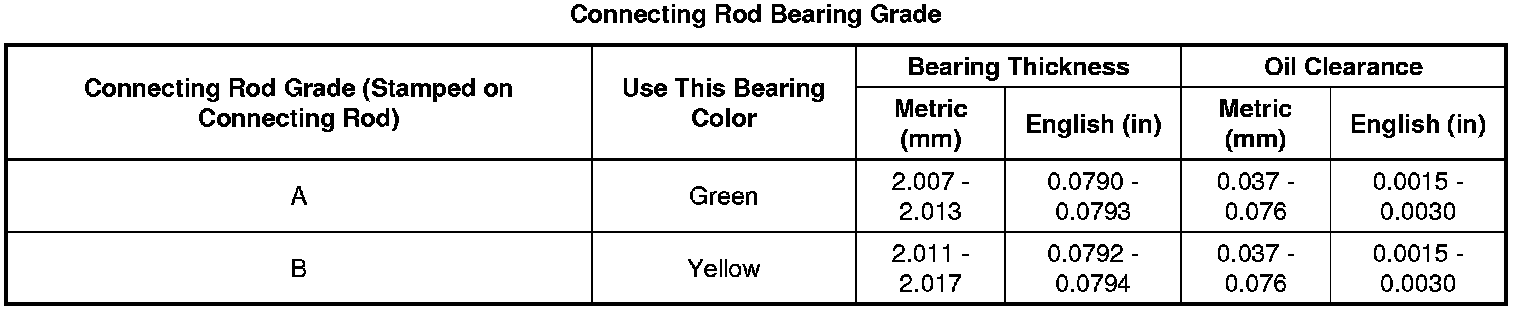

Connecting Rod Bearing Grade




1 - First Design
2 - Second Design
