Video System Schematics

Video System Schematics

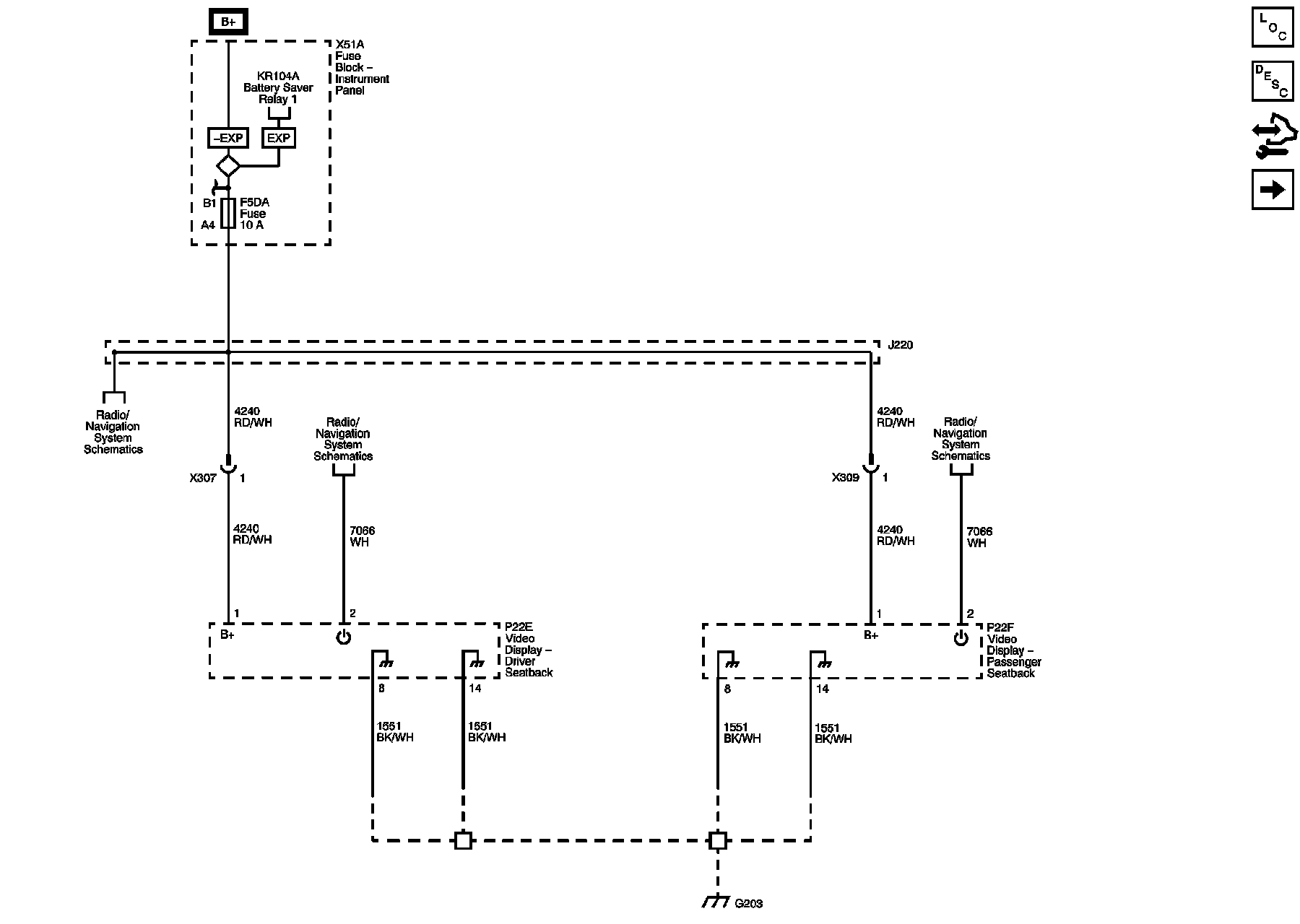

Rear Seat Display Power and Ground (UWG)

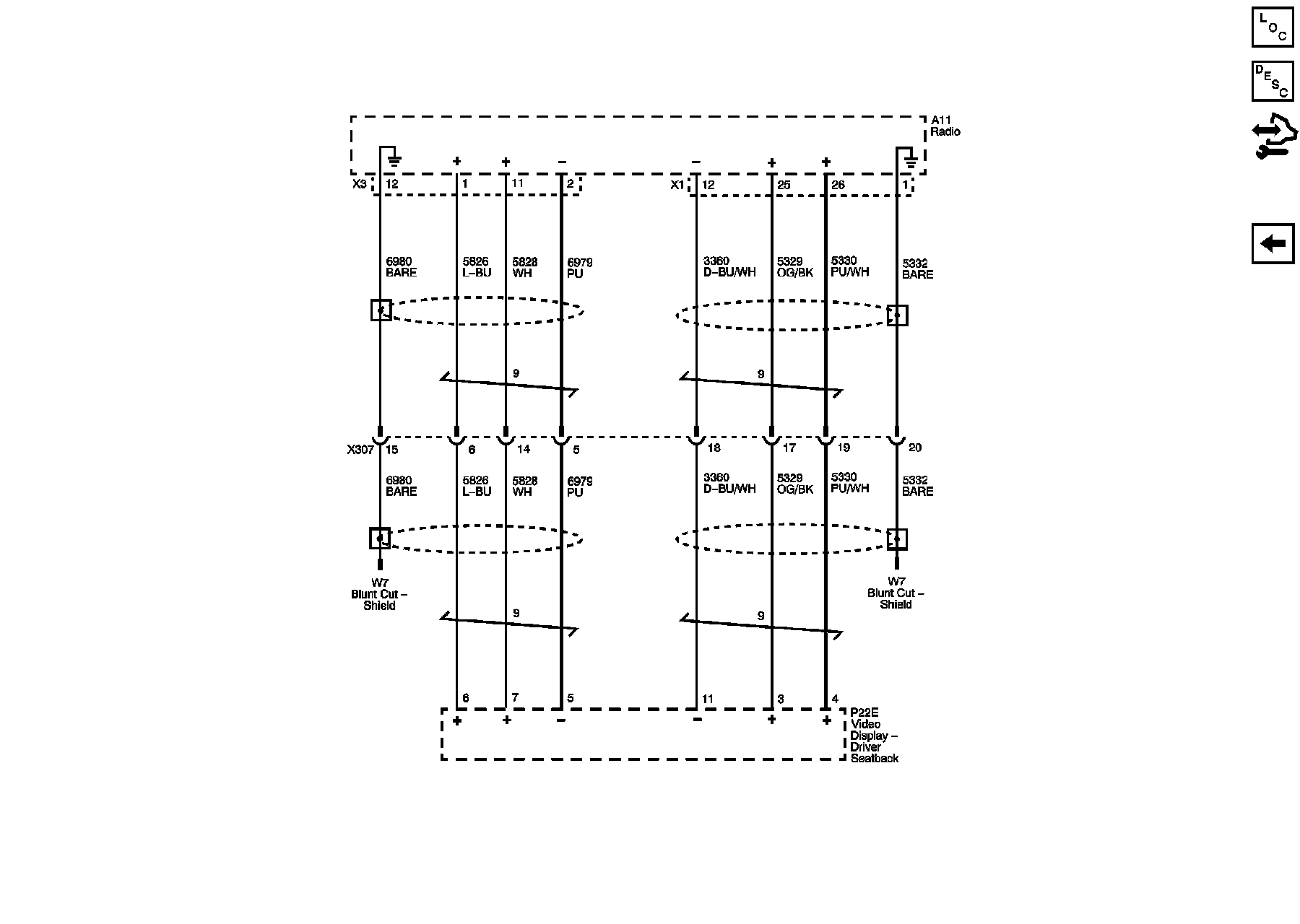

Rear Seat Video Signals (UWG)

Rear Seat Audio Signals (UWG)
