Evaporative Emission (EVAP) Canister Vent Solenoid Valve




Component Connector End Views

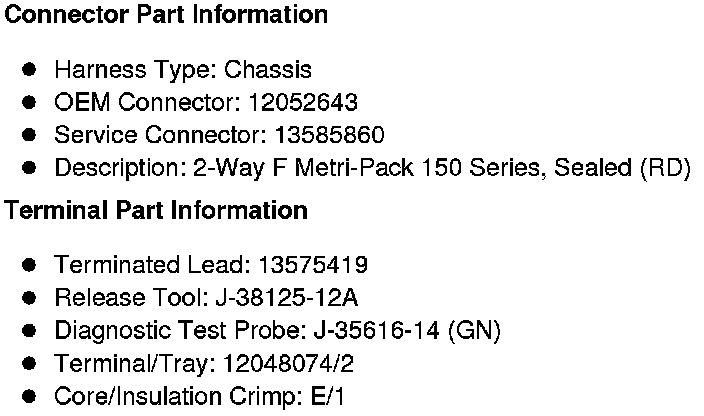

Evaporative Emission (EVAP) Canister Vent Solenoid Valve (LC8, LMF, LU3, L20 or L96)
