6L45/6L50/6L80/6L90 - Automatic Transmission
>>

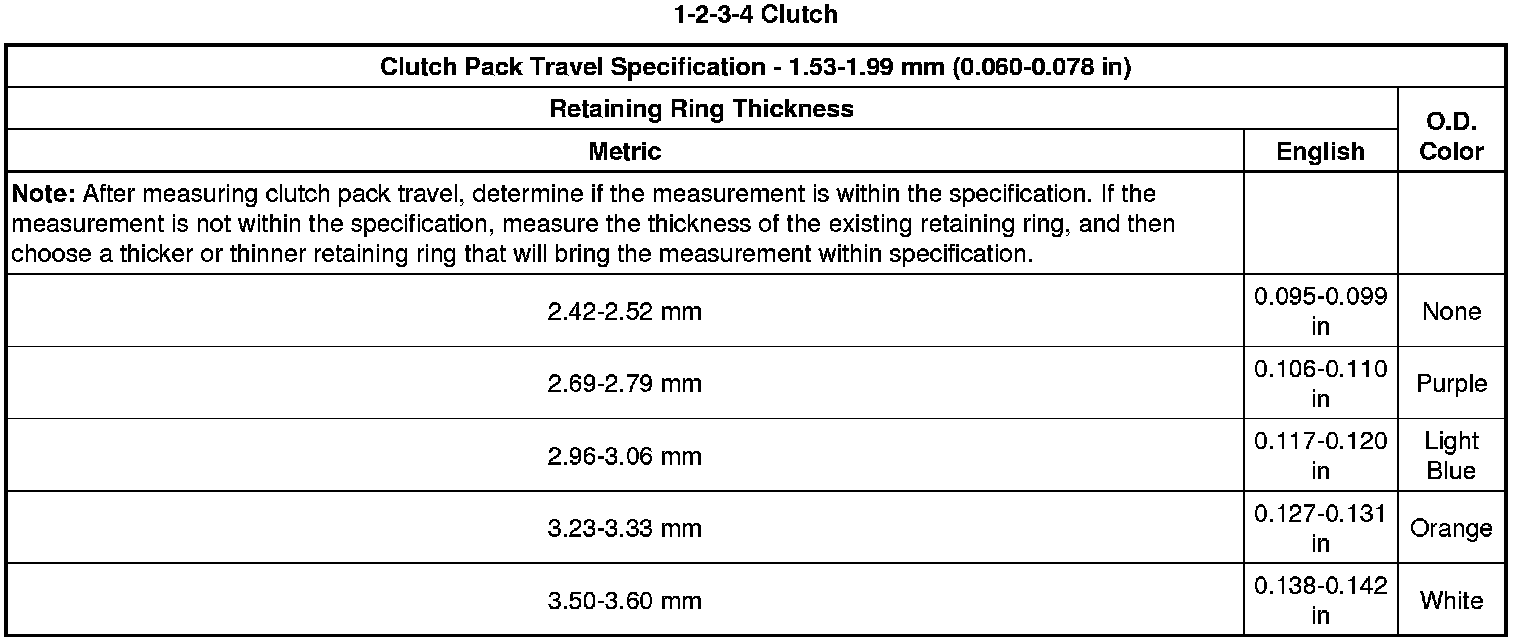

Clutch Backing Plate Retaining Ring Specifications (Gas)
Clutch Backing Plate Retaining Ring Specifications (Gas)
Clutch Backing Plate Retaining Ring Specifications (Gas)
