Wait To Start Light
>>
Wait to Start Lamp Relay
Wait to Start Lamp Relay
Component Connector End Views

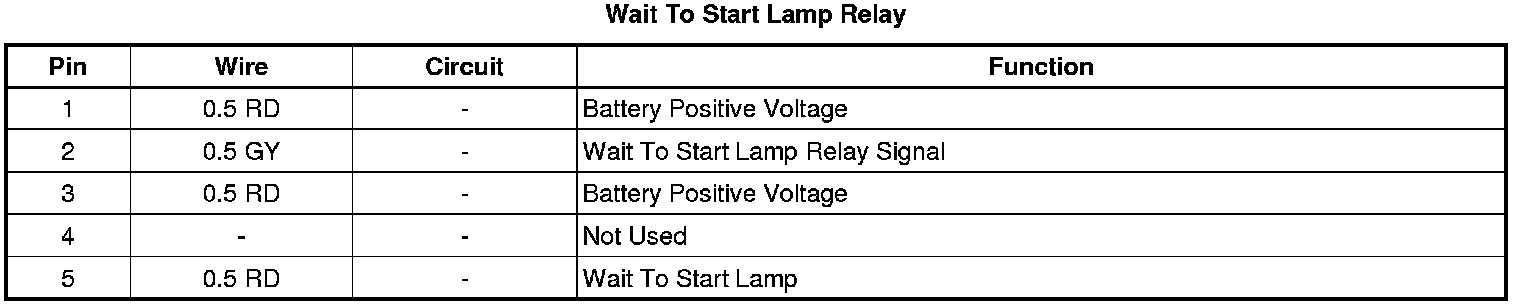

Wait To Start Lamp Relay
