Automatic Transmission Auxiliary Fluid Pump Control Module X1 (HP2)

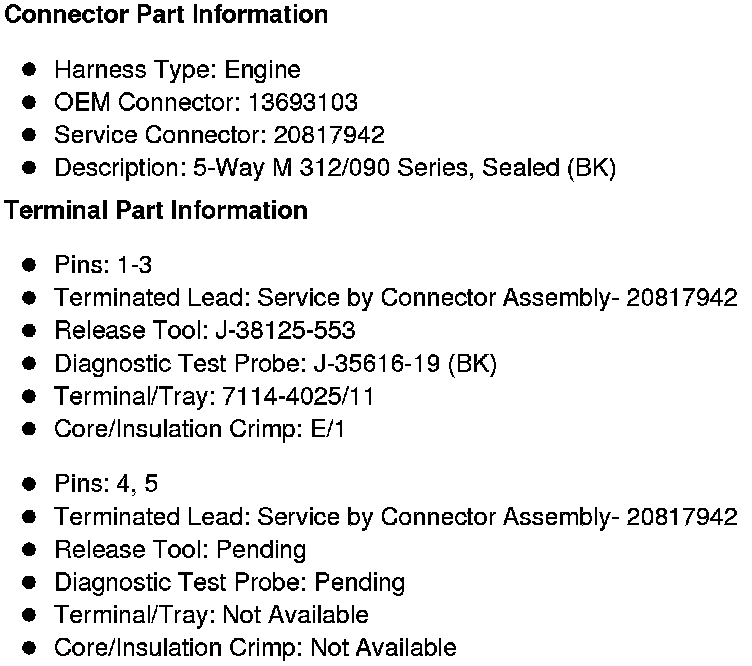

Component Connector End Views

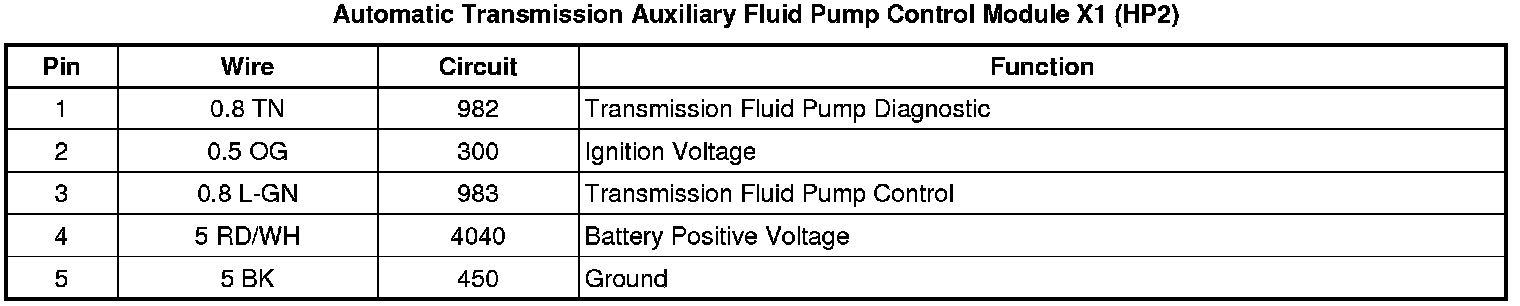

Automatic Transmission Auxiliary Fluid Pump Control Module X1 (HP2)
