System Components

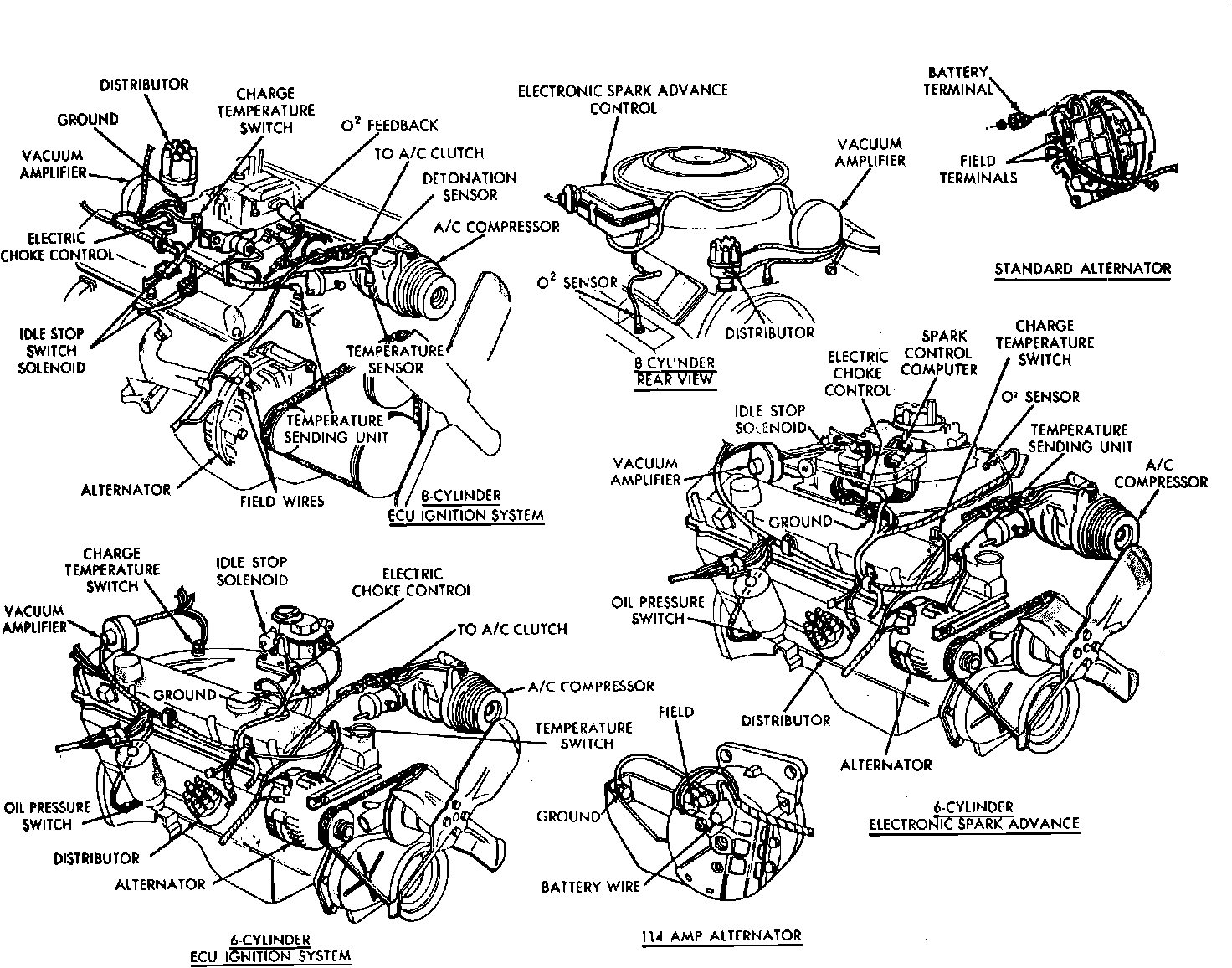

Component location 1982-83 RWD models exc. Imperial:

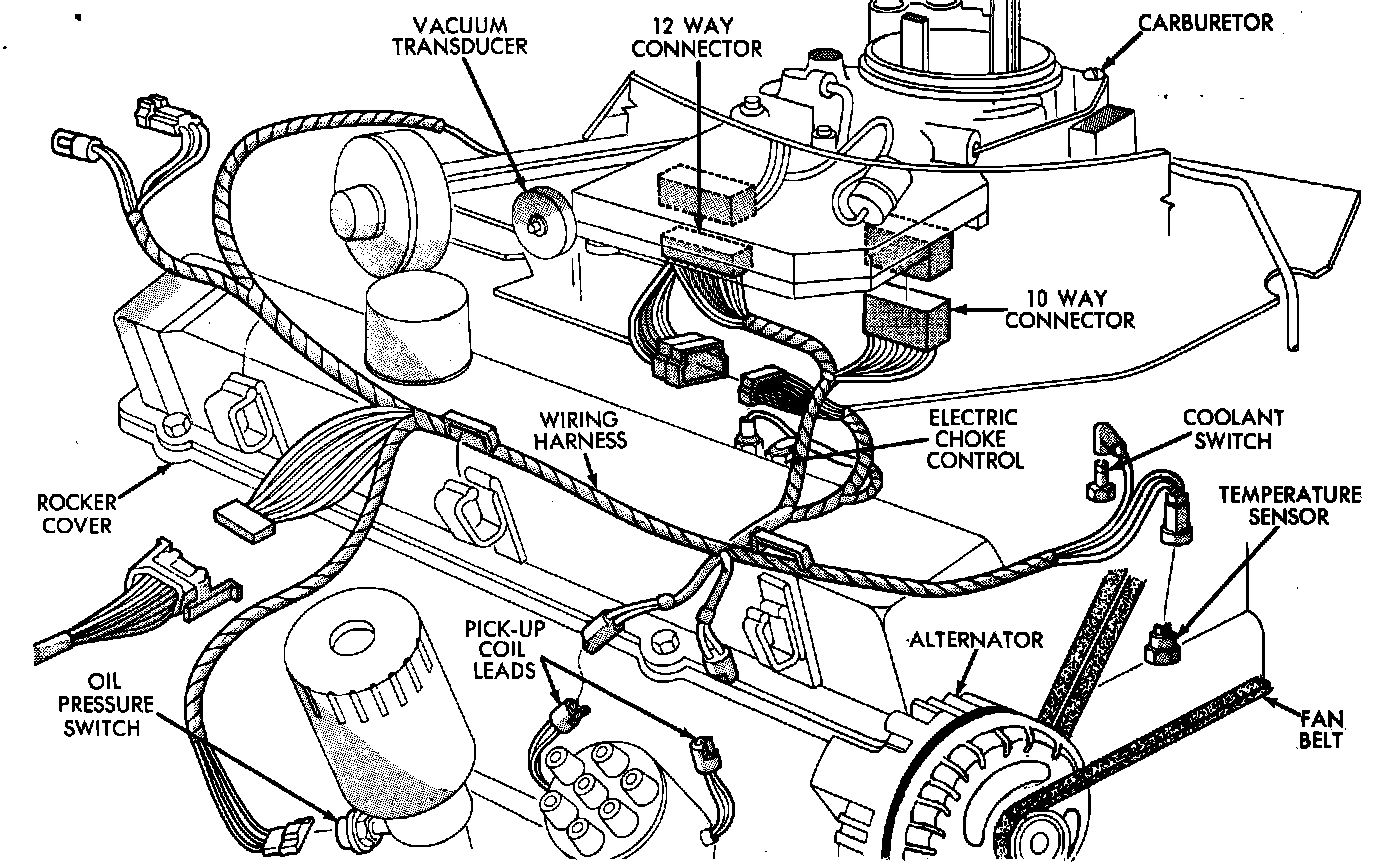

Electronic Feedback Carb. System Component location 6 cyl.:
