Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chrysler
>>
1982
>>
LeBaron L4-156 2.6L VIN D 2-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>

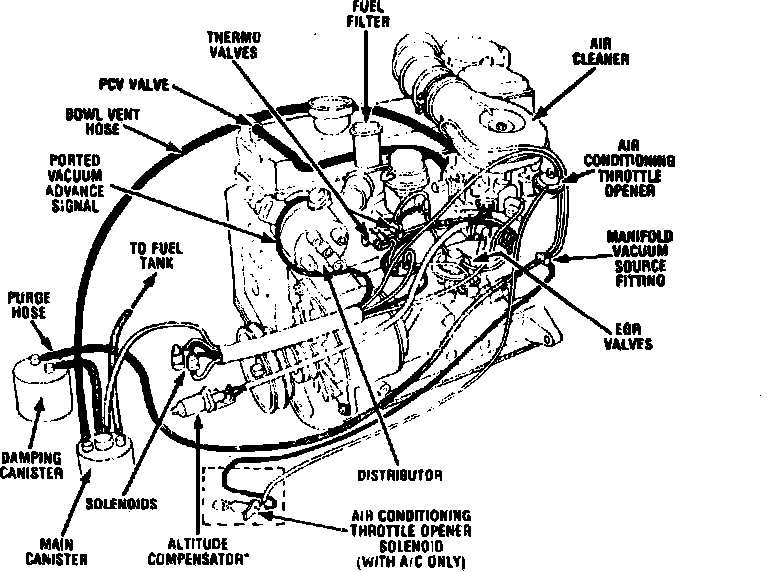

Vacuum and Vapor Hose Diagrams
>>
Emission Control Systems
>>
With Pulse Air System
With Pulse Air System
1982 4-156:
