Clearance and Design Specifications
Clearance and Design SpecificationsA-404, A-413, A-470, Torqueflite Automatic Transaxles

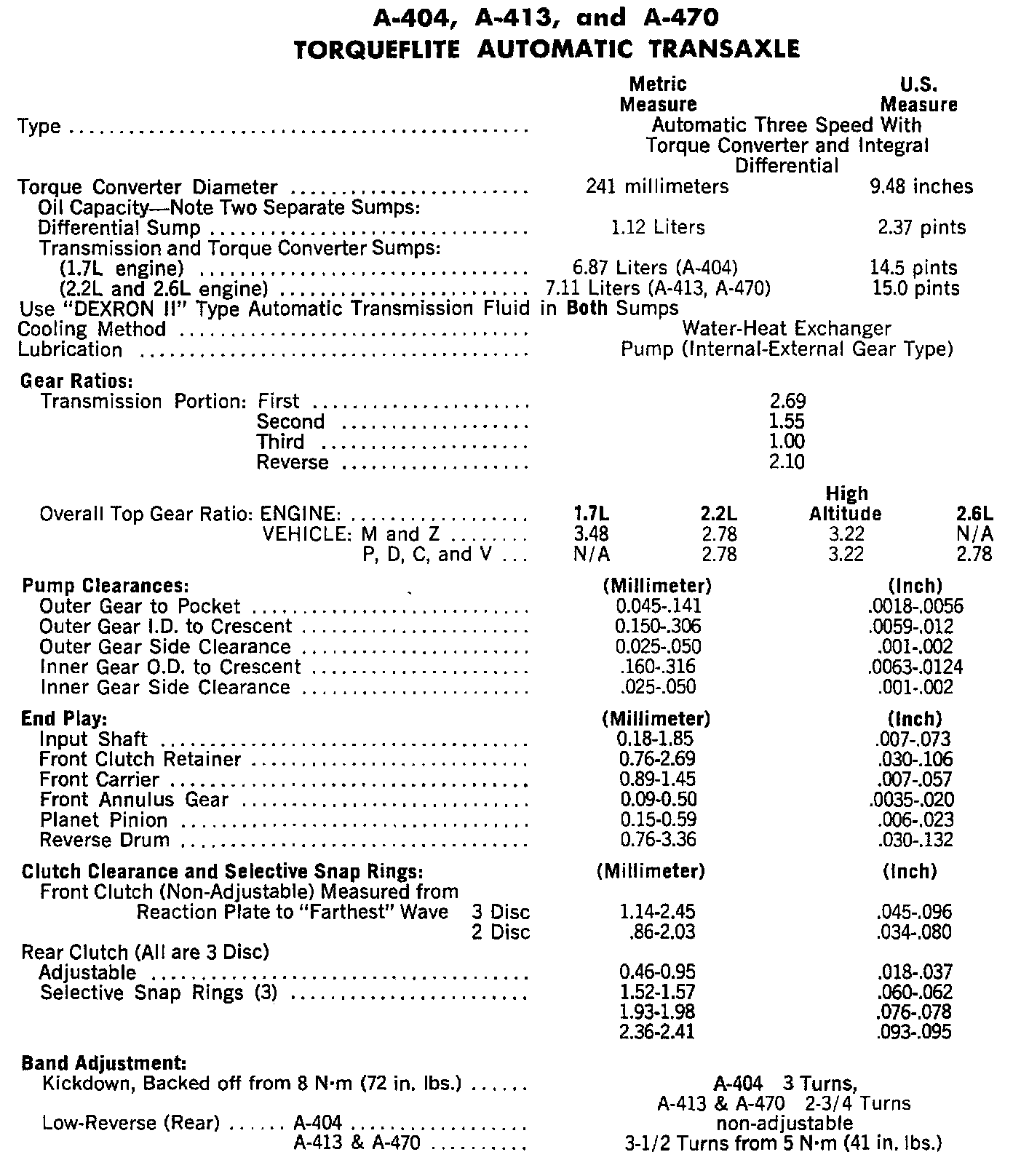

General Specifications:
Shift Speeds And Governor Pressure Chart:
Transmission Stall Speed Chart:
Output Shaft Bearing Shim Chart:
Differential Bearing Shim Chart:
Transfer Bearing Shim Chart:

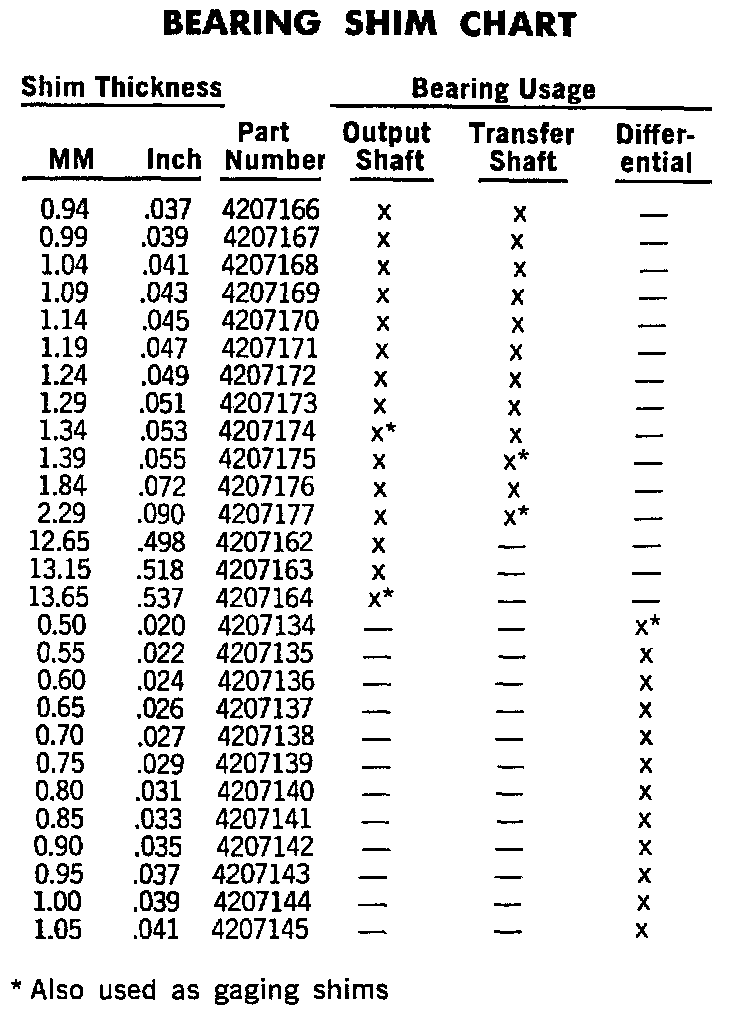

General Bearing Shim Chart:
Continued:

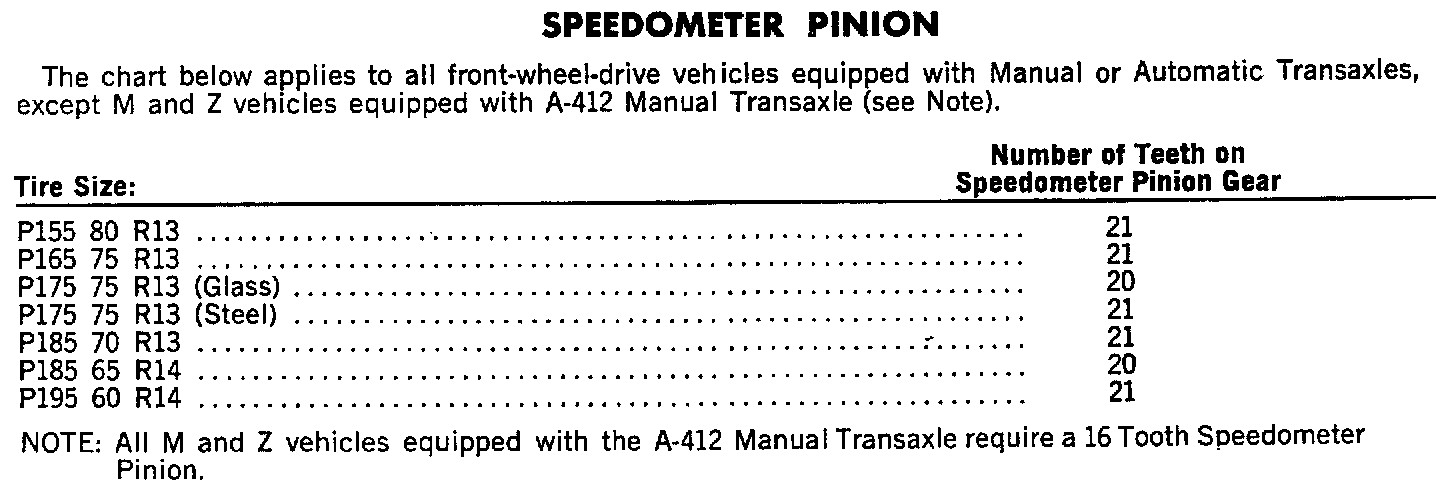

Speedometer Pinion Specifications:
