Instrument Panel Illumination Lamp Wiring Circuit

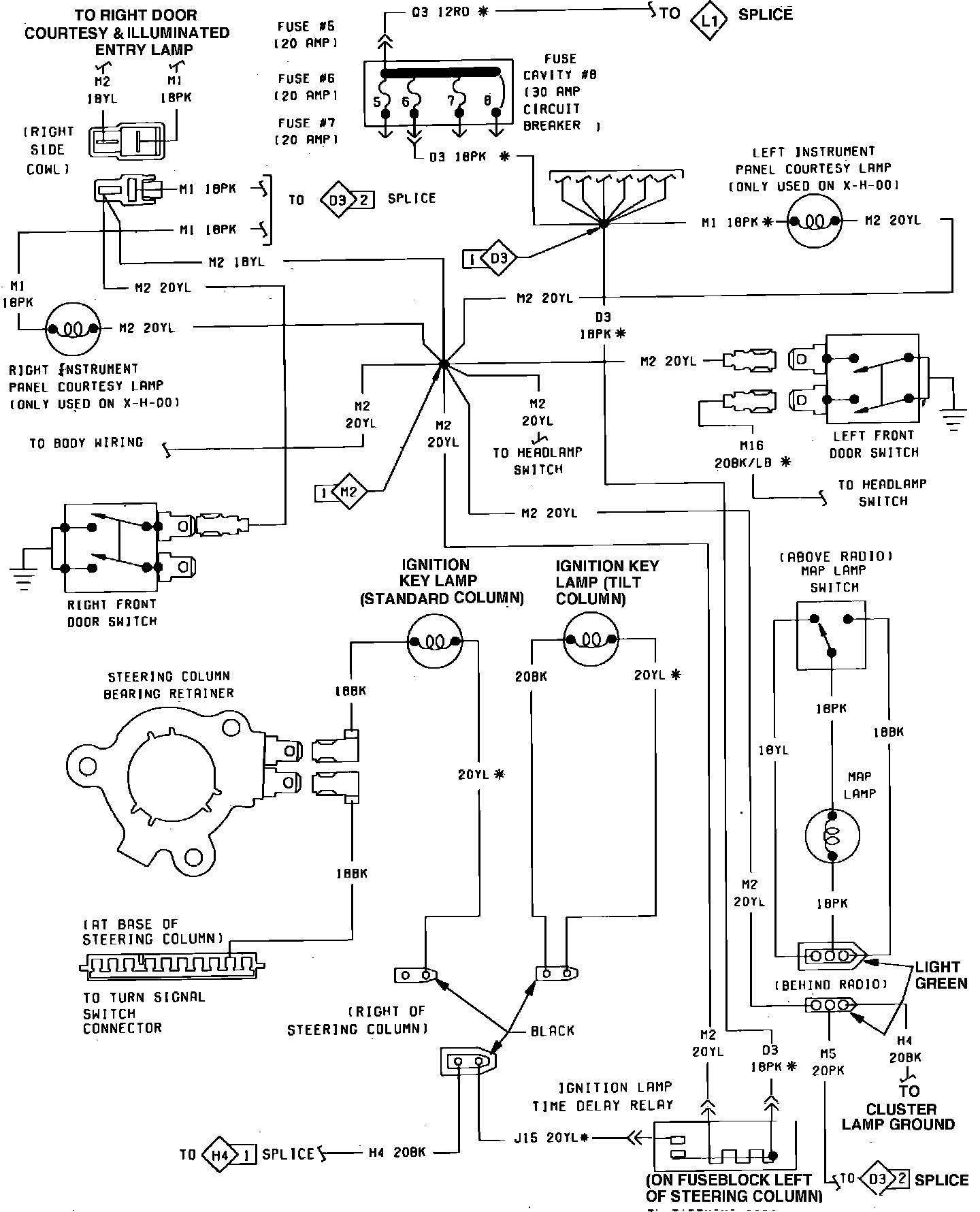

Fig. 25 Instrument Panel Courtesy Lamp Wiring Circuit. Cordoba & Mirada:
