Loadflite A-904, A-904LA, A-727 Transmissions

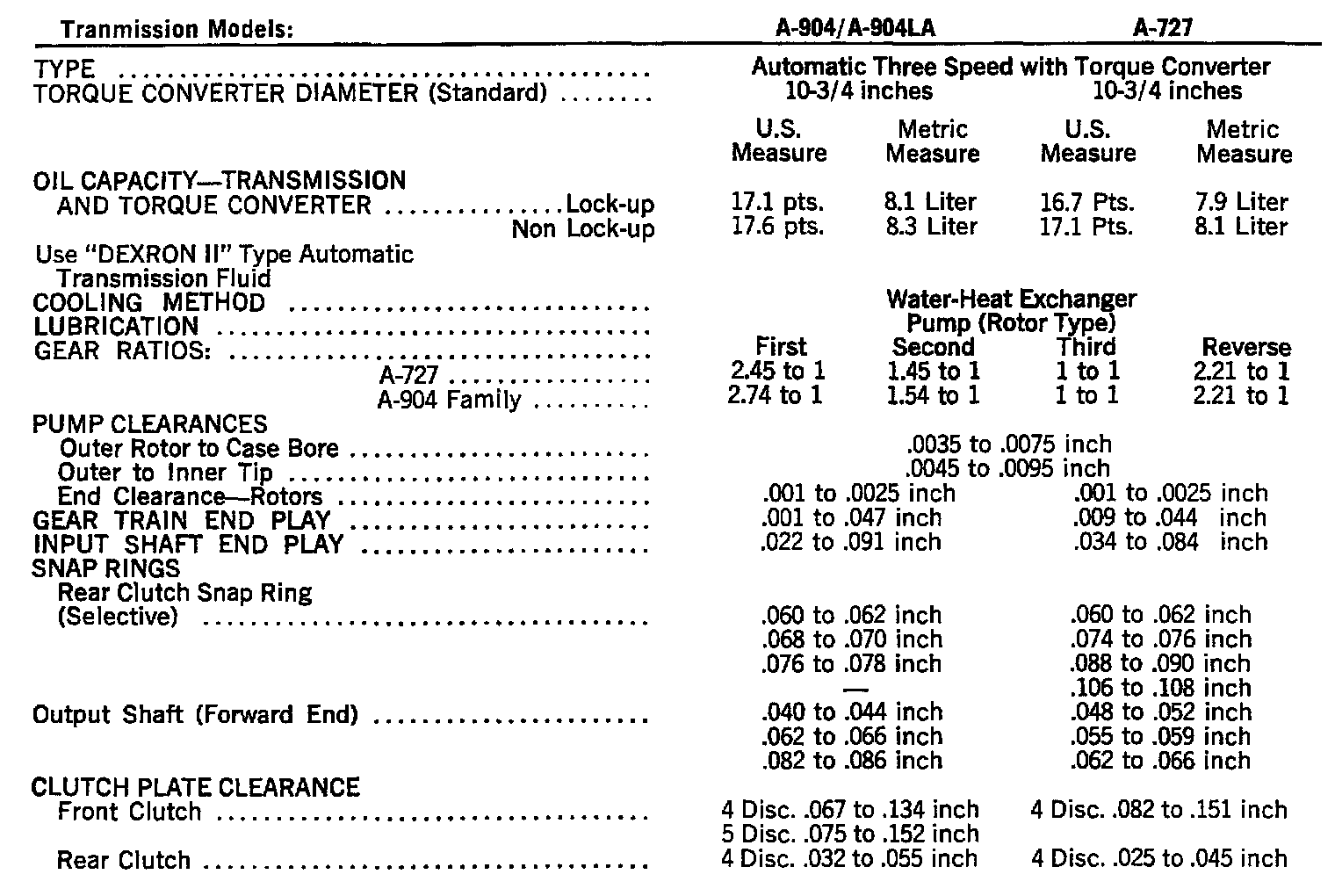

General Specifications:
Continued:

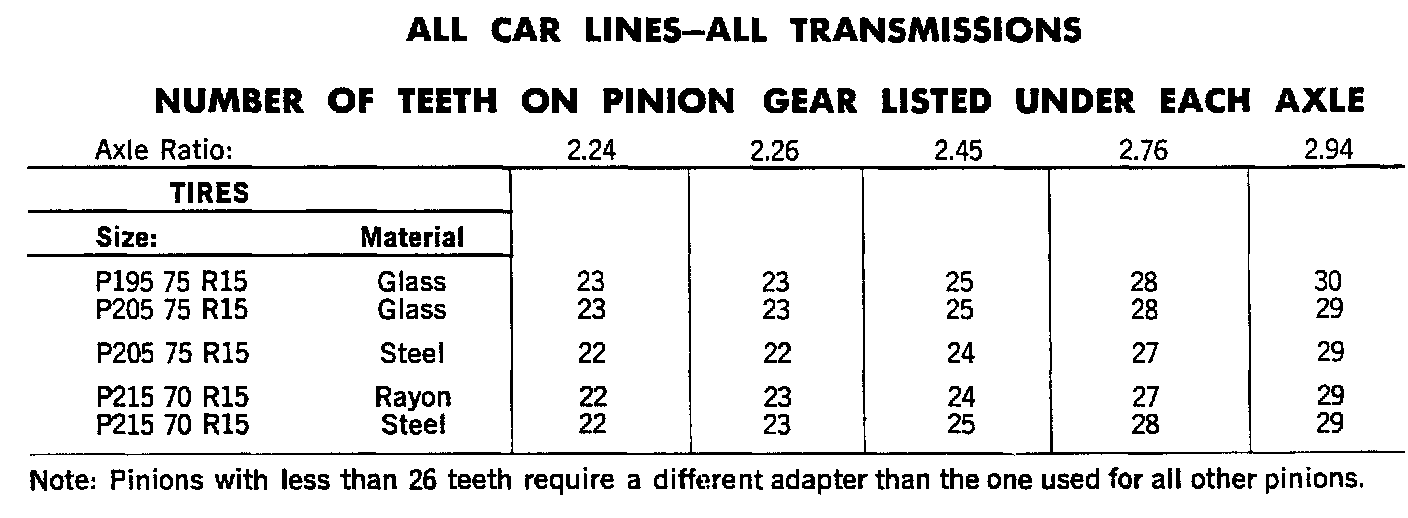

Speedometer Pinion Gear Chart:
Pinion Gear Specifications:
