Automatic Transmission/Transaxle: Diagrams

Park and neutral

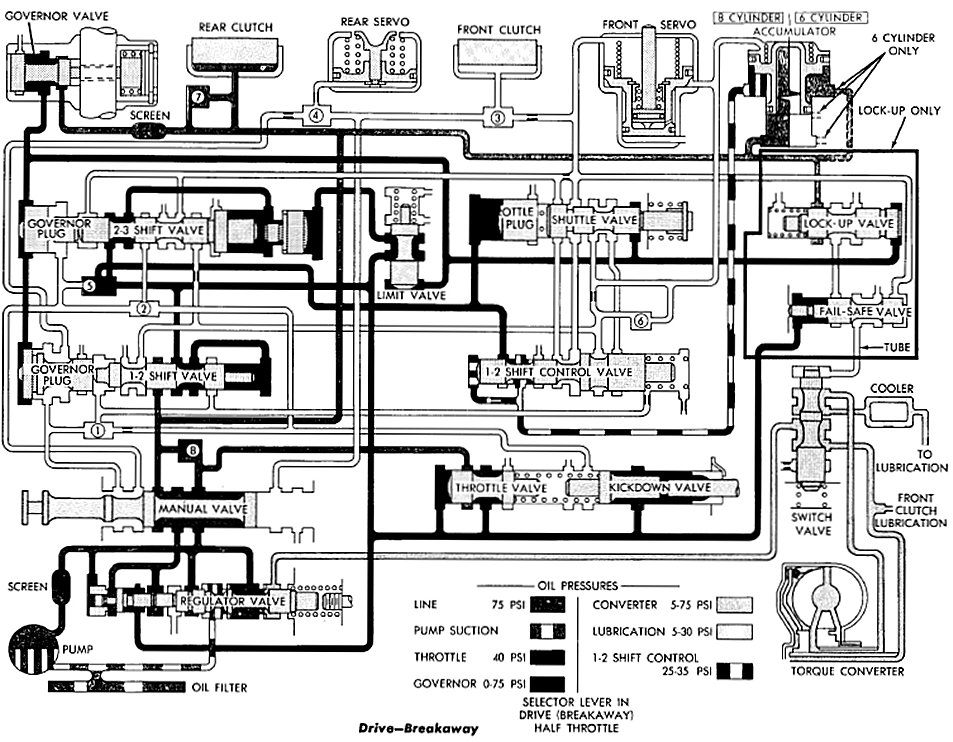

Drive-Brakeaway

Drive-Second

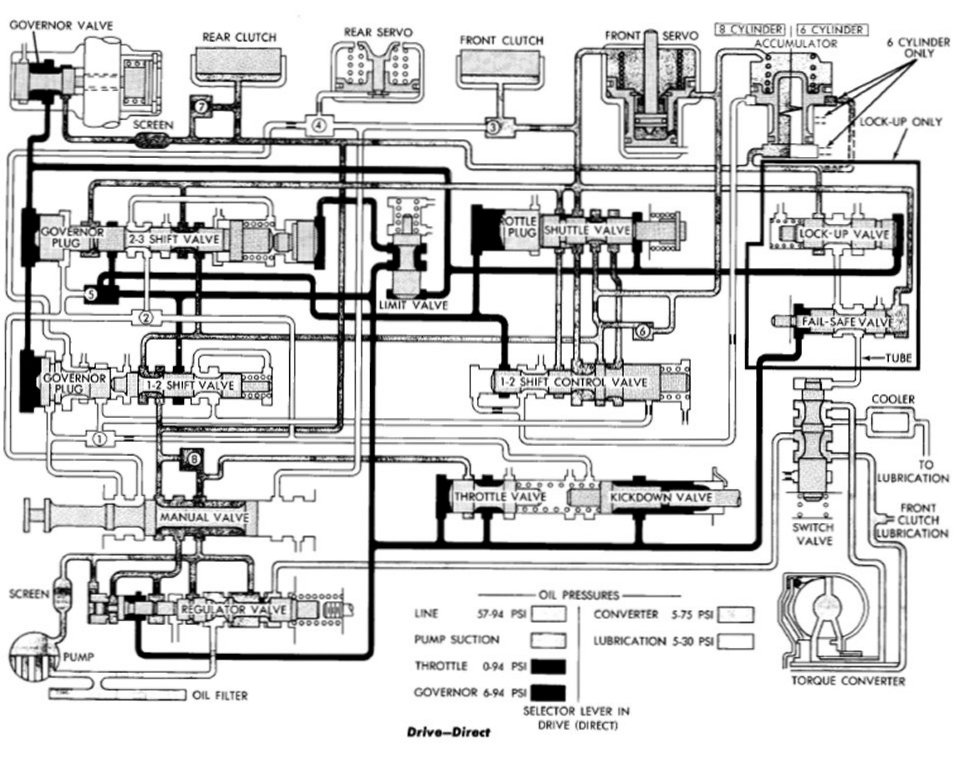

Drive-Direct

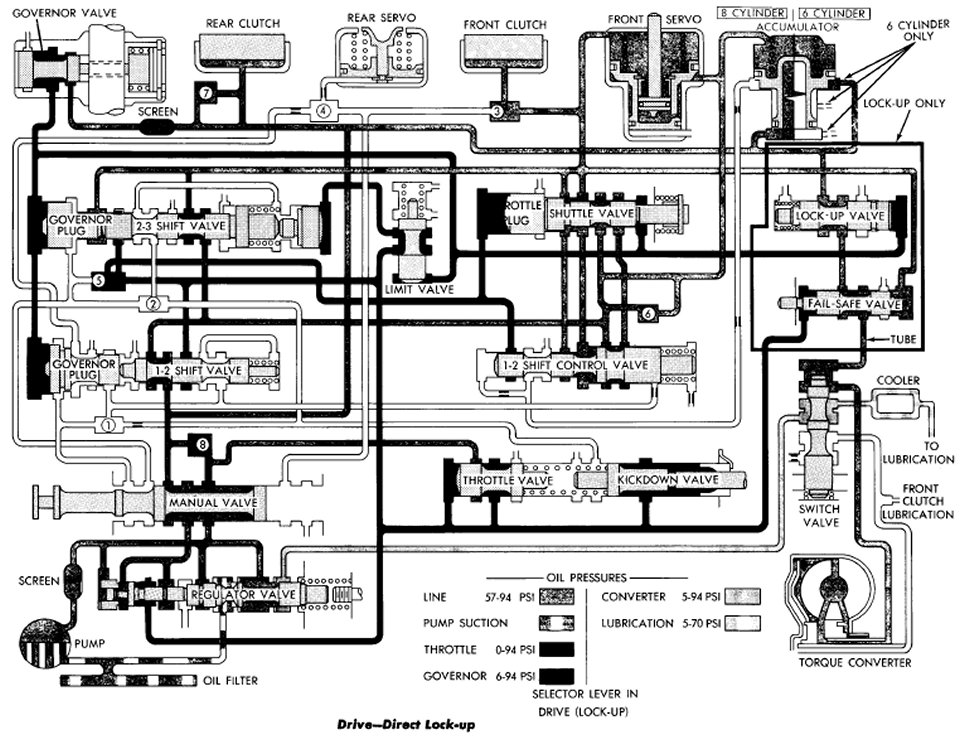

Drive-Direct lockup

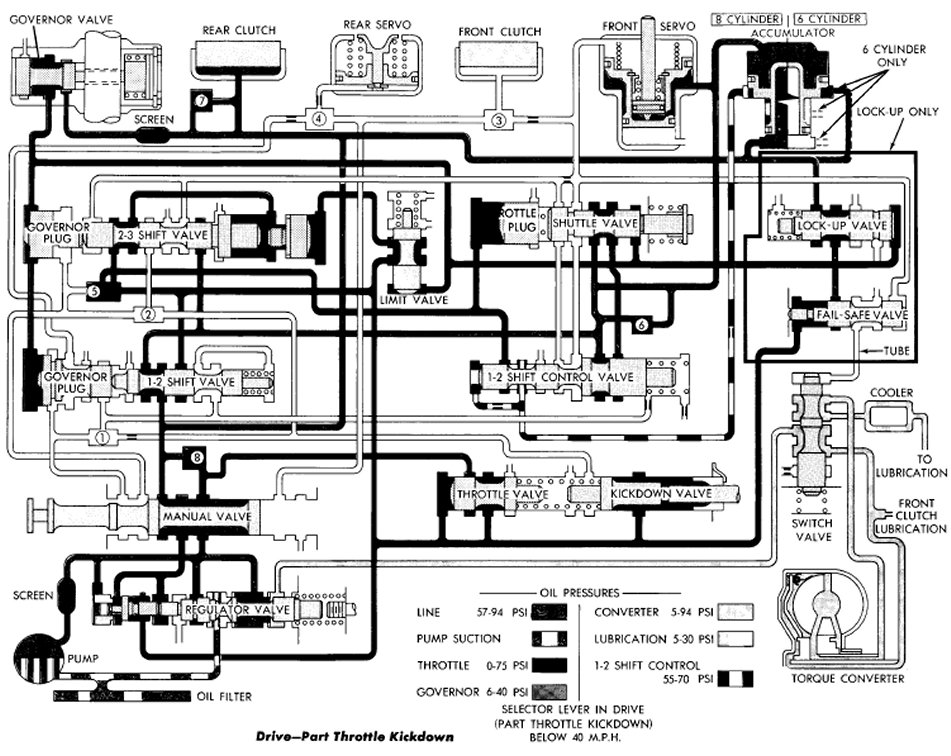

Drive-Part Throttle Kickdown

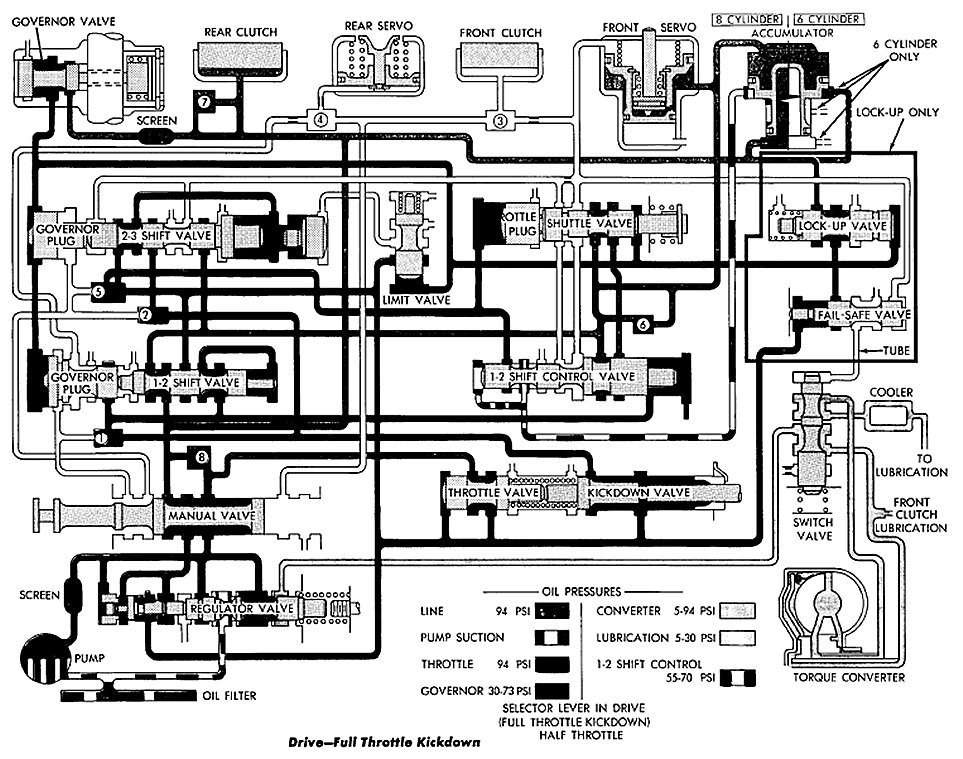

Drive-Full Throttle Kickdown

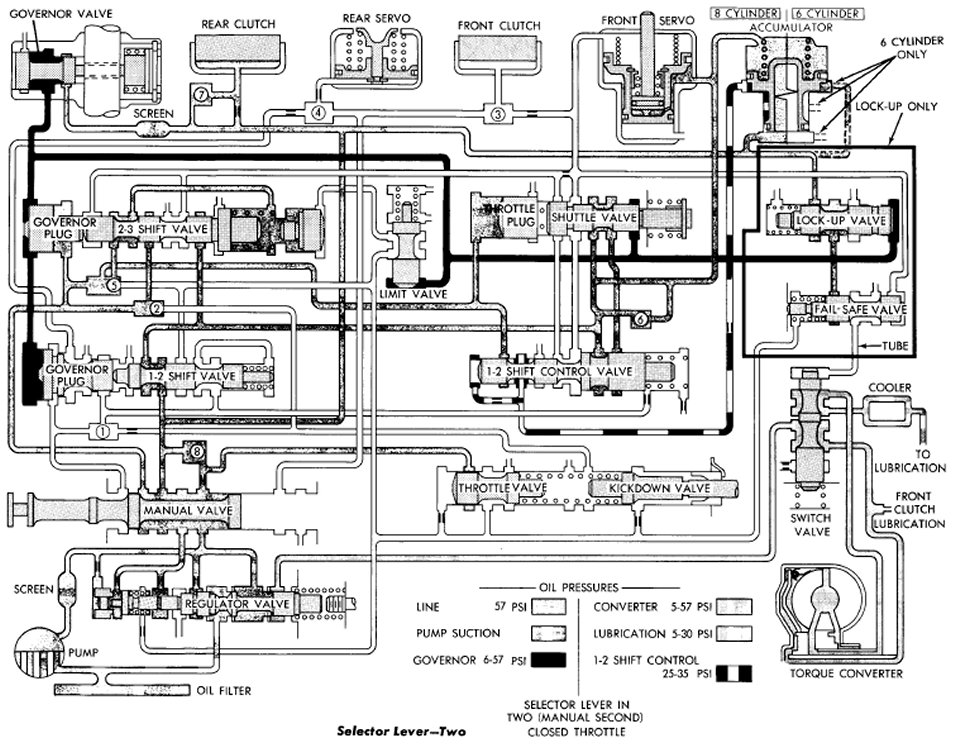

Selector Lever-Two

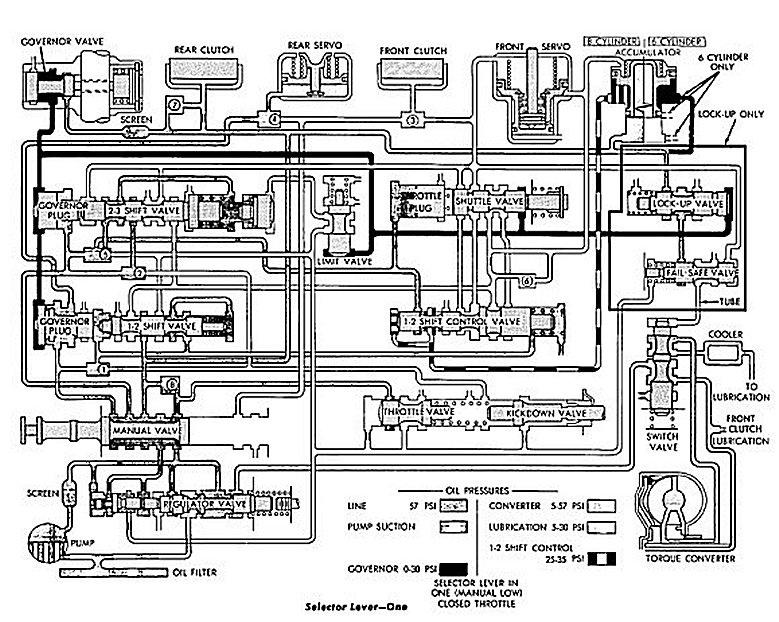

Selector Lever-One

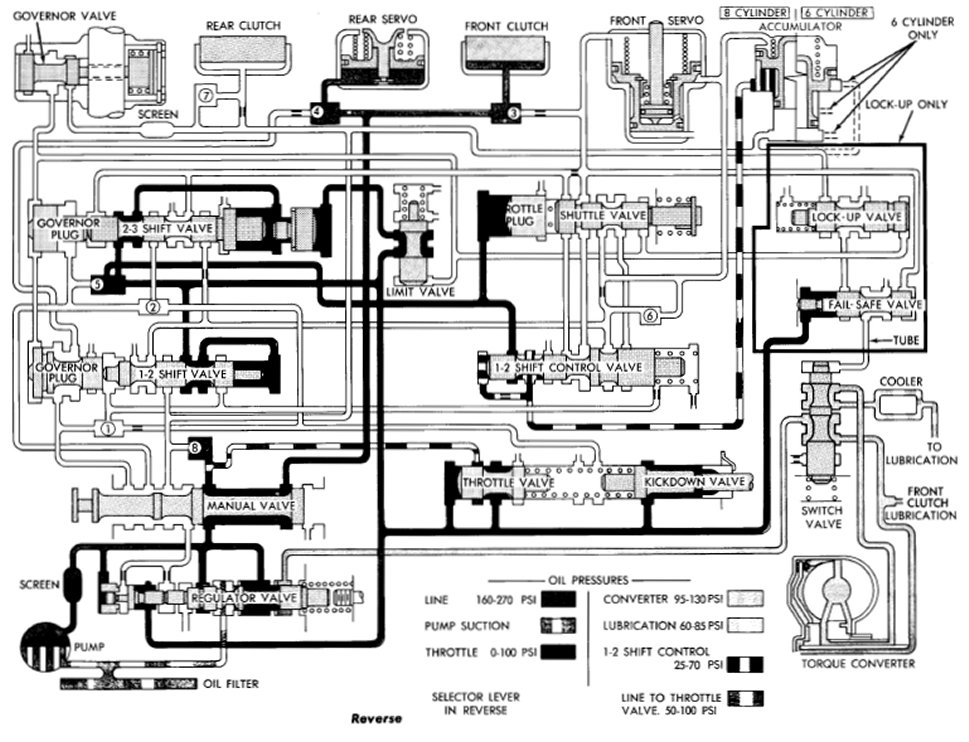

Reverse
