Air Conditioning & Heater Wiring

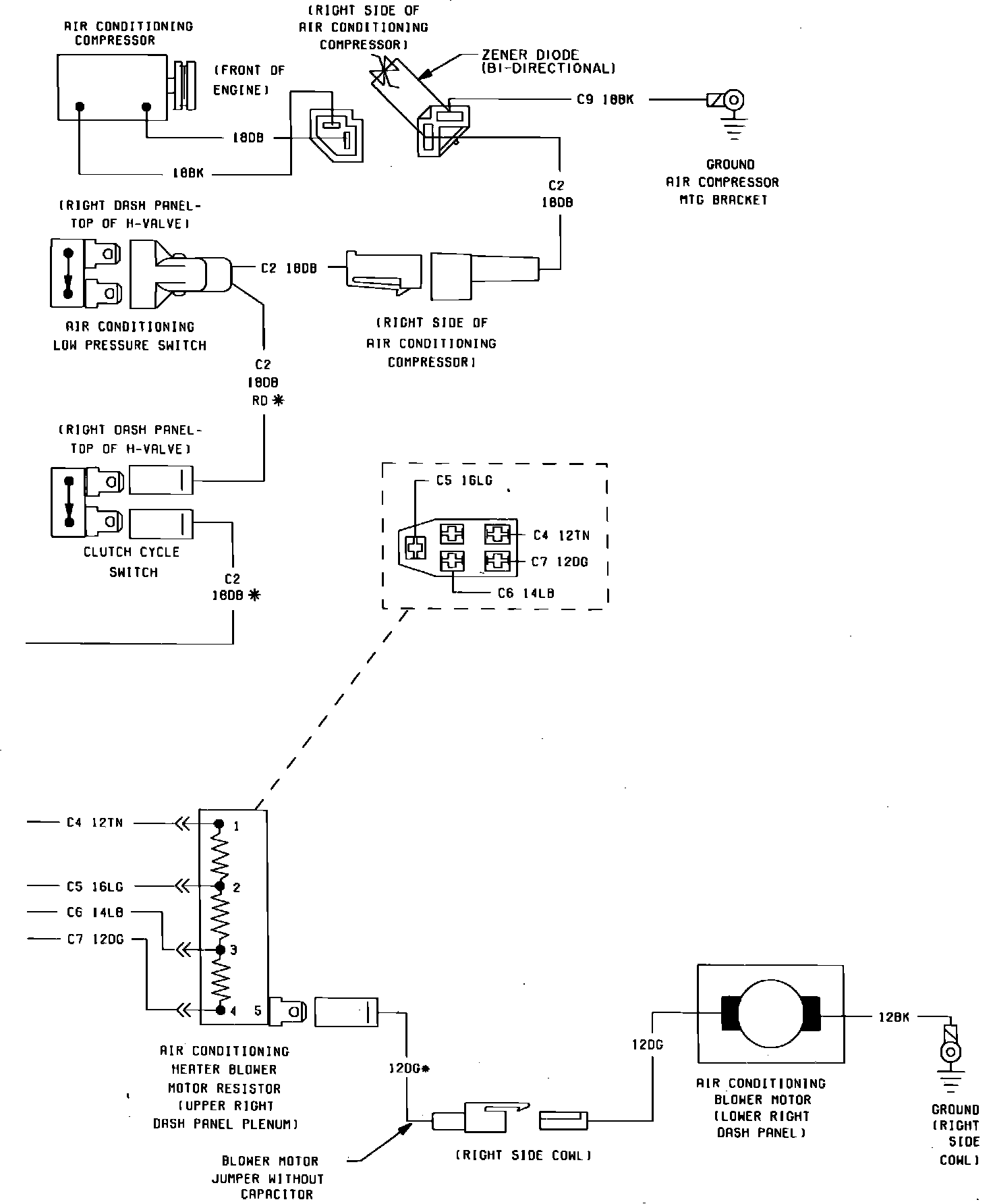

Air Conditioning & Heater System Wiring Circuit (Part 1 of 2):
Fig. 8 Air Conditioning Wiring Circuit (Part 2 of 2):
