Circuit Board Connector
Circuit Board Connector

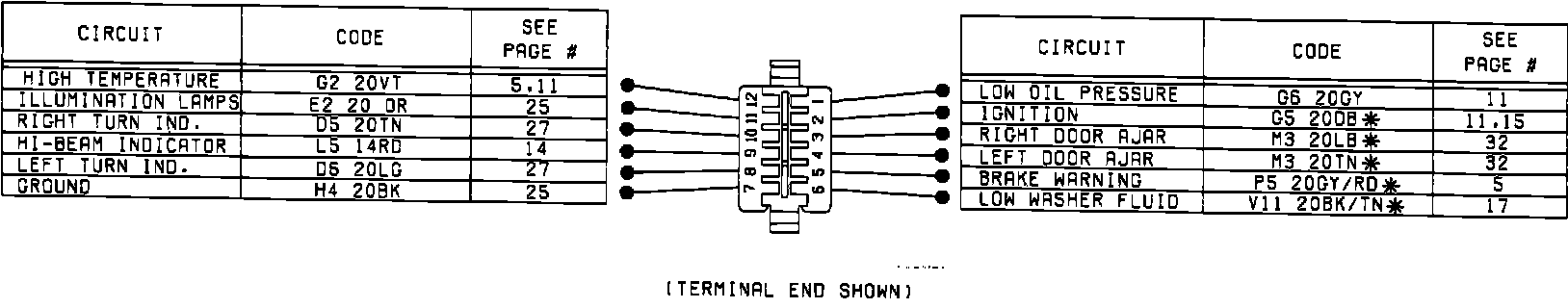

Fig. 3 Instrument Panel Printed Circuit Board Connector. 1983 Imperial:
