Electronic Cluster 30 Way Connector
Electronic Cluster 30 Way Connector

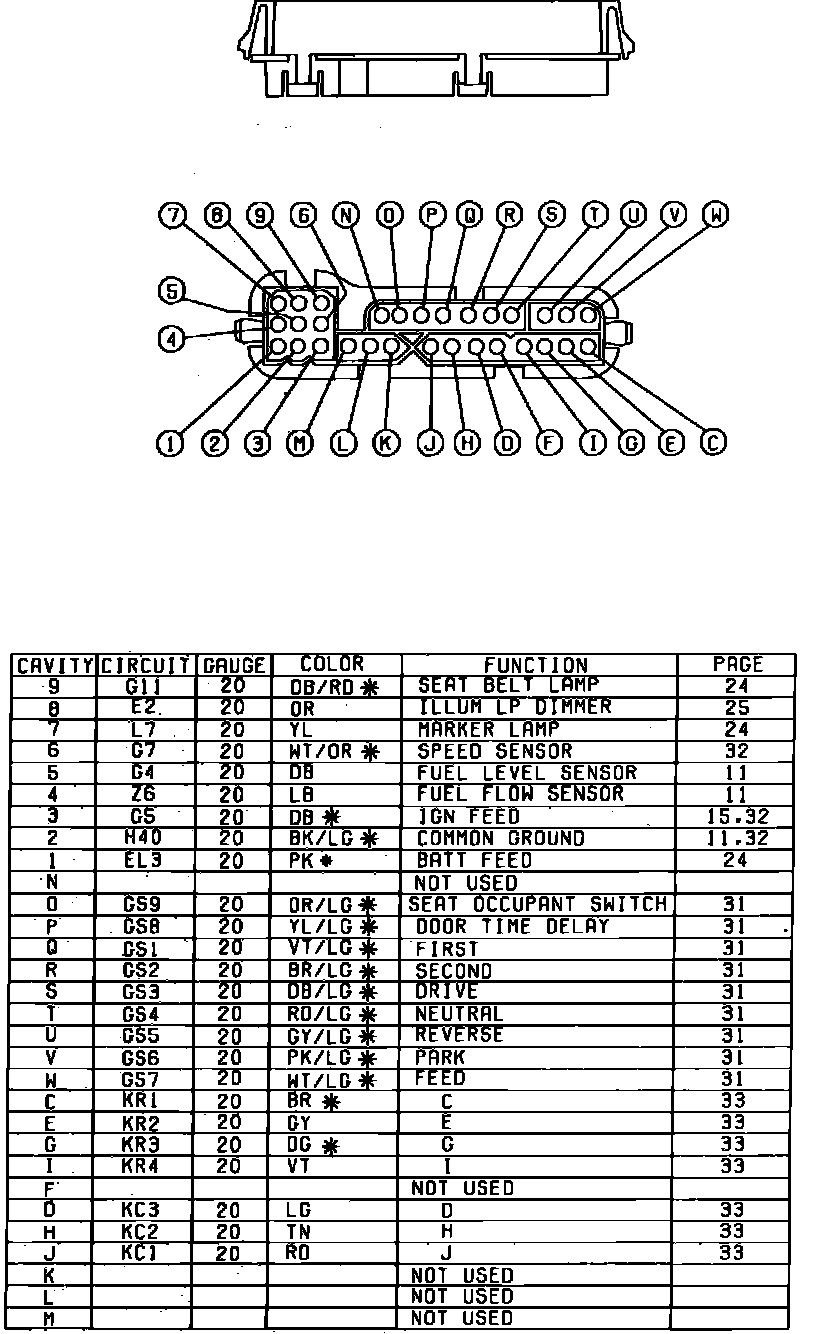

Fig. 5 Electronic Cluster 30 Way Connector. 1983 Imperial:
