Audible Warning Device Control Module

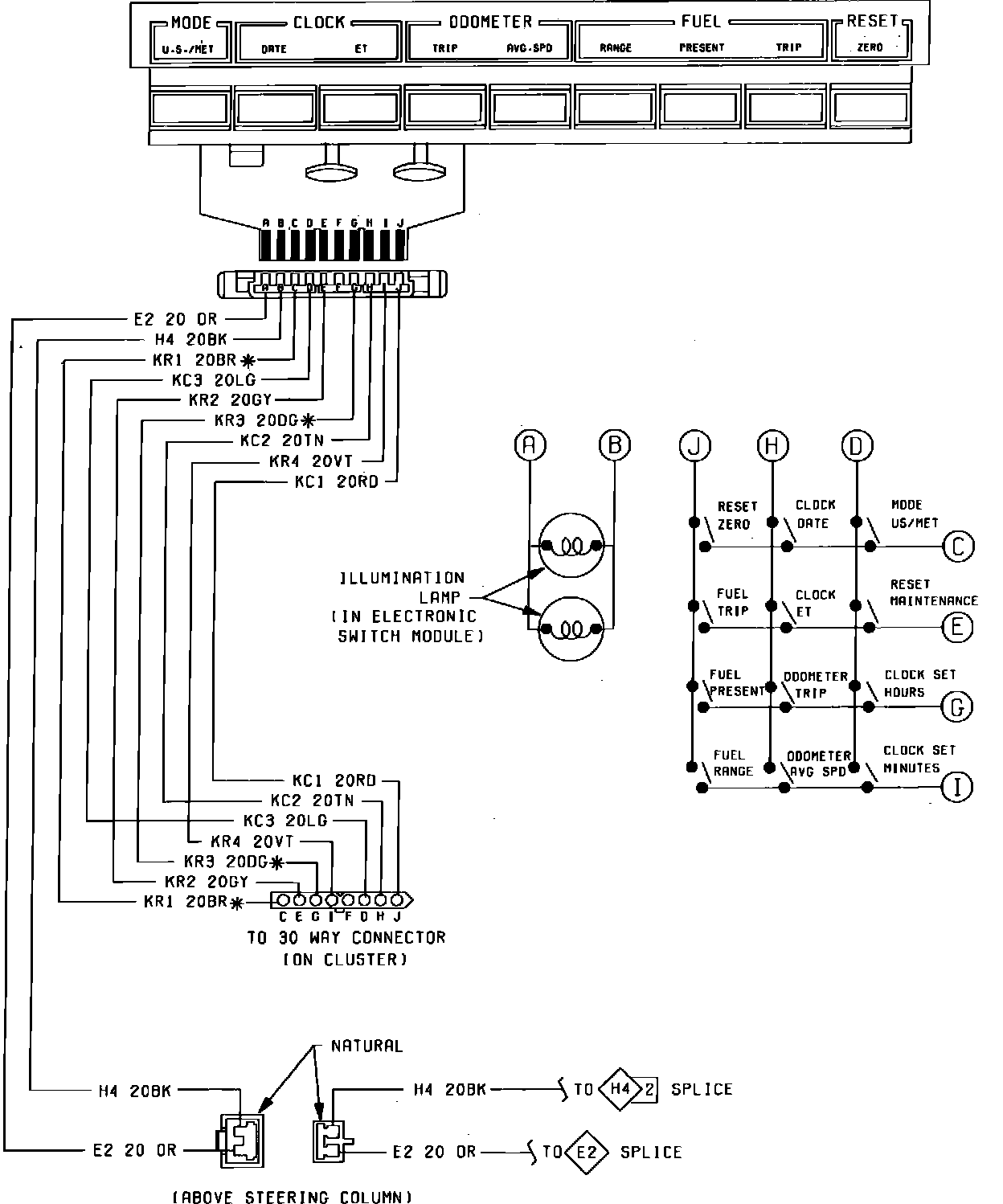

Fig. 16 Electronic Switch Module Wiring Circuit. 1983 Imperial:
