Home >> Chrysler >> 1983 >> Imperial V8-318 5.2L VIN N TBI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Door Switch >> Part 1 of 2

Part 1 of 2

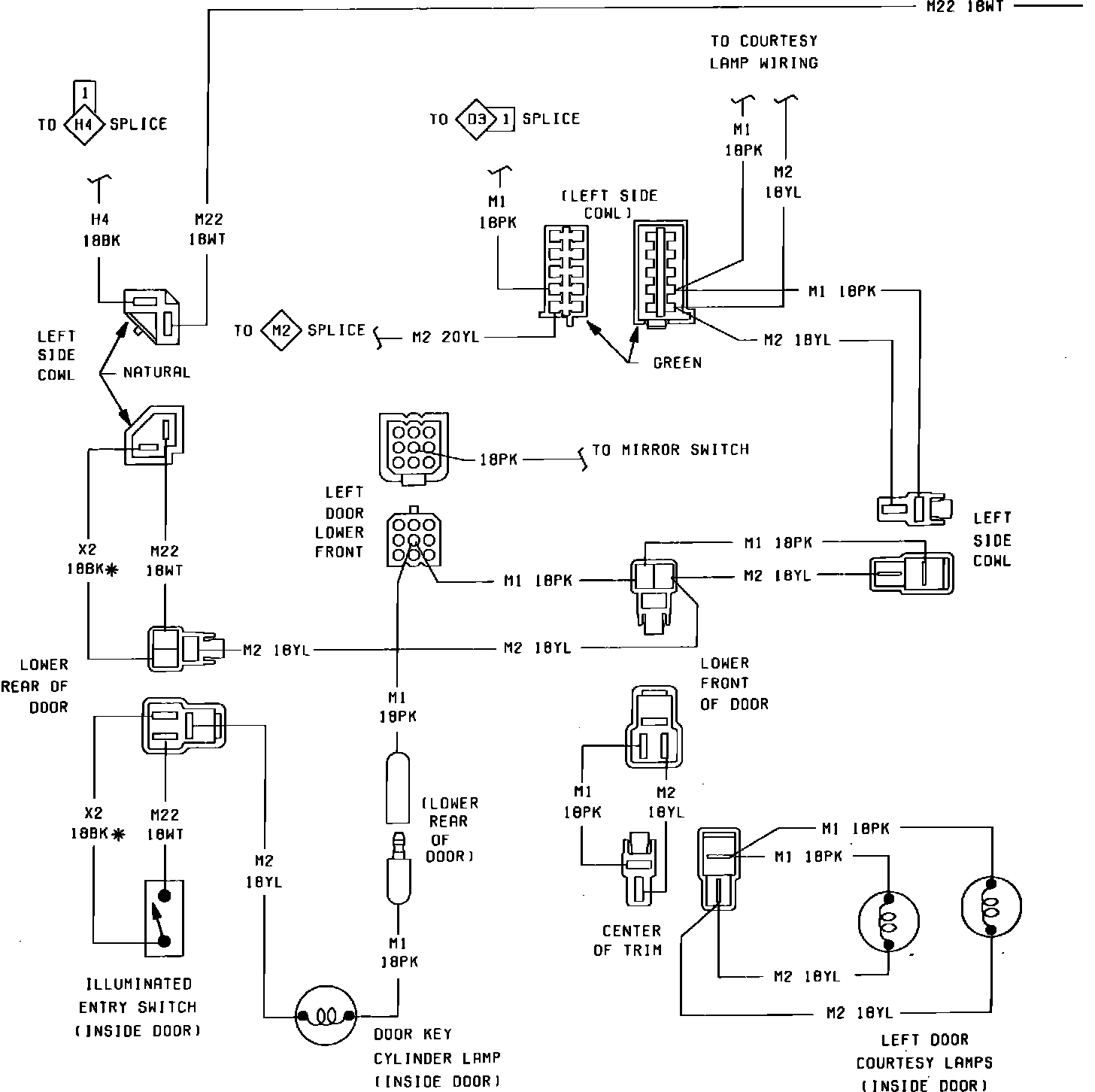

Fig. 26 Illuminated Entry System Wiring Circuit. 1983 Imperial (Part 1 of 2):
