Door/Trunk Ajar Indicator/Lamp
Door/Trunk Ajar Indicator/Lamp

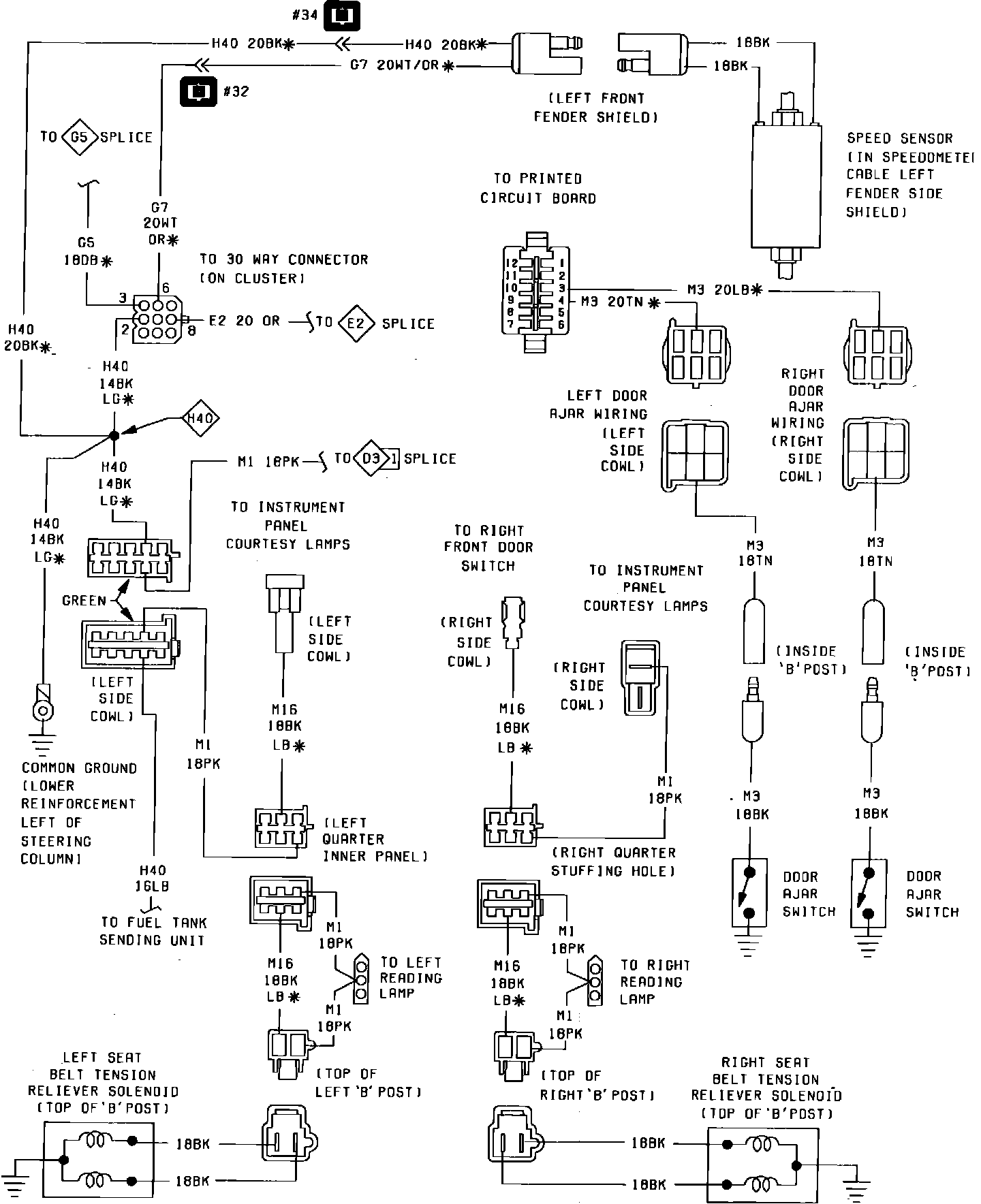

Fig. 14 Door Ajar & Speed Sensor Systems Wiring Ciruit. 1983 Imperial:
