Key Reminder Switch
>>
Part 2 of 2
Part 2 of 2

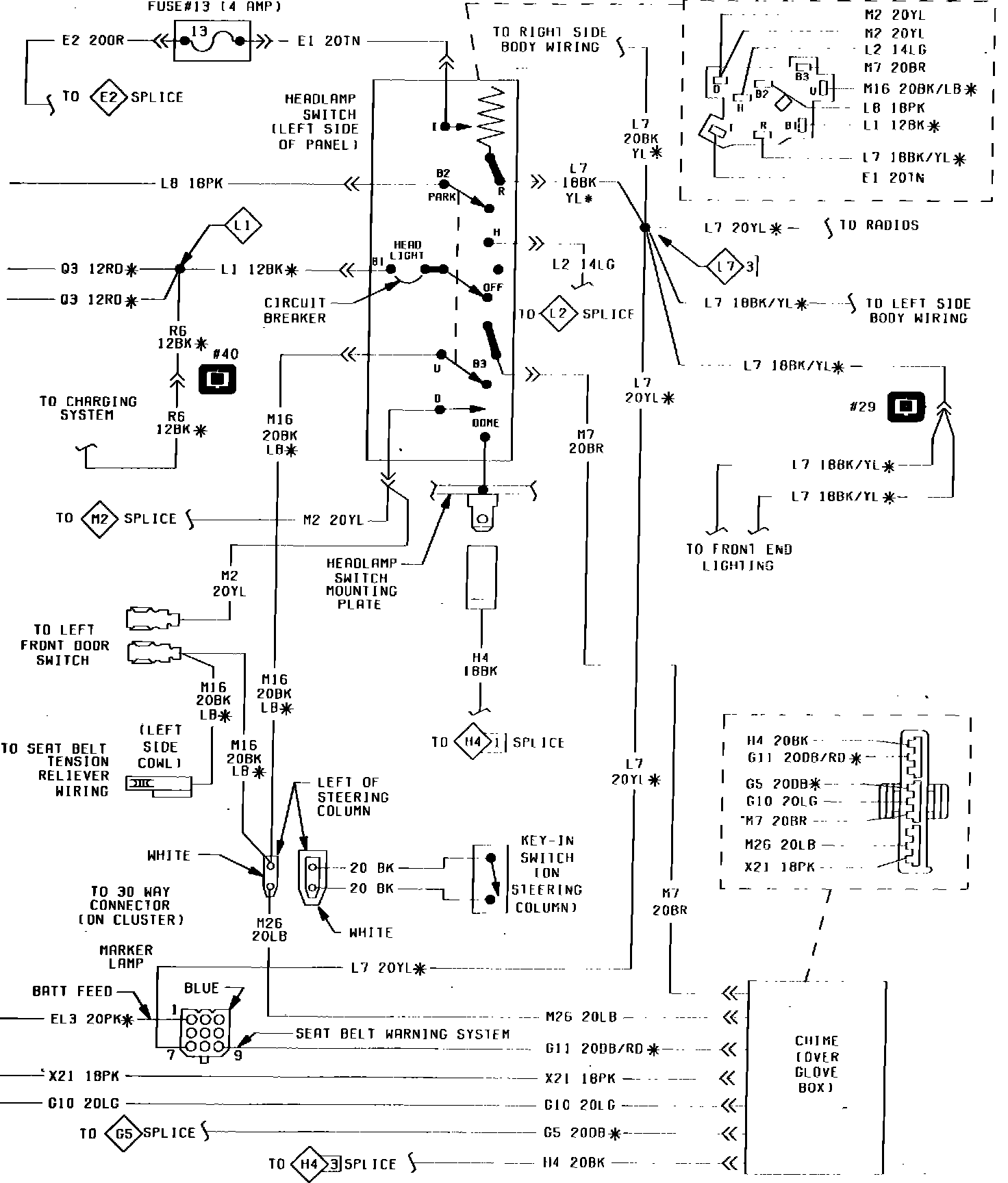

Fig. 21 Headlamp Chime, Switch & Seat Belt Warning System Wiring Circuit. 1983 Imperial (Part 2 of 2):
