Dome Lamp

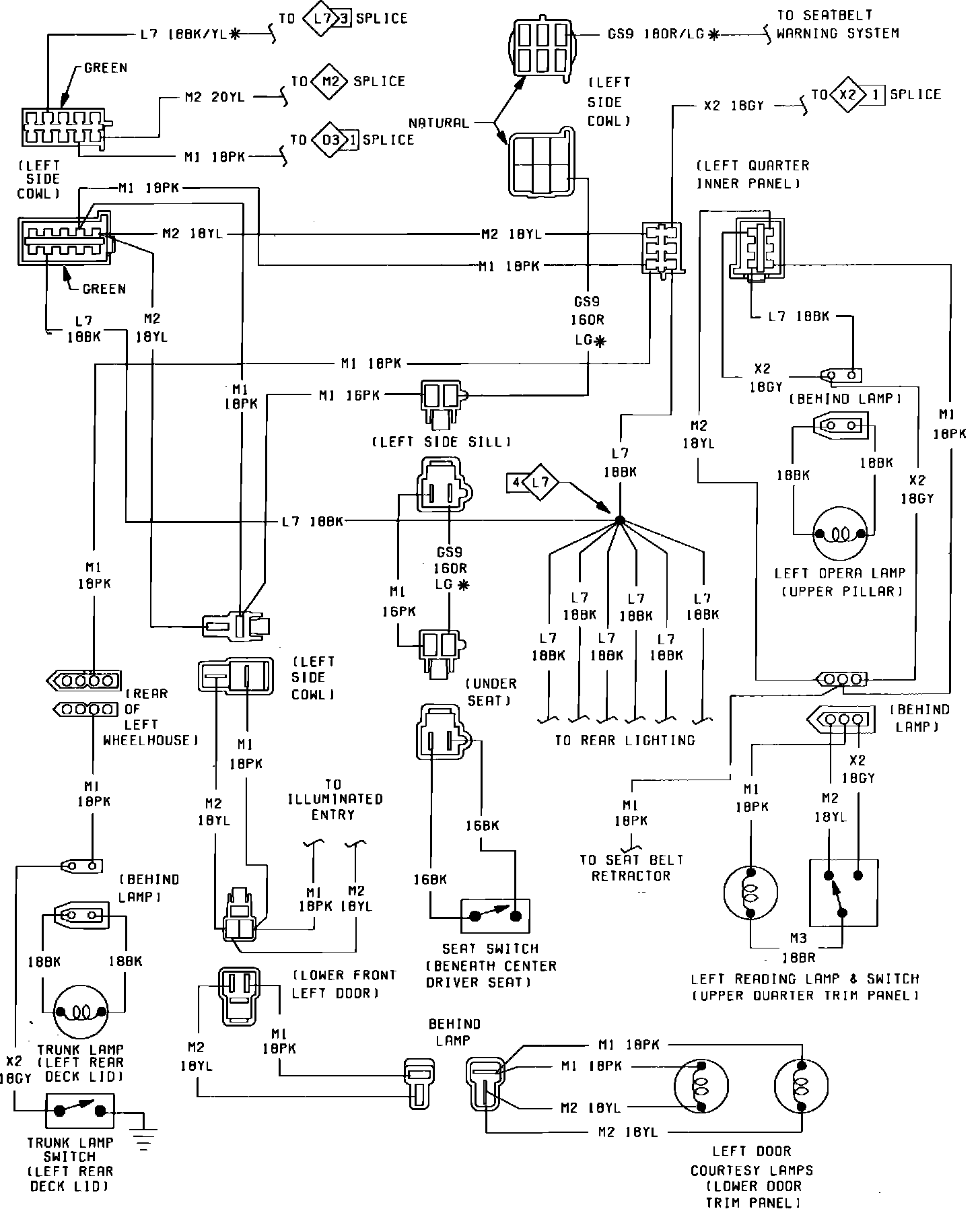

Fig. 11 Courtesy Lamp Wiring Circuit. 1983 Imperial (Part 1 of 2):

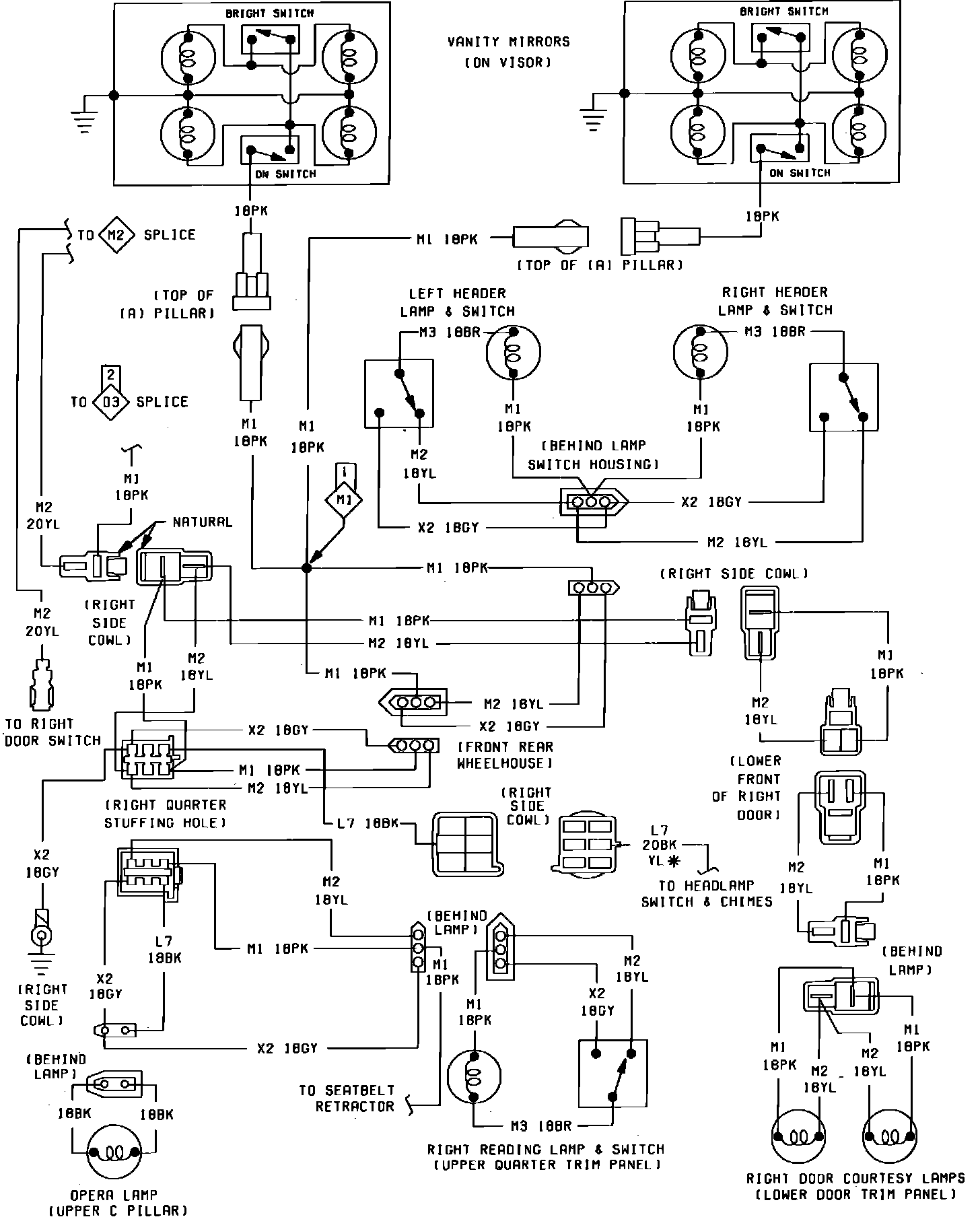

Fig. 11 Courtesy Lamp Wiring Circuit. 1983 Imperial (Part 2 of 2):
