Turn Signal Switch

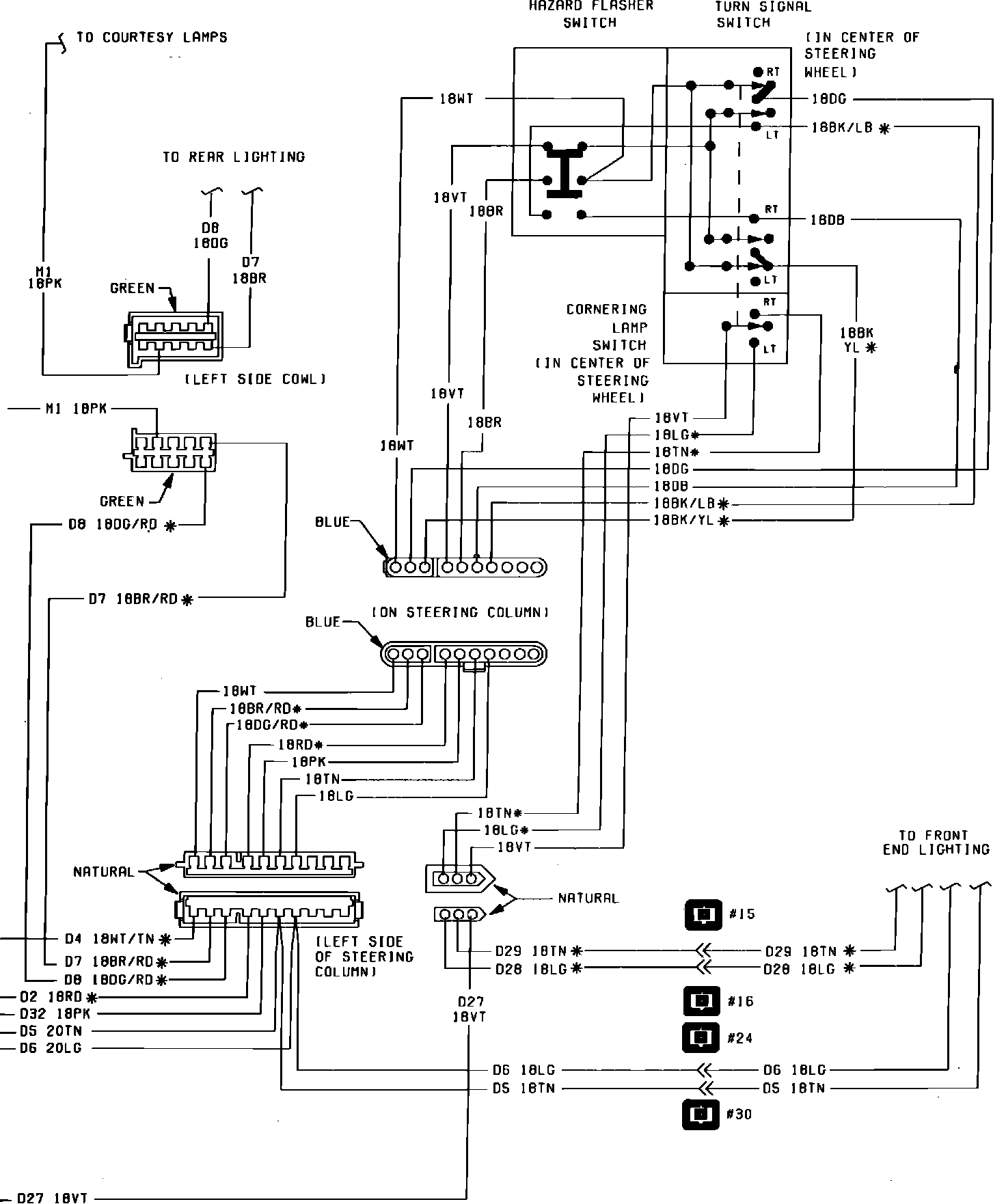

Fig. 36 Turn Signal Switch Wiring Circuit. 1983 Imperial (Part 1 of 2):

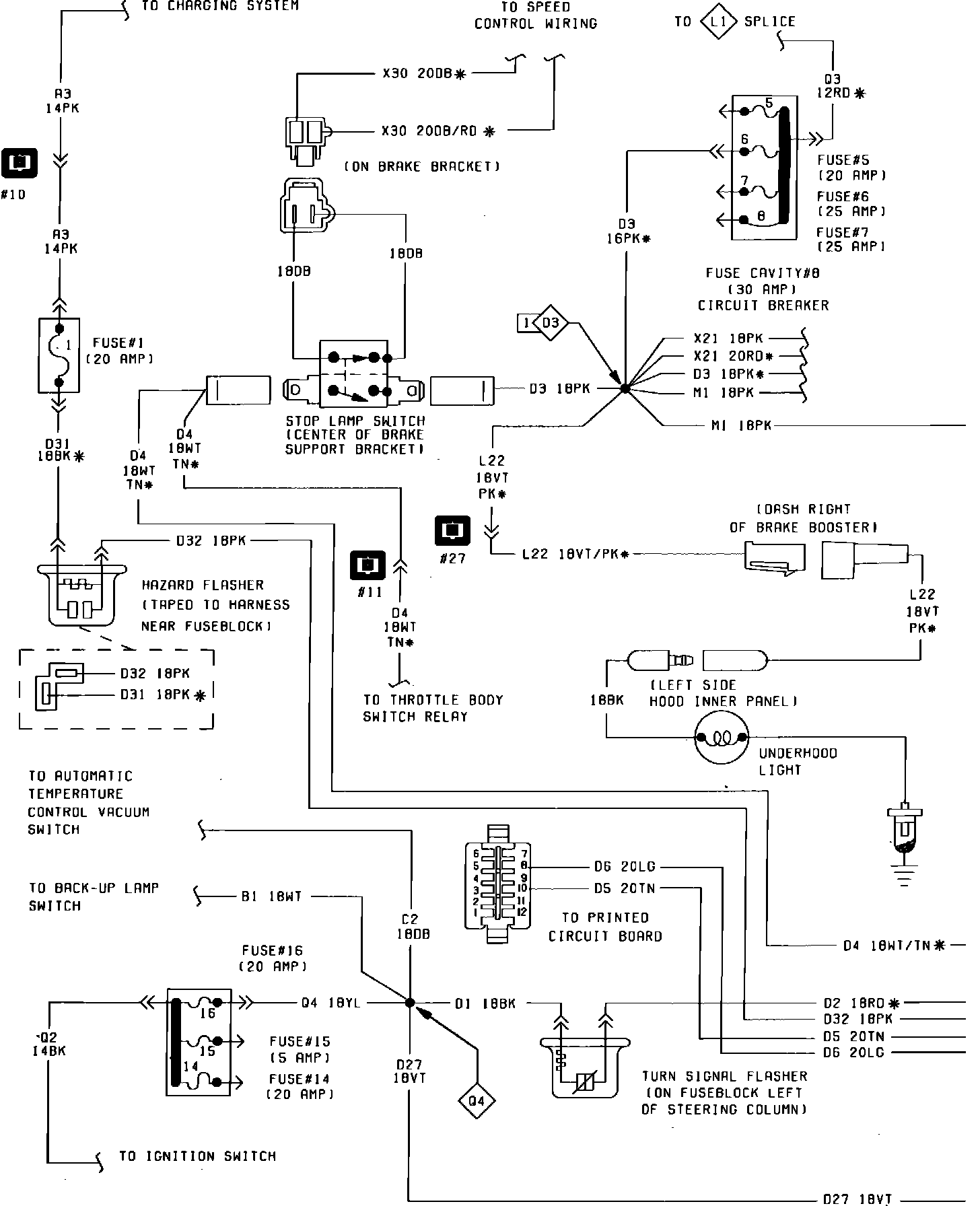

Fig. 36 Turn Signal Switch Wiring Circuit. 1983 Imperial (Part 2 of 2):
