System Diagram

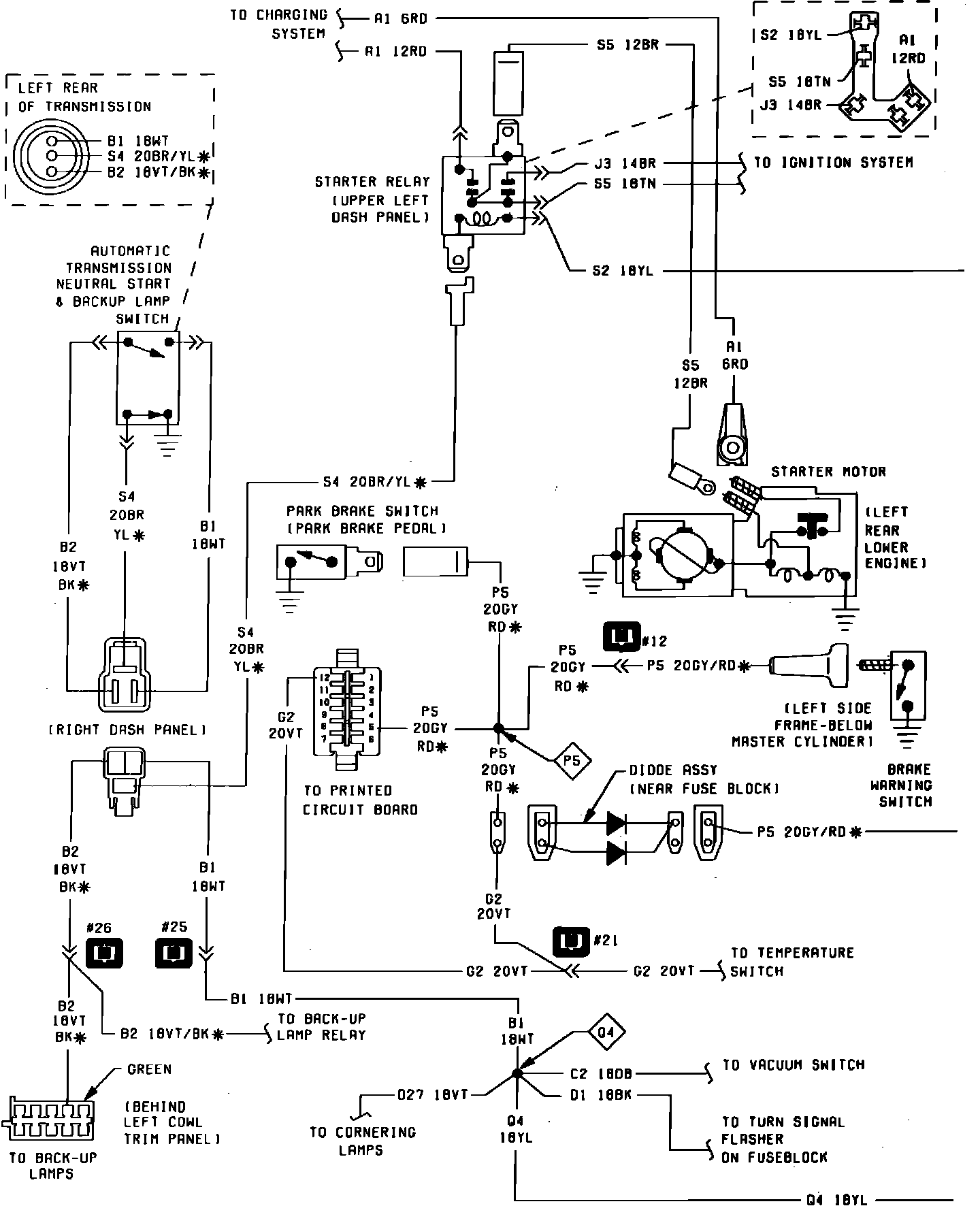

Fig. 8 Brake Switch & Starter Wiring Circuit. 1983 Imperial:



Fig. 9 Charging System Wiring Circuit. 1983 Imperial (Part 2 of 2):
