Temperature Switch (Warning Indicator)

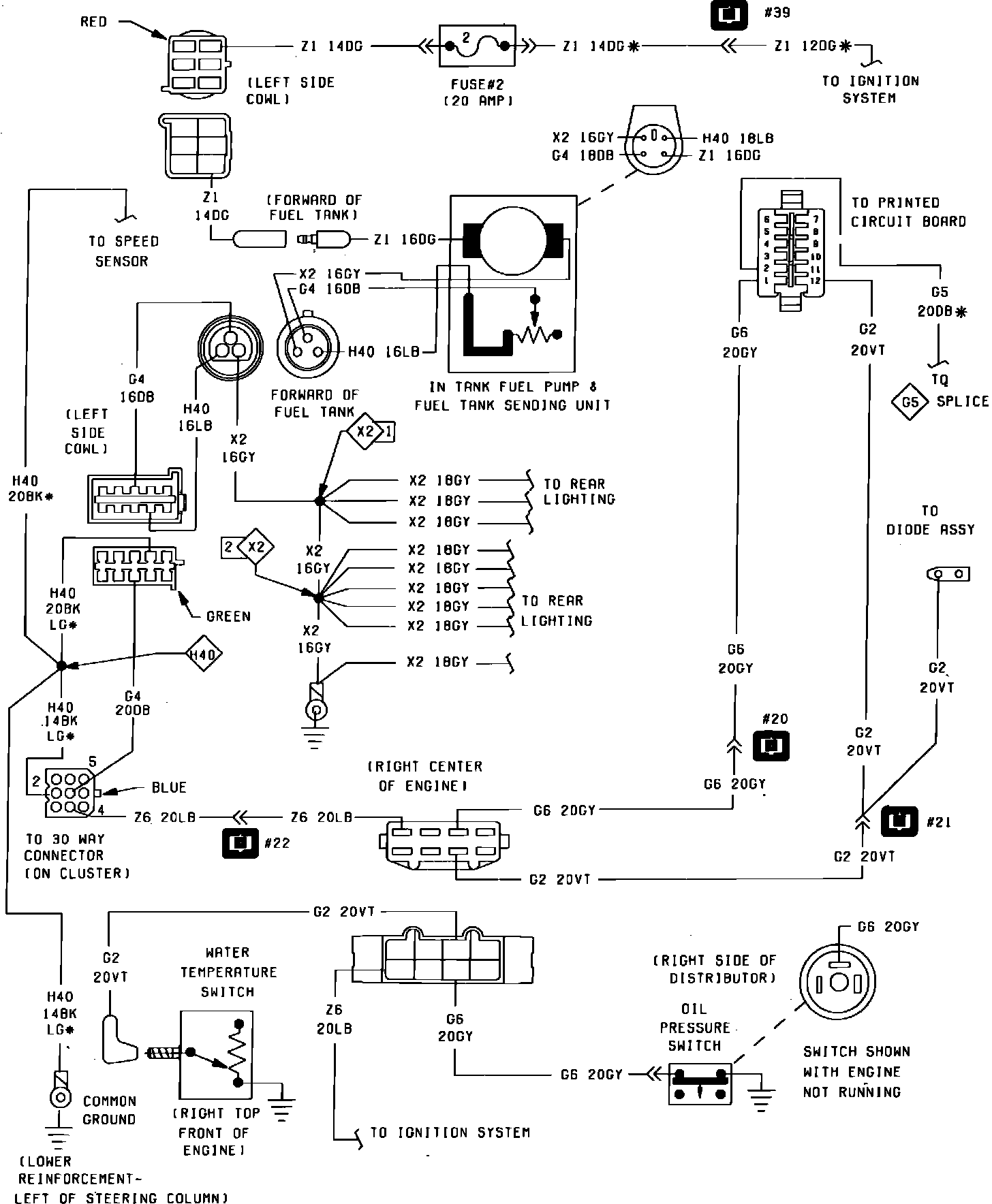

Fig. 19 Fuel Tank, Oil Pressure & Temperature Warning Wiring Circuit. 1983 Imperial:
