Deck Lid/Liftgate Release Wiring Circuit

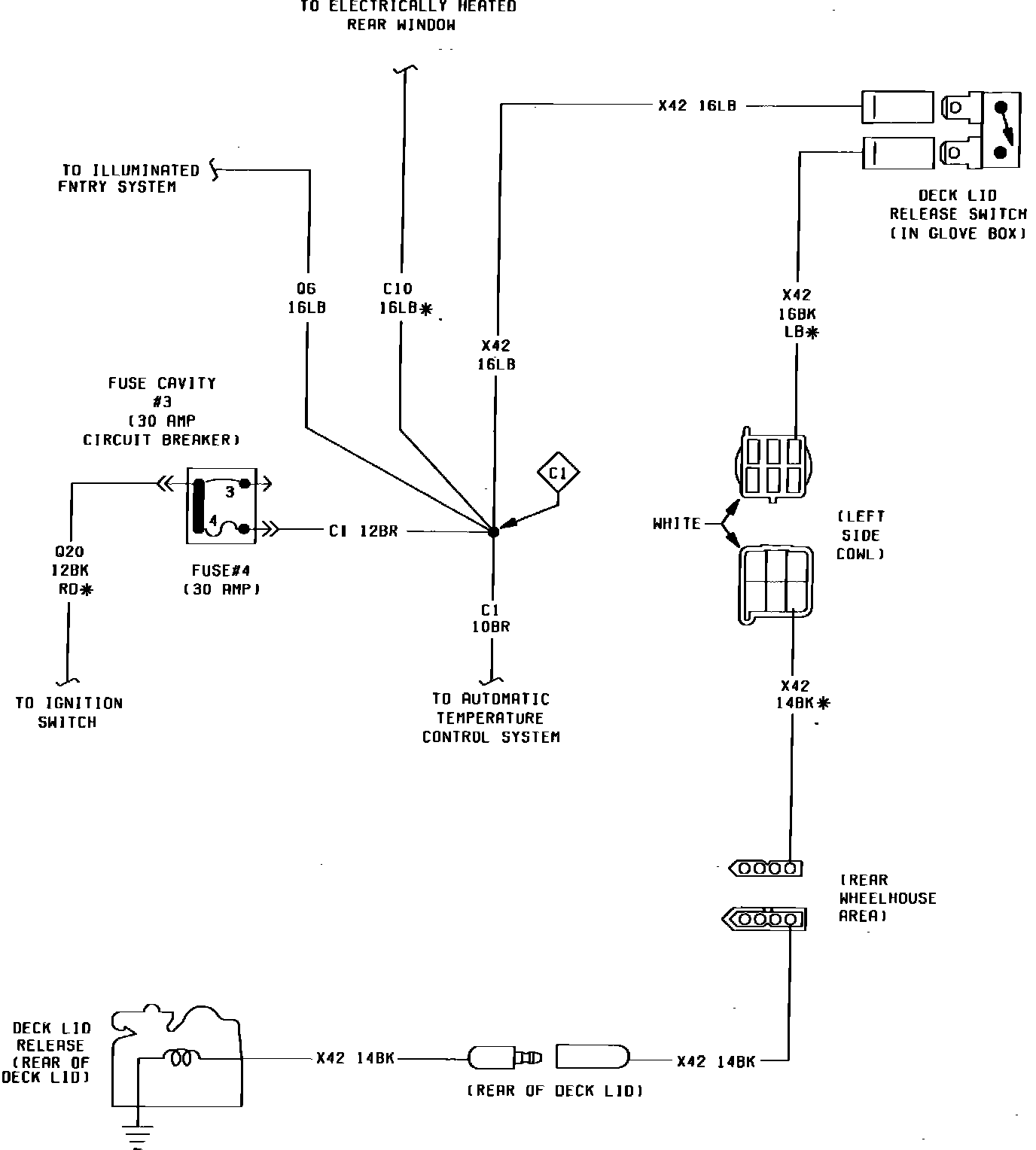

Fig. 13 Deck Lid Release System Wiring Circuit. 1983 Imperial:
