Front End Lighting

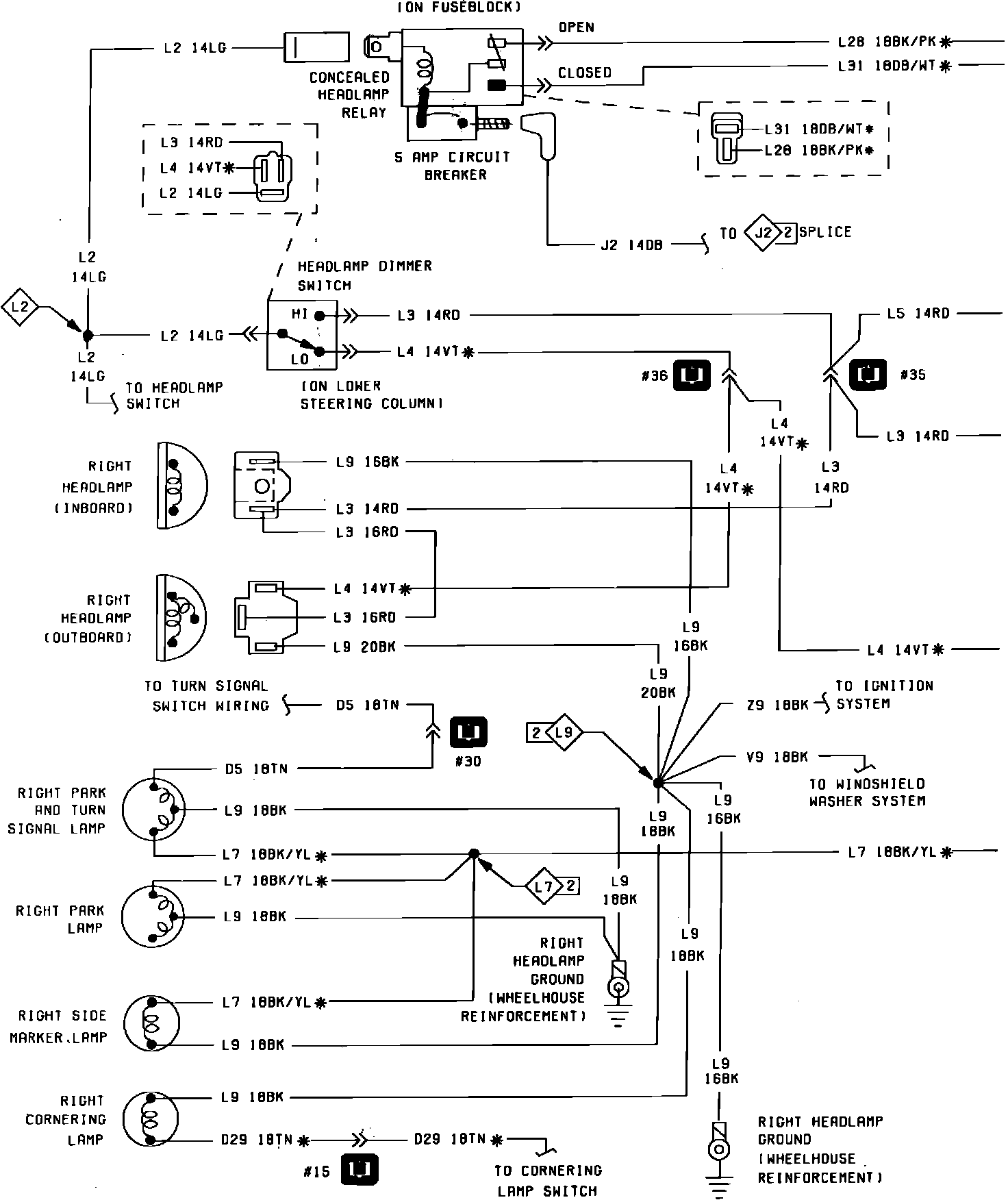

Fig. 18 Front End Lighting Wiring Circuit. 1983 Imperial (Part 1 of 2):

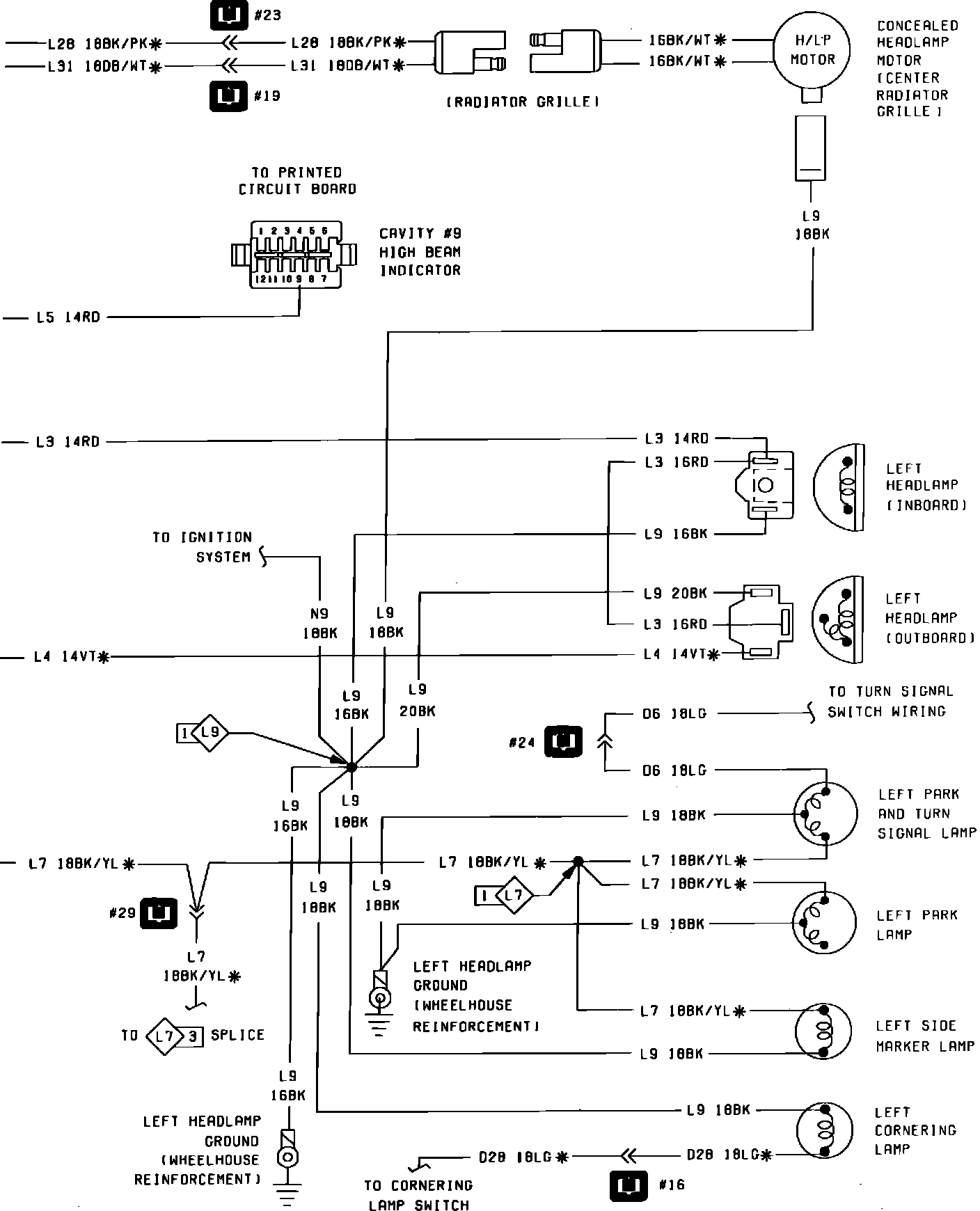

Fig. 18 Front End Lighting Wiring Circuit. 1983 Imperial (Part 2 of 2):
