Home >> Chrysler >> 1983 >> Imperial V8-318 5.2L VIN N TBI >> Repair and Diagnosis >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams

Multiple Junction Connector: Diagrams

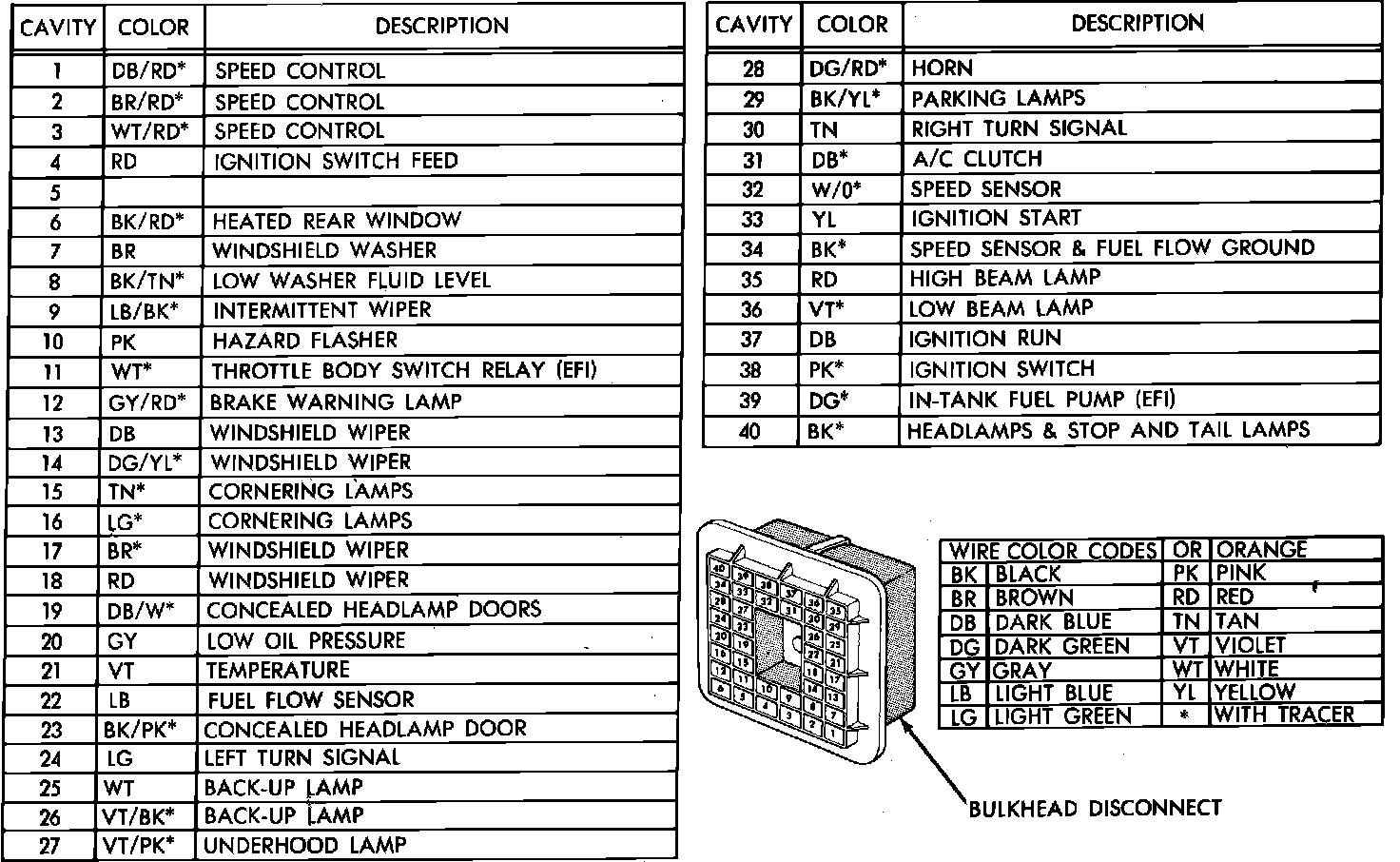

Fig. 4 Bulkhead Connector (40 Way Bulkhead Disconnect). 1983 Imperial:
