Home >> Chrysler >> 1983 >> Imperial V8-318 5.2L VIN N TBI >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Part 2

Part 2

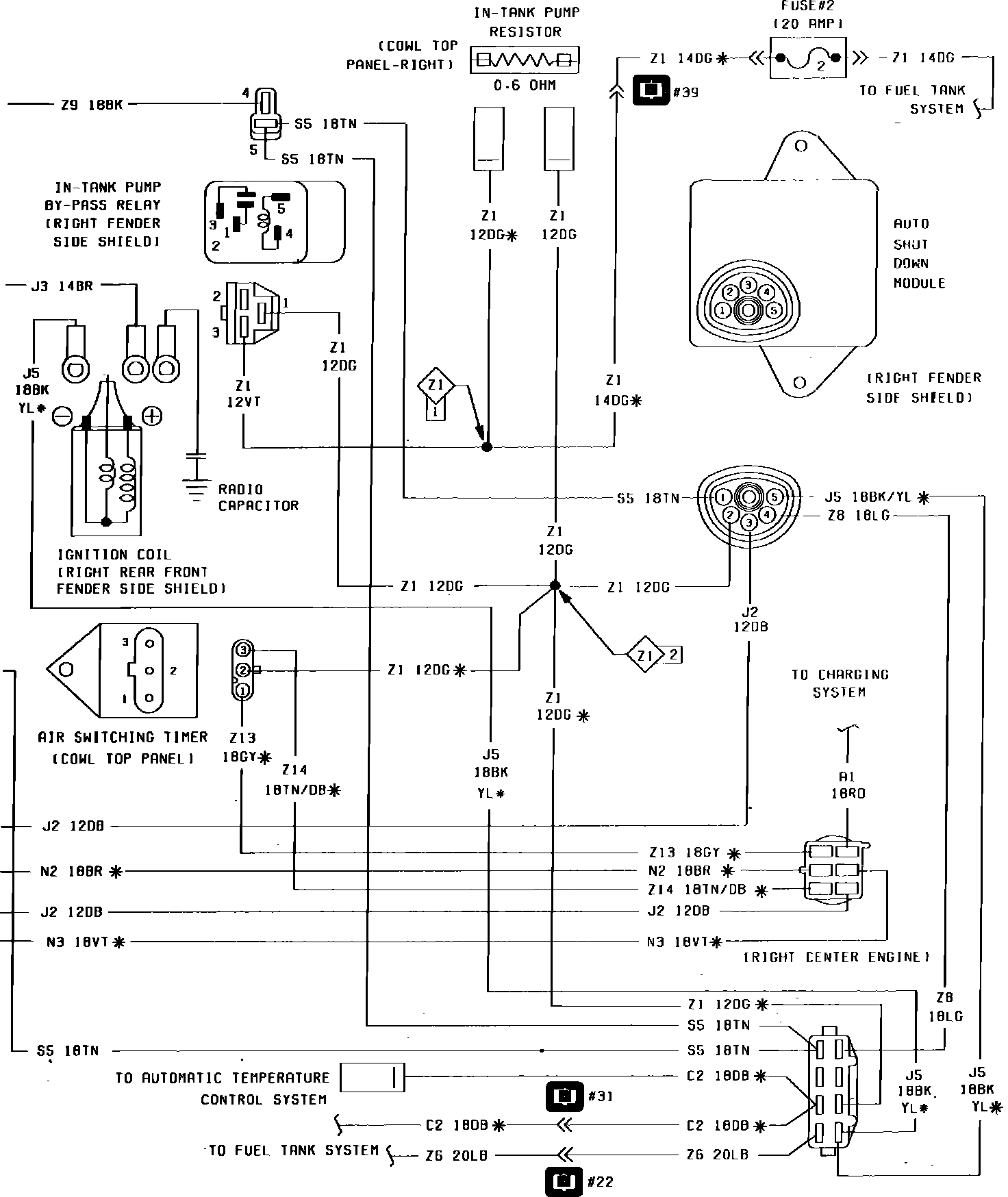

Fig. 15 Electronic Spark Advance System Wiring Circuit (Electronic Fuel Injection). 1983 Imperial (Part 2 of 4):
