Emission Control Systems
Emission Control Systems

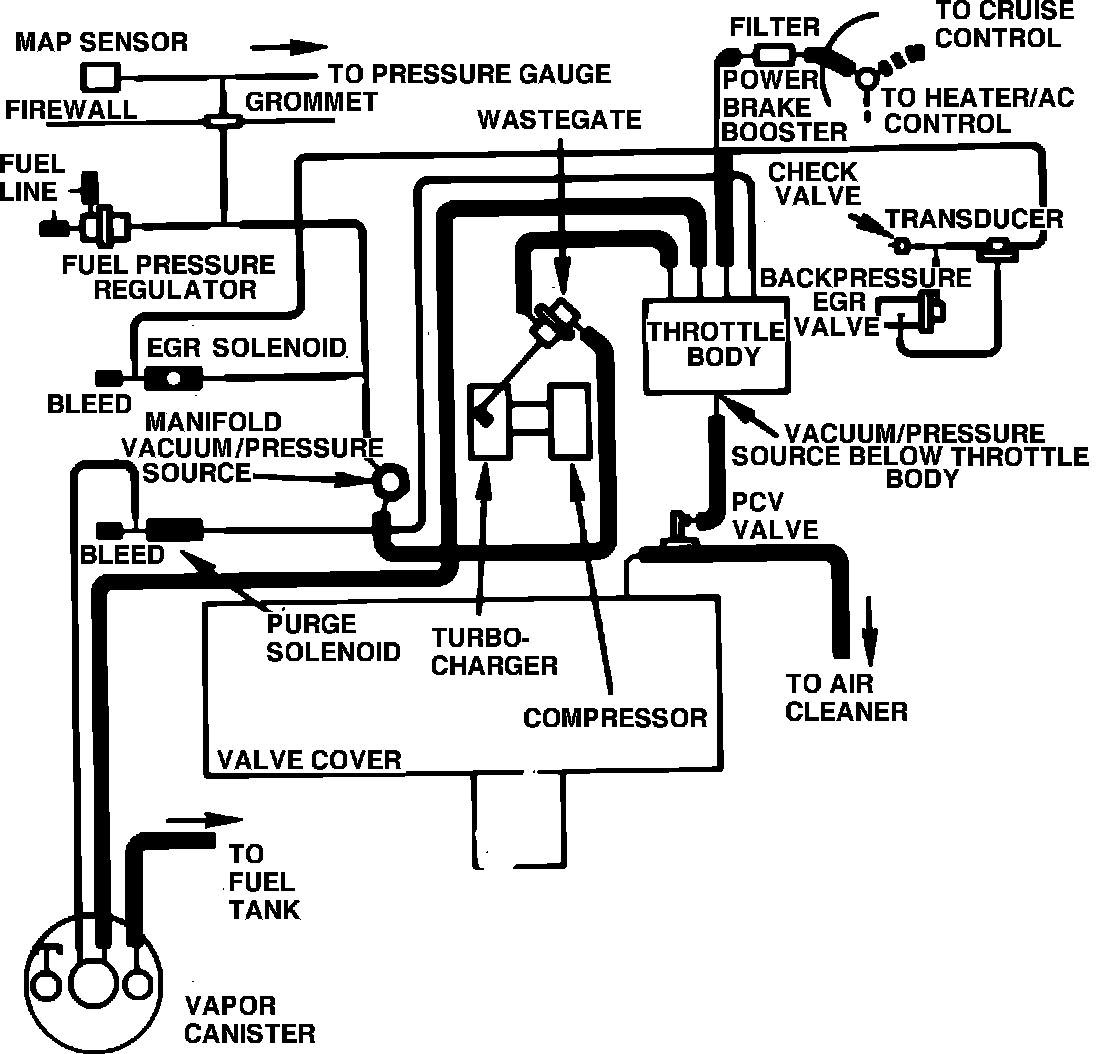

Fig. 6 Vacuum hose routing. 1984 4-135/2.2L EFI Turbo:
