Home >> Chrysler >> 1984 >> E Class L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> Lighting and Horns >> Underhood Lamp >> Diagrams >> Electrical Diagrams

Electrical Diagrams

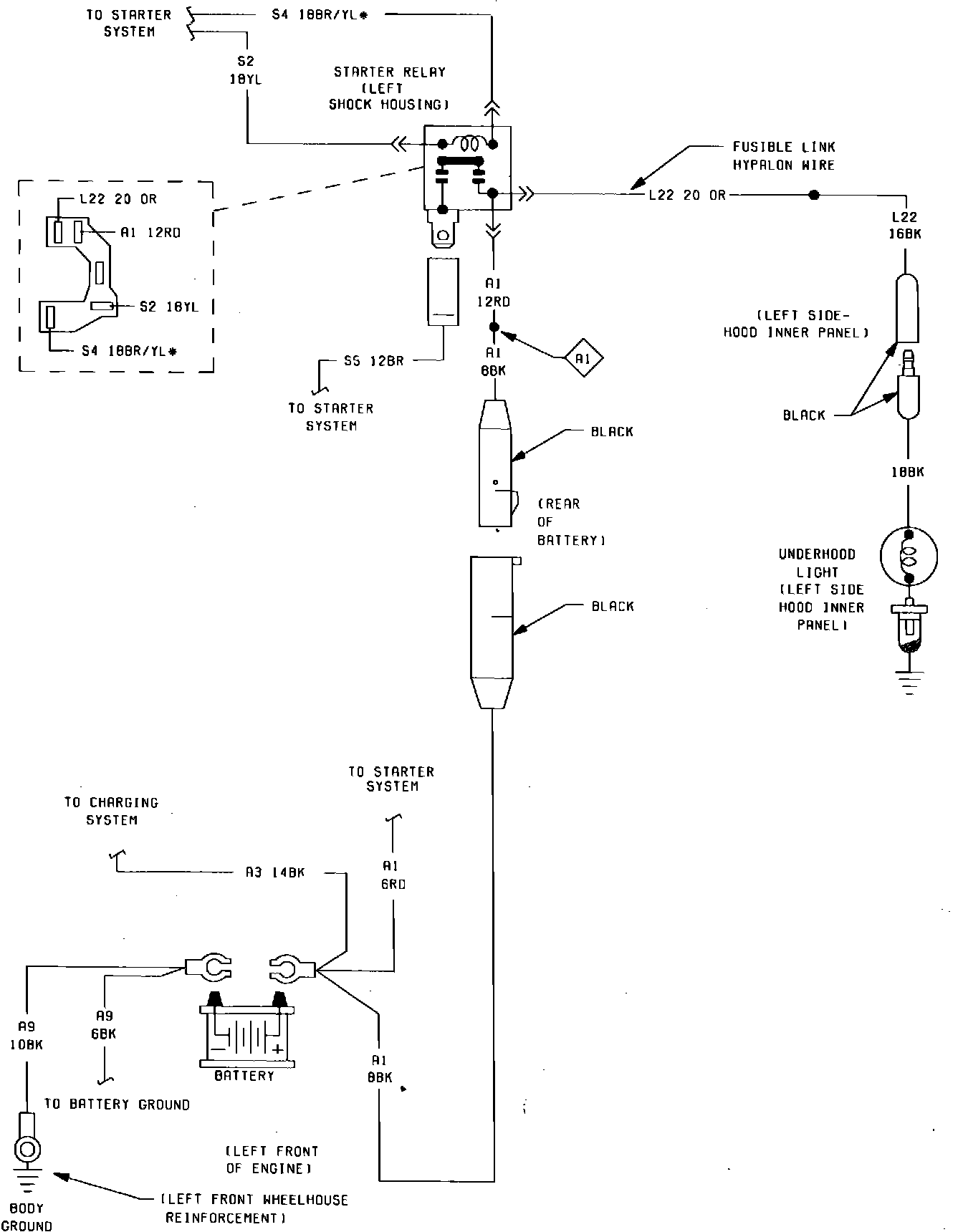

Fig. 126 Underhood Lamp Wiring Circuit. 1984:
