Instrument Cluster / Carrier
Instrument Cluster / Carrier

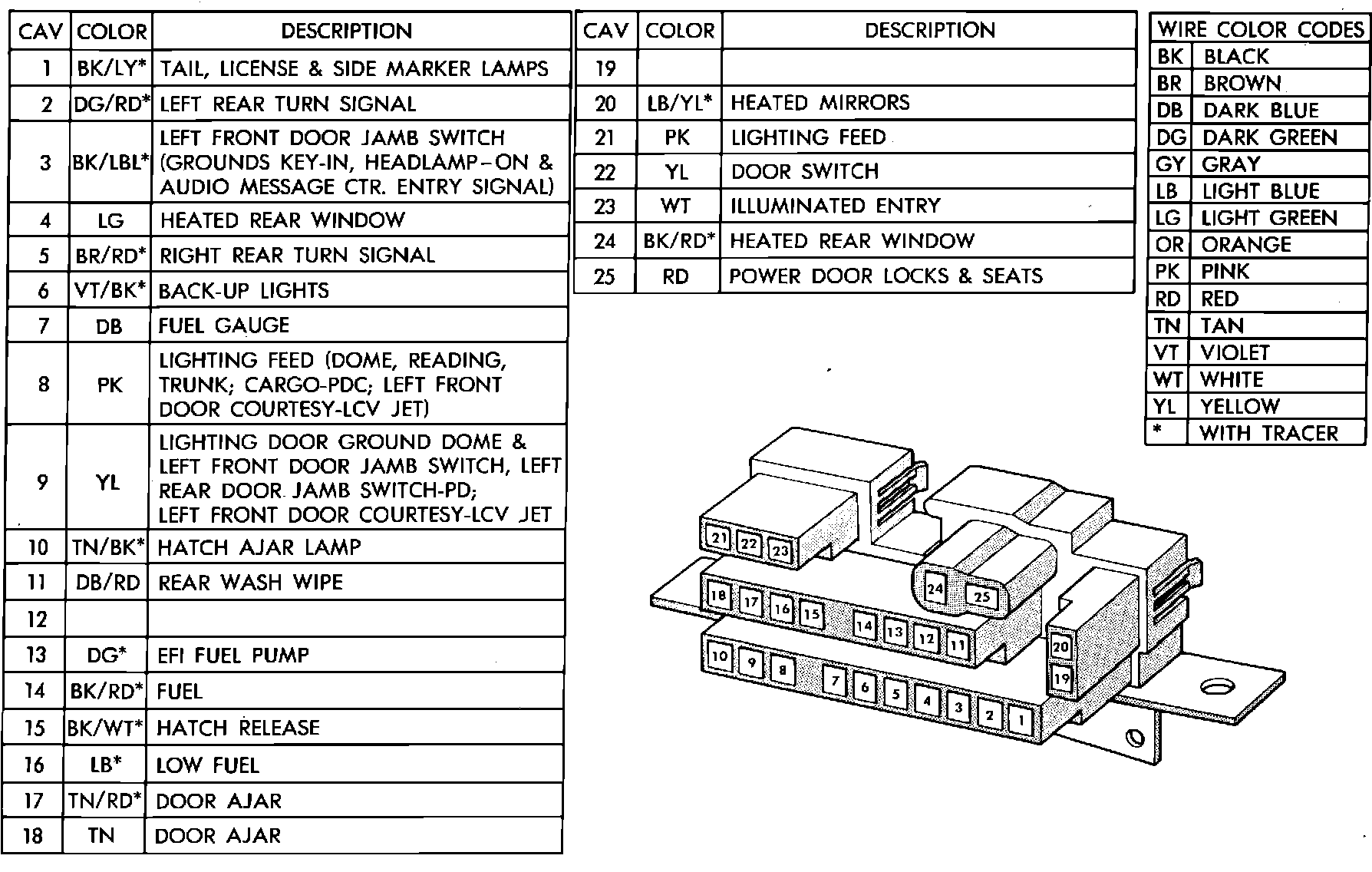

Fig. 6 Body To Instrument Panel Connector (25 Way). 1984:
