Home >> Chrysler >> 1984 >> Laser L4-135 2.2L SOHC VIN D TBI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Accessory Delay Module

Accessory Delay Module

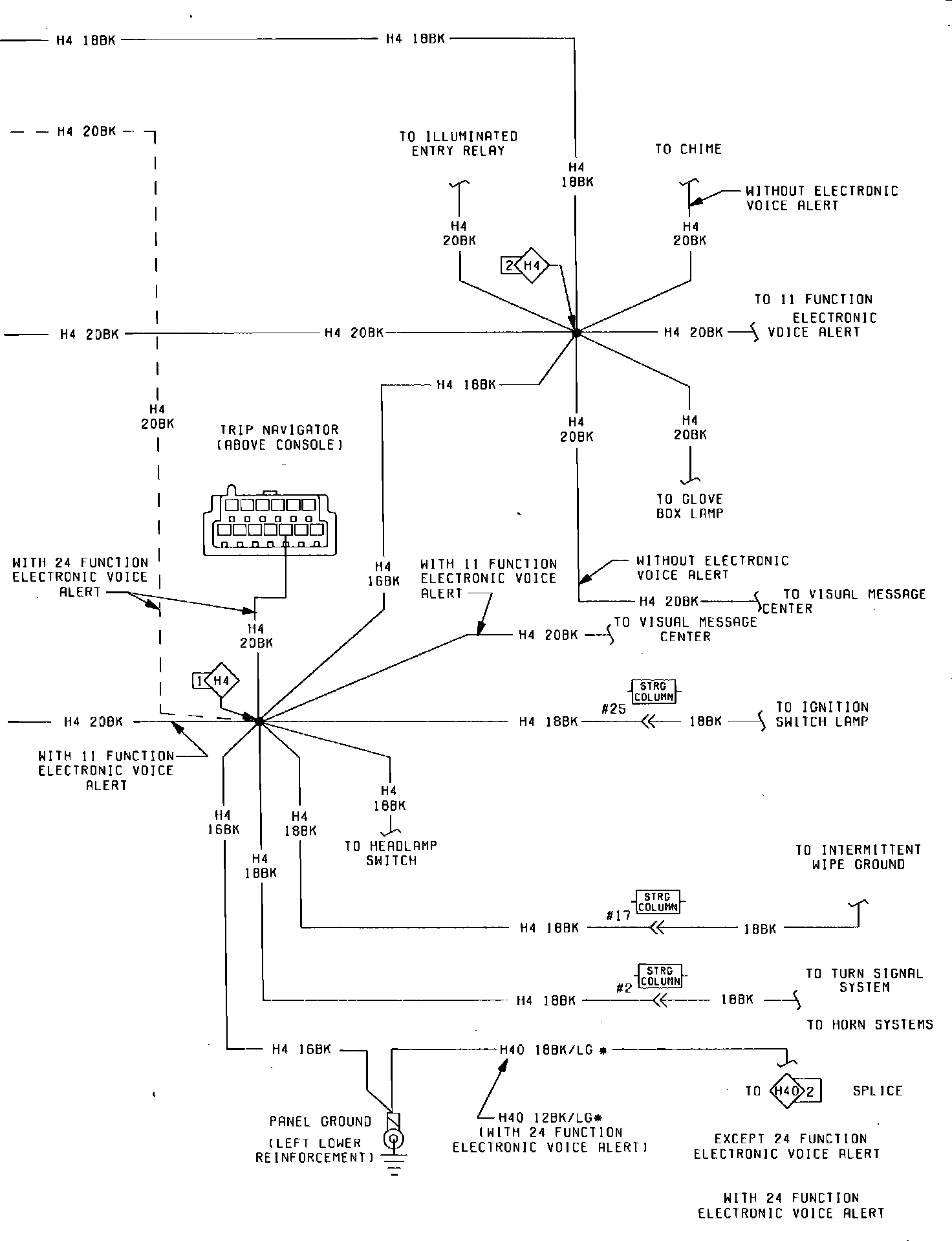

Fig. 17 Cigar Lighter & Headlamp Switch Controlled Interior Lighting Wiring Circuit (Part 1 of 2). 1984:

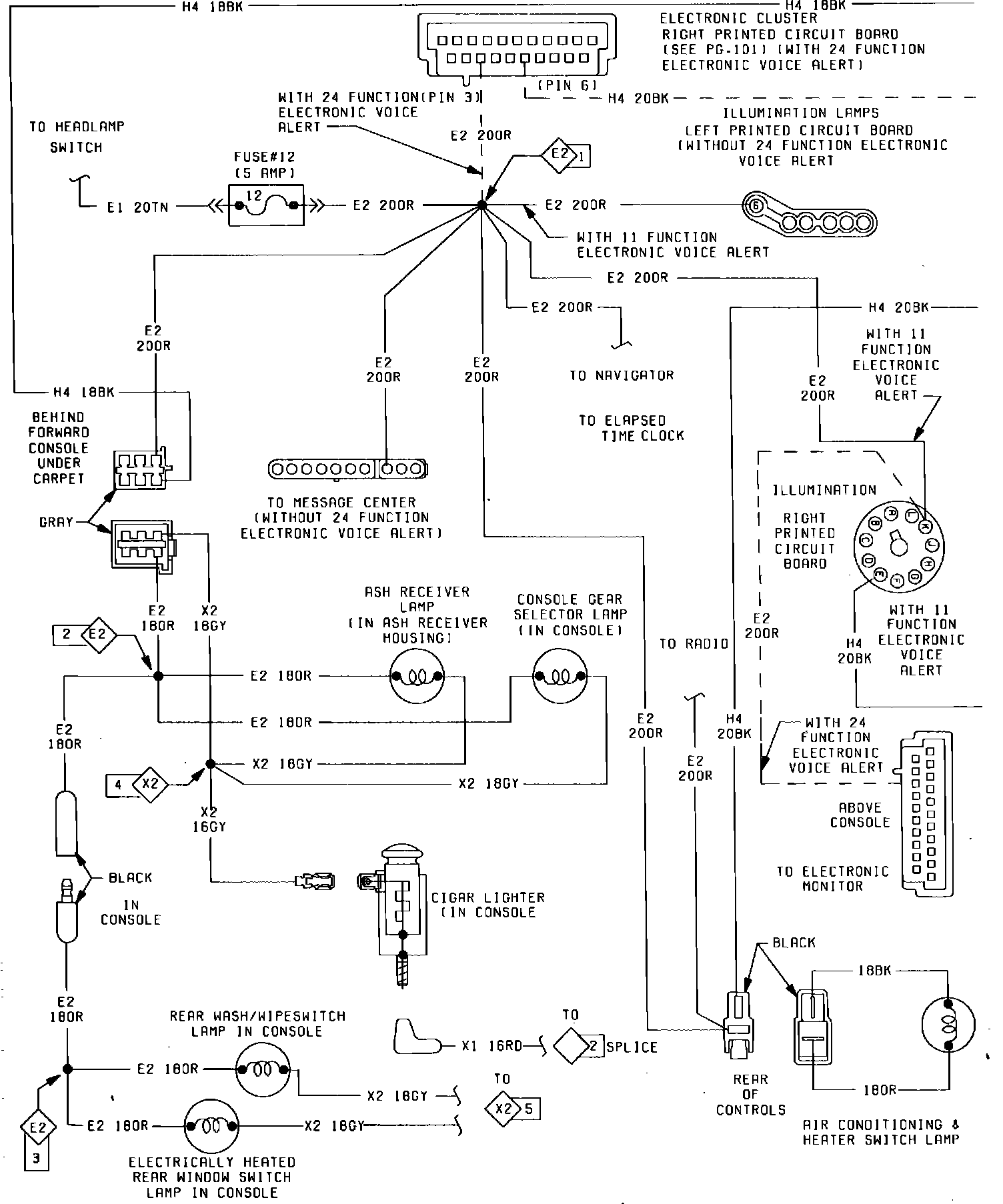

Fig. 17 Cigar Lighter & Headlamp Switch Controlled Interior Lighting Wiring Circuit (Part 2 of 2). 1984:
