Home >> Chrysler >> 1984 >> Laser L4-135 2.2L SOHC VIN D TBI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Amplifier, Sound System >> Part 1 of 2

Part 1 of 2

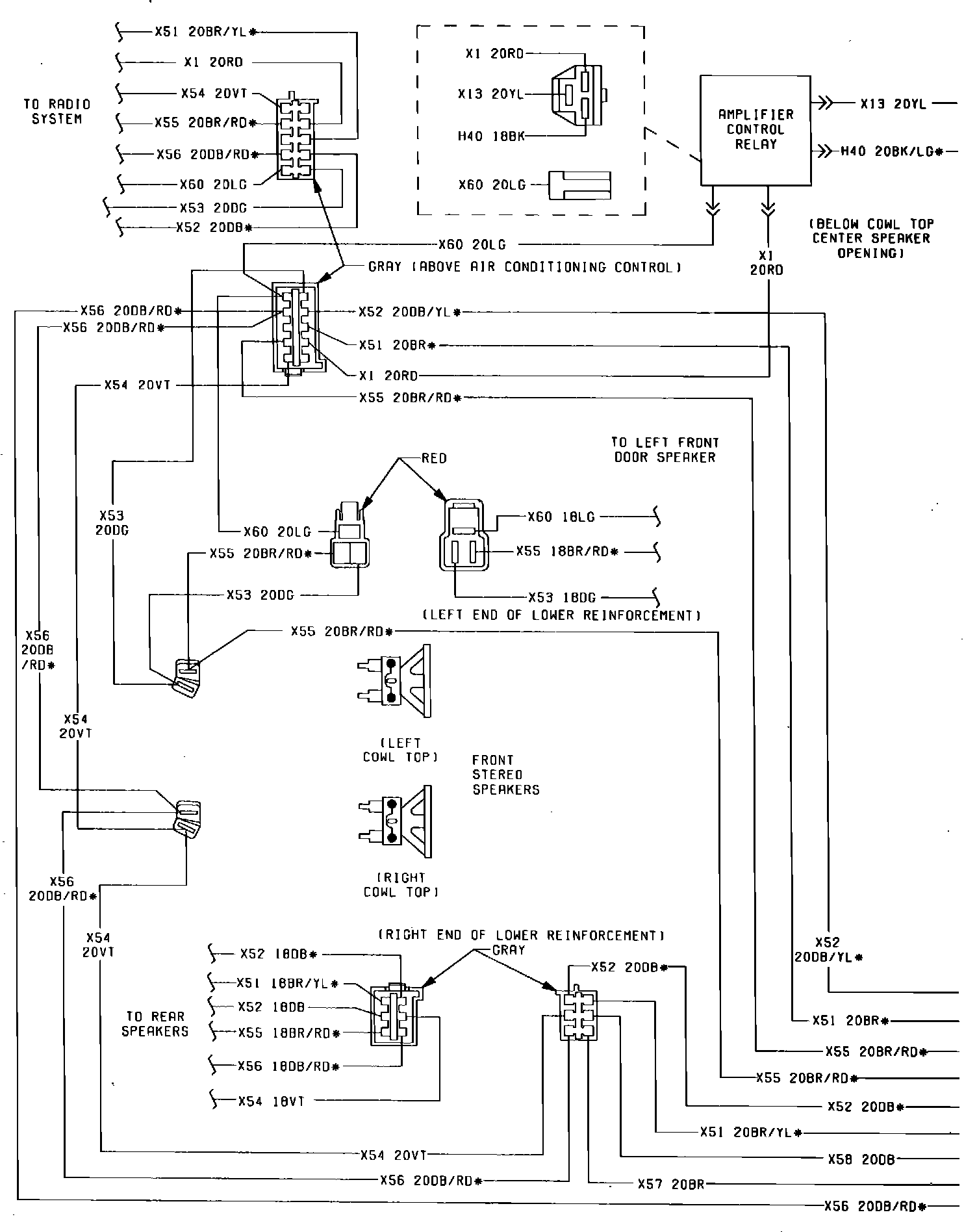

Fig. 51 Radio Power Amplifier Wiring Circuit (Part 1 of 2). 1984:
