System Diagram
System Diagram

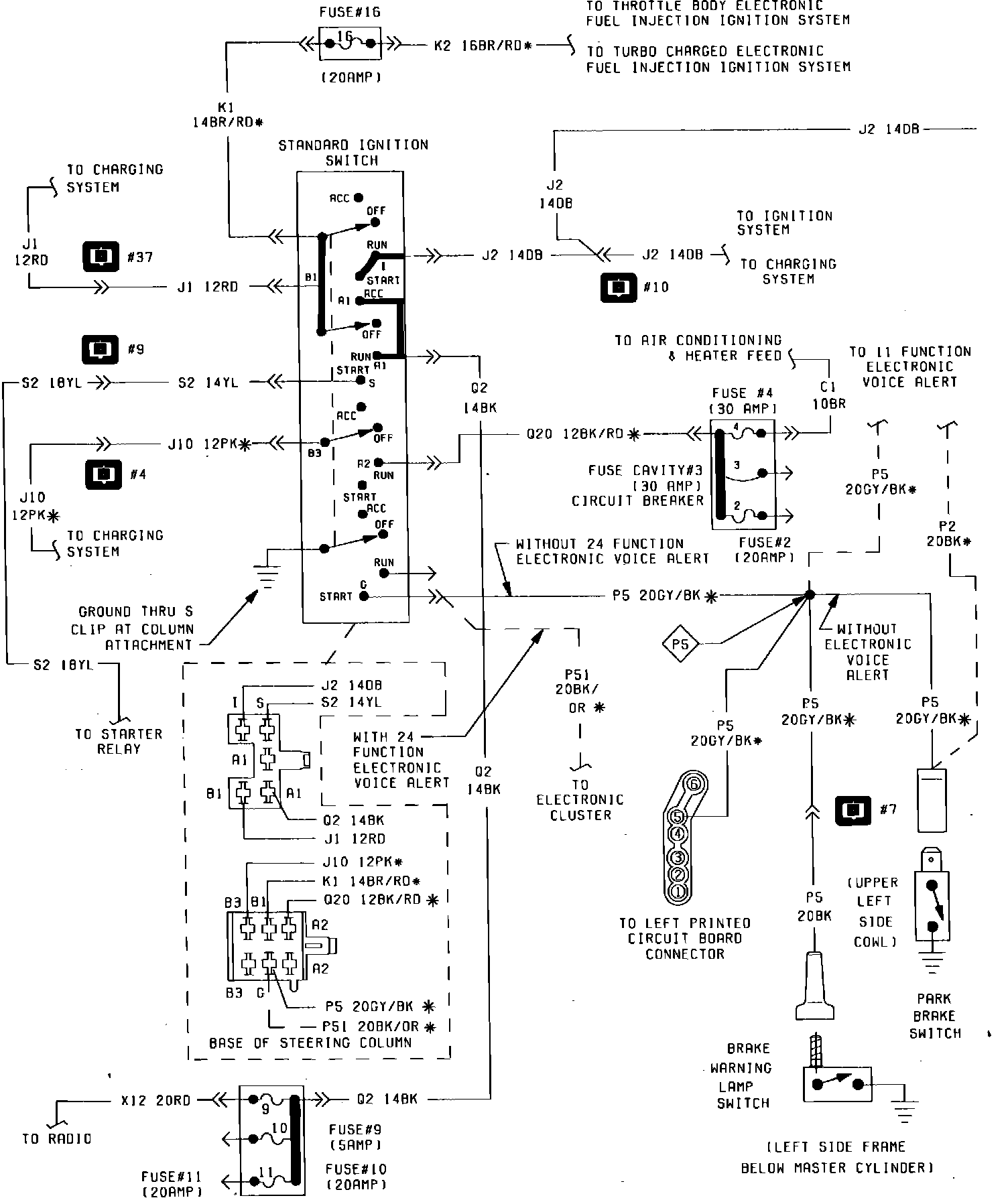

Fig. 18 Cruise Control & Ignition Switch. 1984 Ignition Switch:

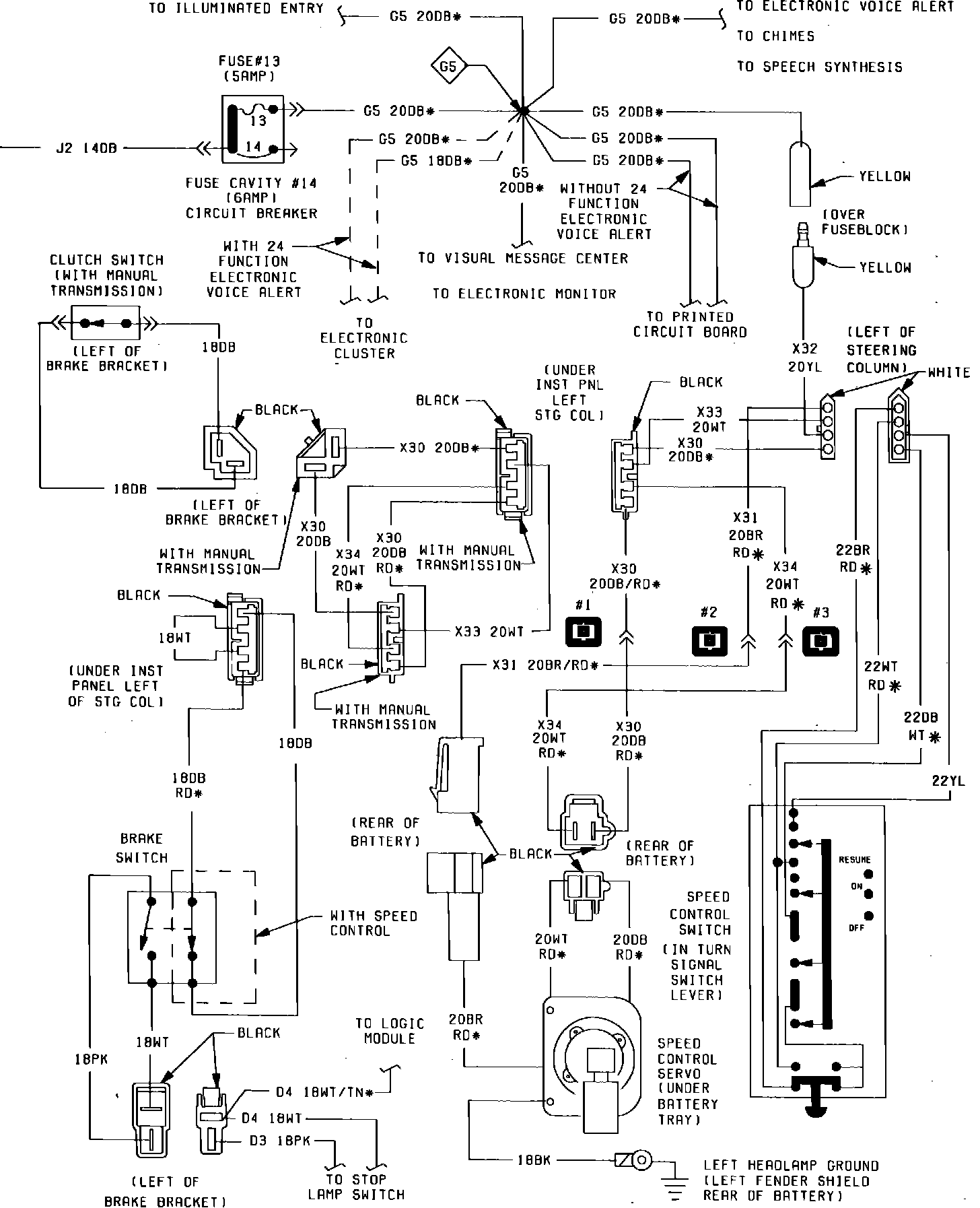

Fig. 18 Cruise Control & Ignition Switch. 1984 Cruise Control:
