A/C & Heater (Engine Compartment)
A/C & Heater (Engine Compartment)

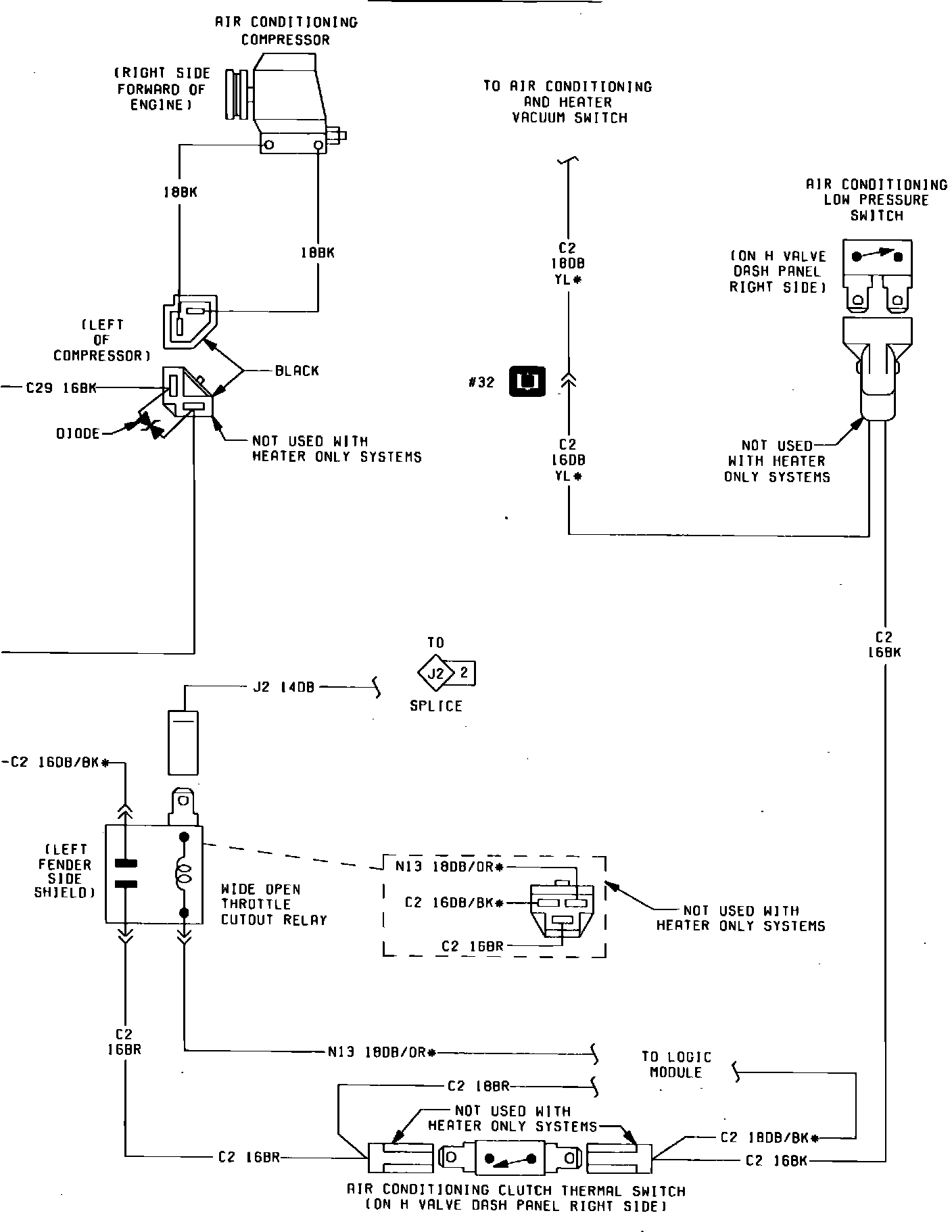

Air Conditioning And Heater System - Turbocharged And TBI (Part 1 Of 2):

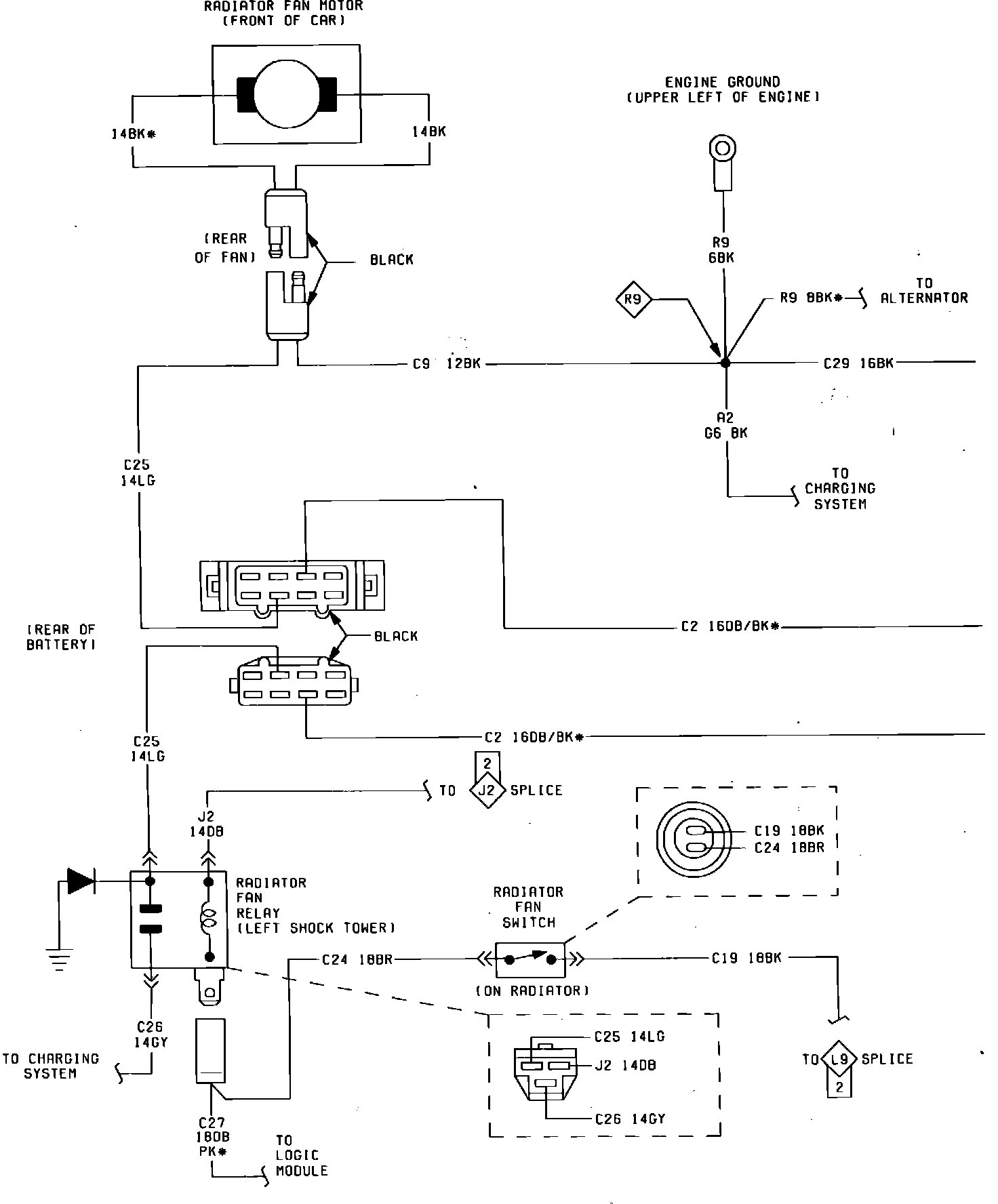

Air Conditioning And Heater System - Turbocharged And TBI (Part 2 Of 2):
