Brake Light Switch

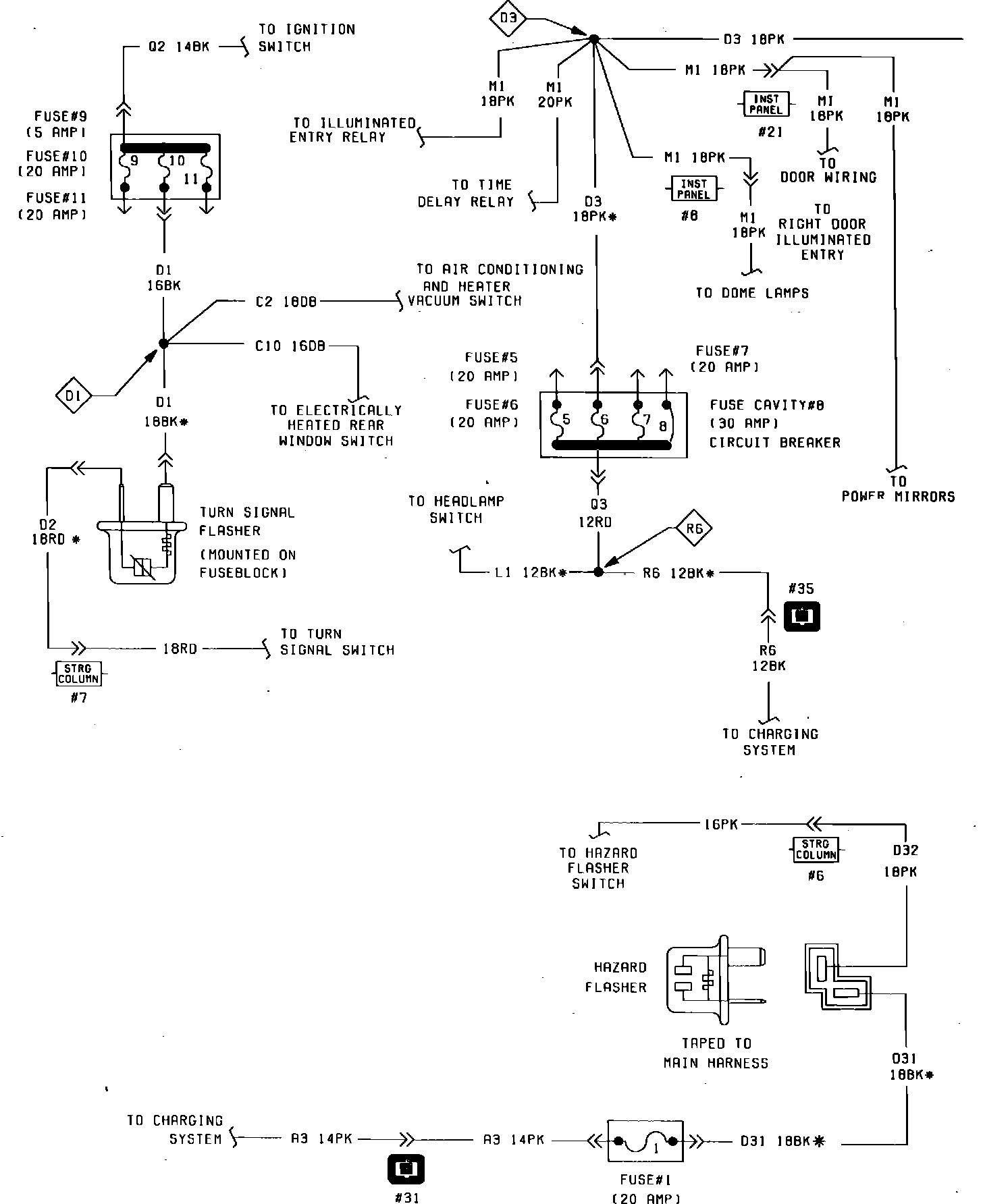

Fig. 32 Hazard & Turn Flasher System & Stop Switch Wiring Circuit (Part 1 of 2). 1984:

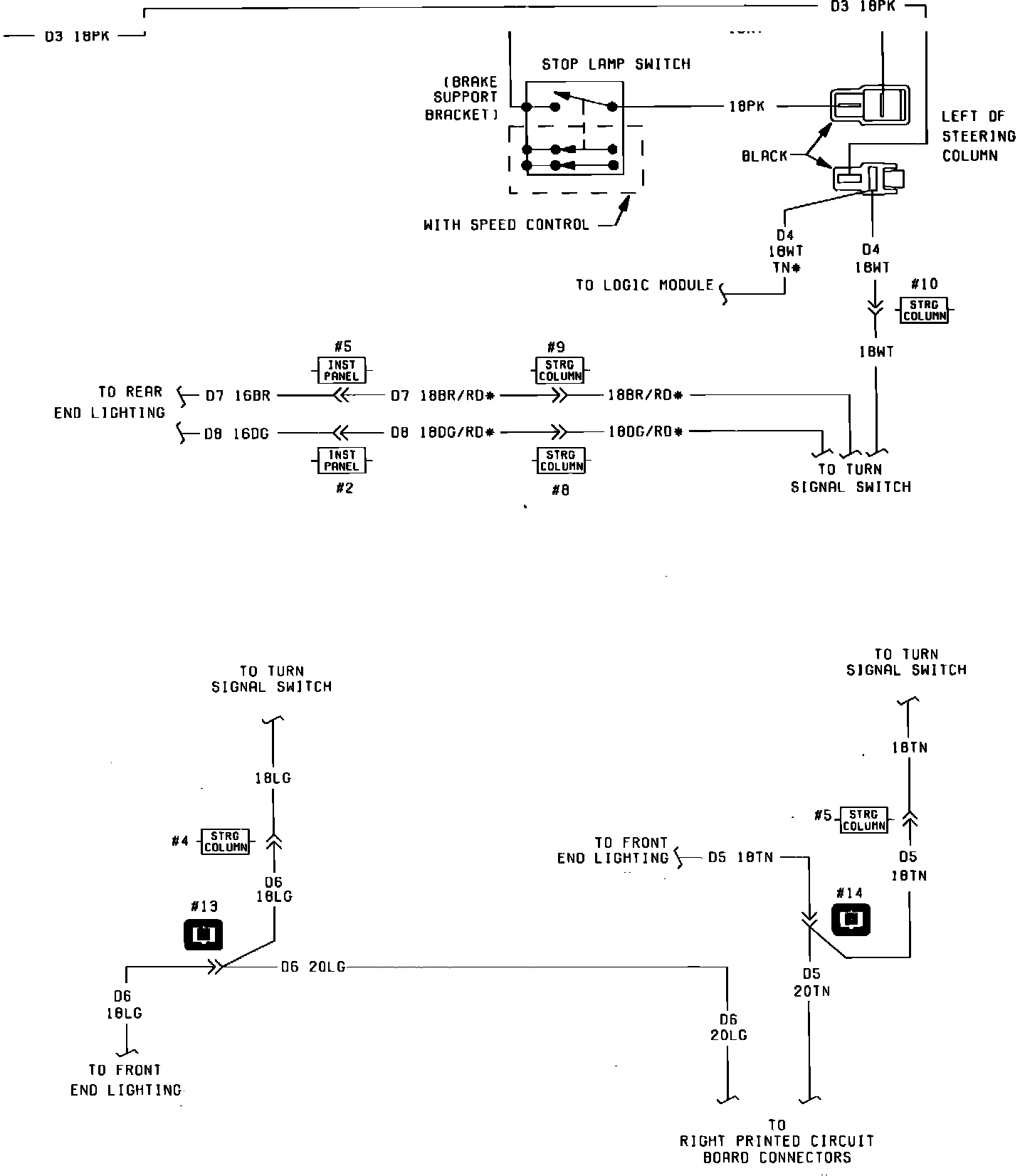

Fig. 32 Hazard & Turn Flasher System & Stop Switch Wiring Circuit (Part 2 of 2). 1984:
