Part 1 of 2

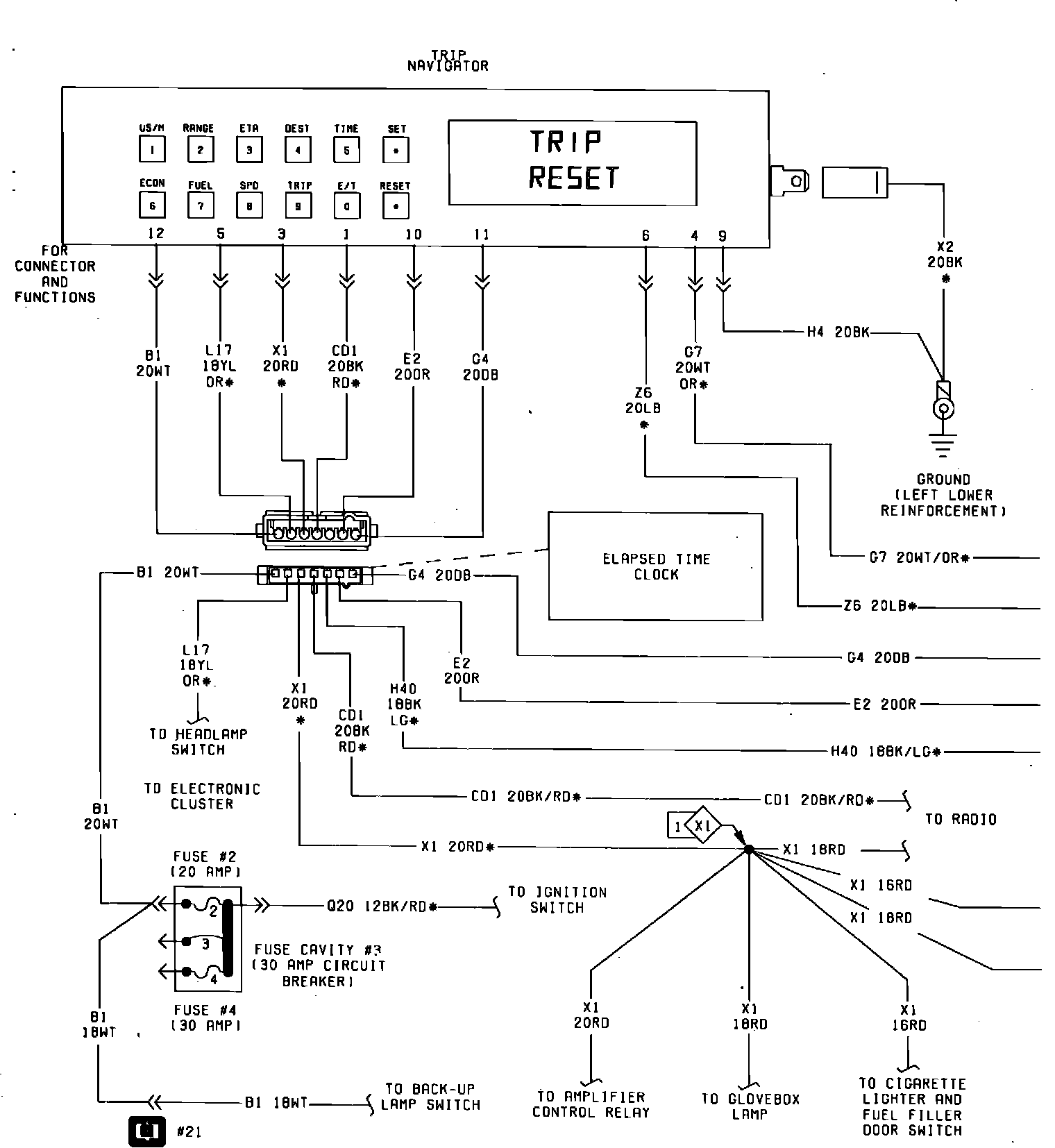

Fig. 21 Elapsed Time Clock & Trip Navigator (L/24 Funciton Electronic Voice Alert, Part 1 of 2) Wiring Circuit. 1984:
