Home >> Chrysler >> 1984 >> Laser L4-135 2.2L SOHC VIN D TBI >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Electronic Spark Advance System Wiring Circuit >> Part 1 of 2

Part 1 of 2

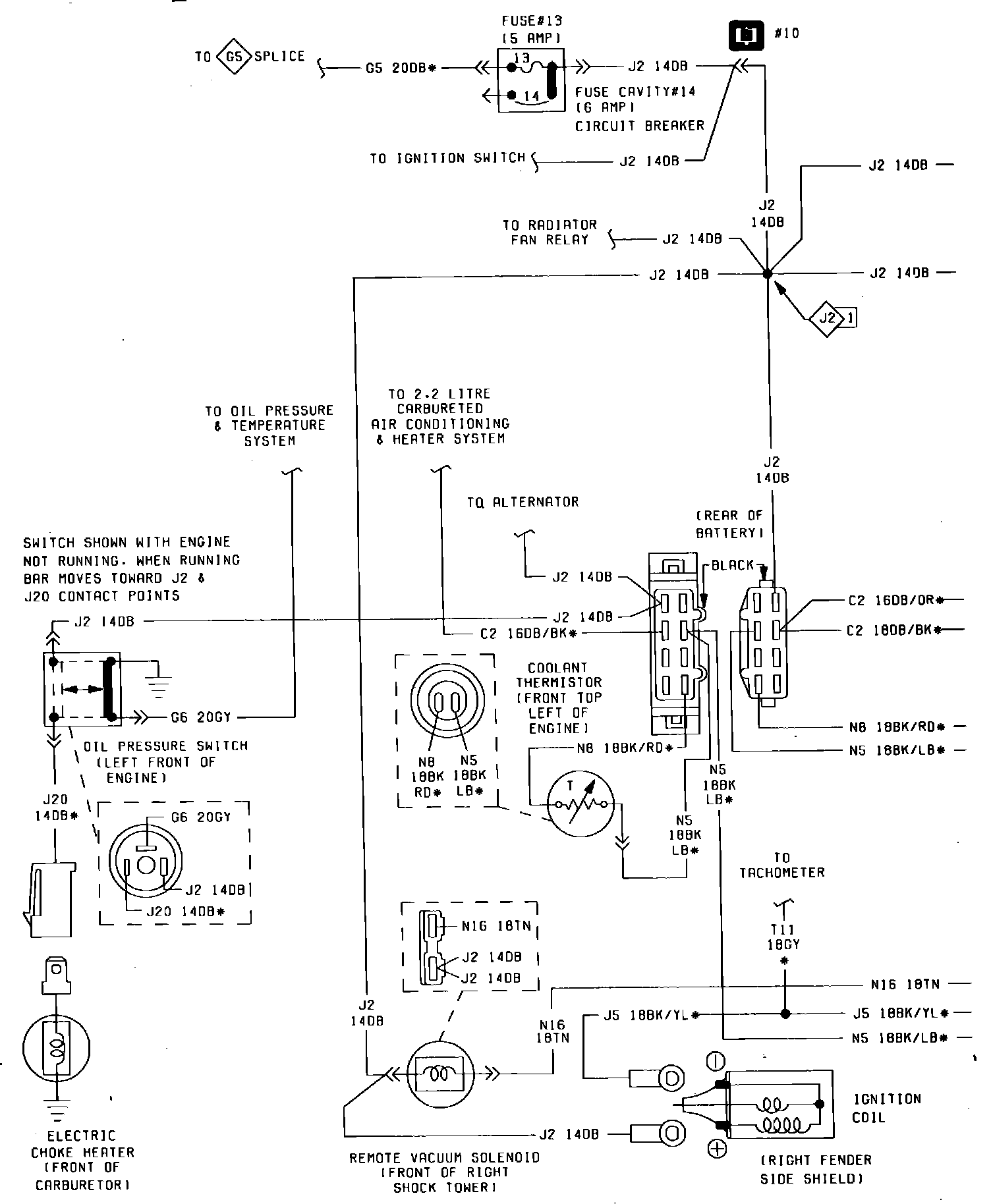

Fig. 28 Electronic Spark Advance Ignition System Wiring Circuit (Part 1 of 2). 1984:
