With Intermittent Wiper

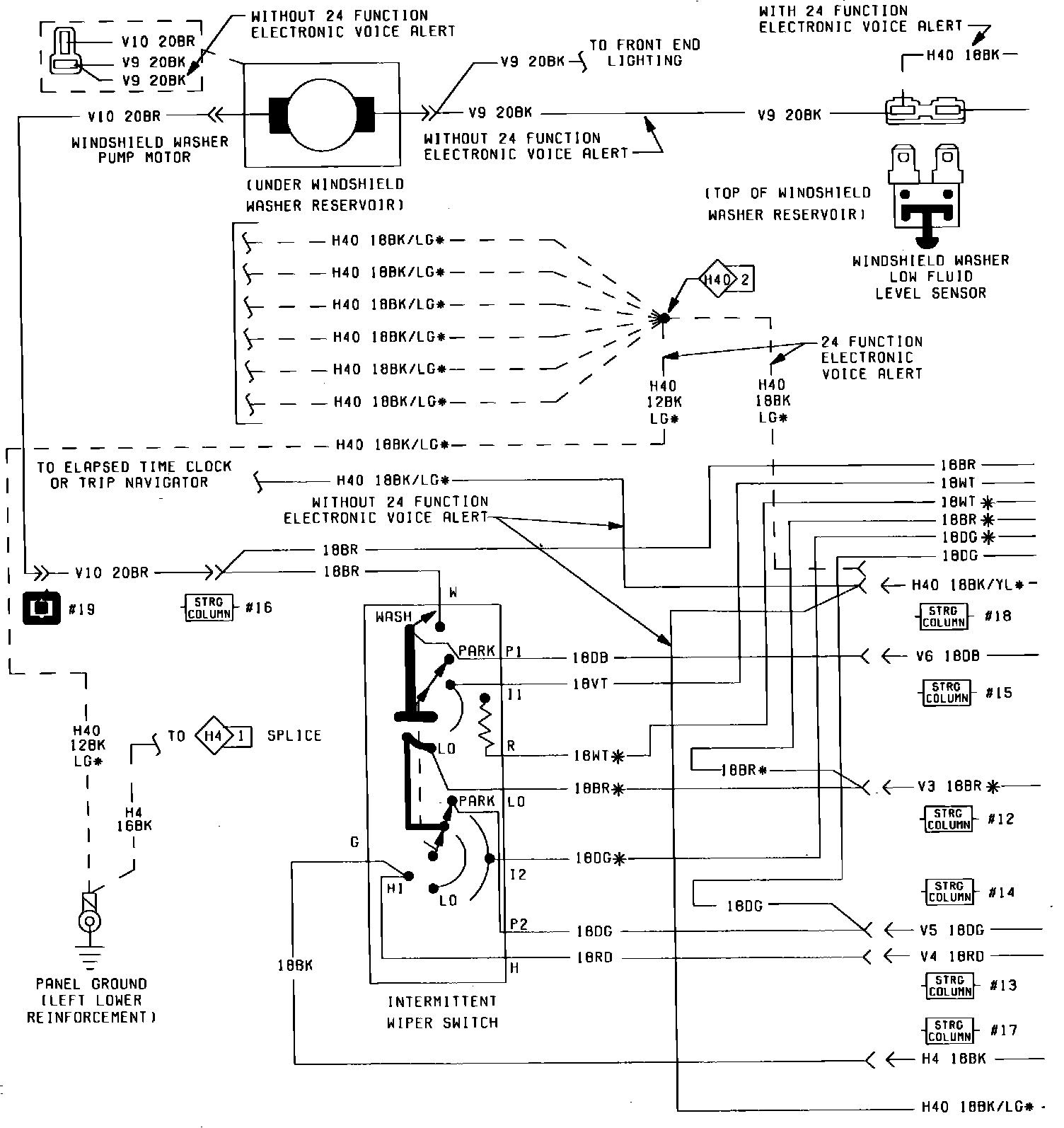

Fig. 40 Intermittent Wiper Wiring Circuit (Part 1 of 2). 1984:



Fig. 40 Intermittent Wiper Wiring Circuit (Part 2 of 2). 1984:
