Lebaron Convertible L4-135 2.2L SOHC VIN D TBI
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Related Tests, Information and Procedures
>>
Driveability (DR) Tests Warm (Fuel Injected)
Driveability (DR) Tests Warm (Fuel Injected)

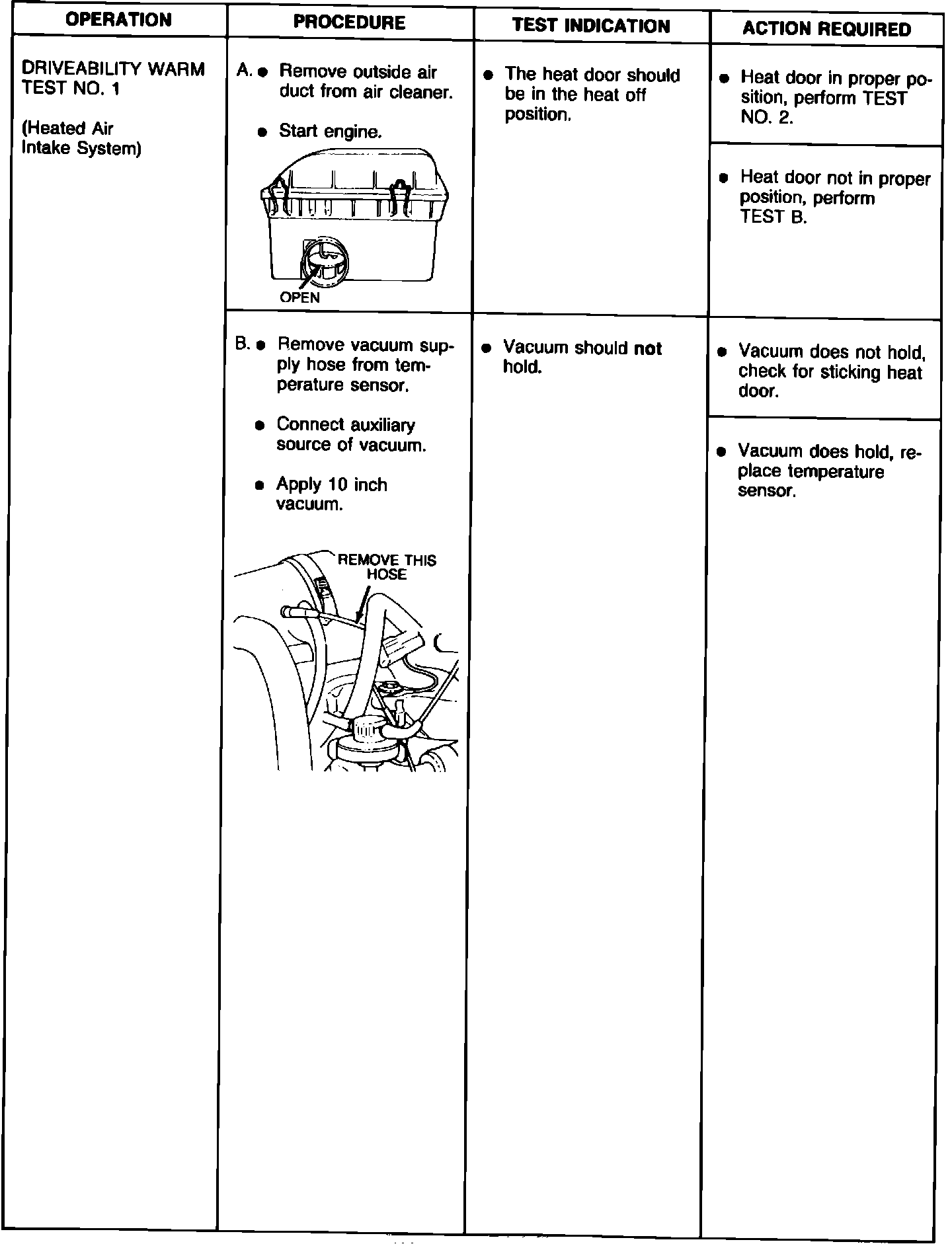

Test 1-Step A & B:

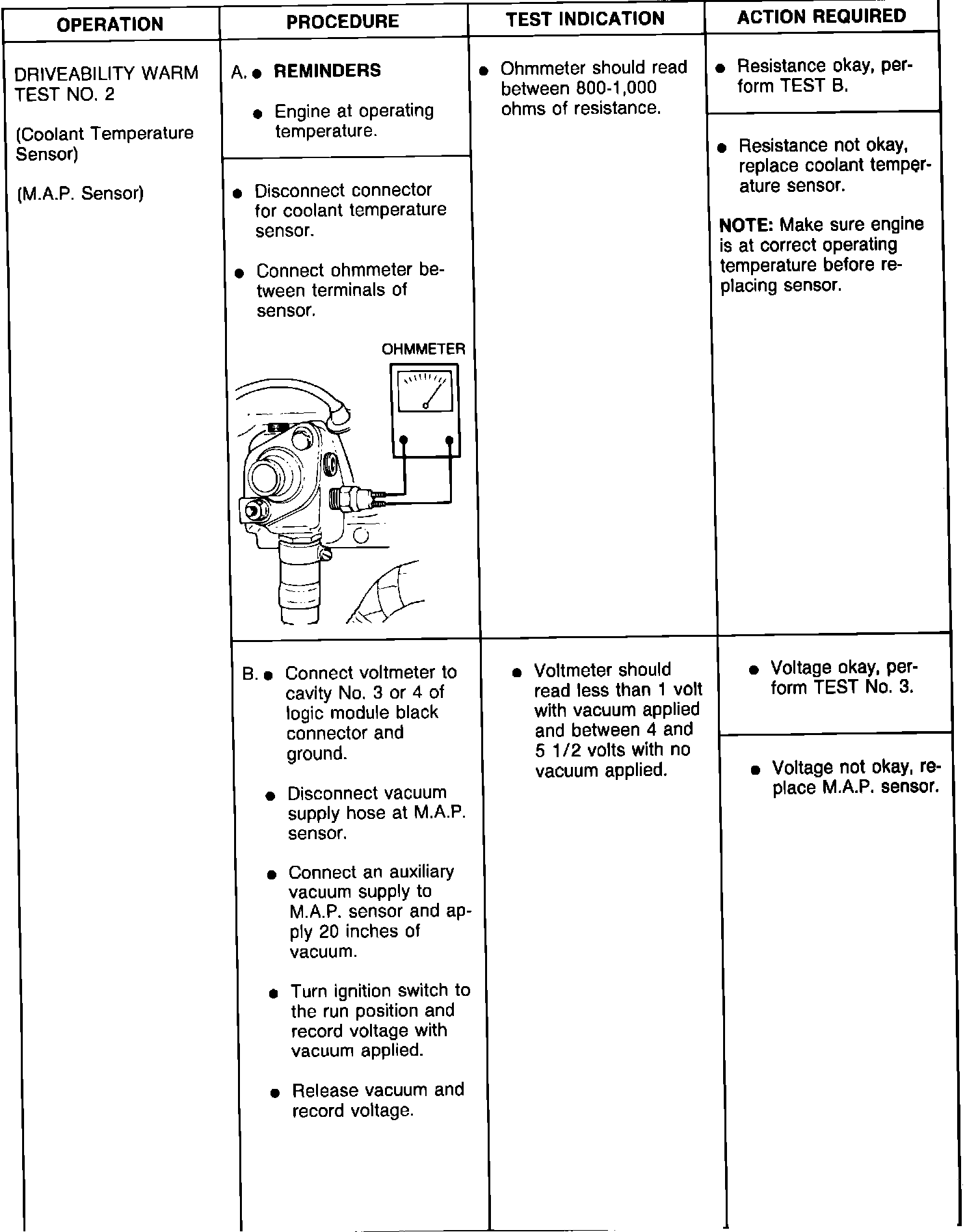

Test 2-Step A & B:

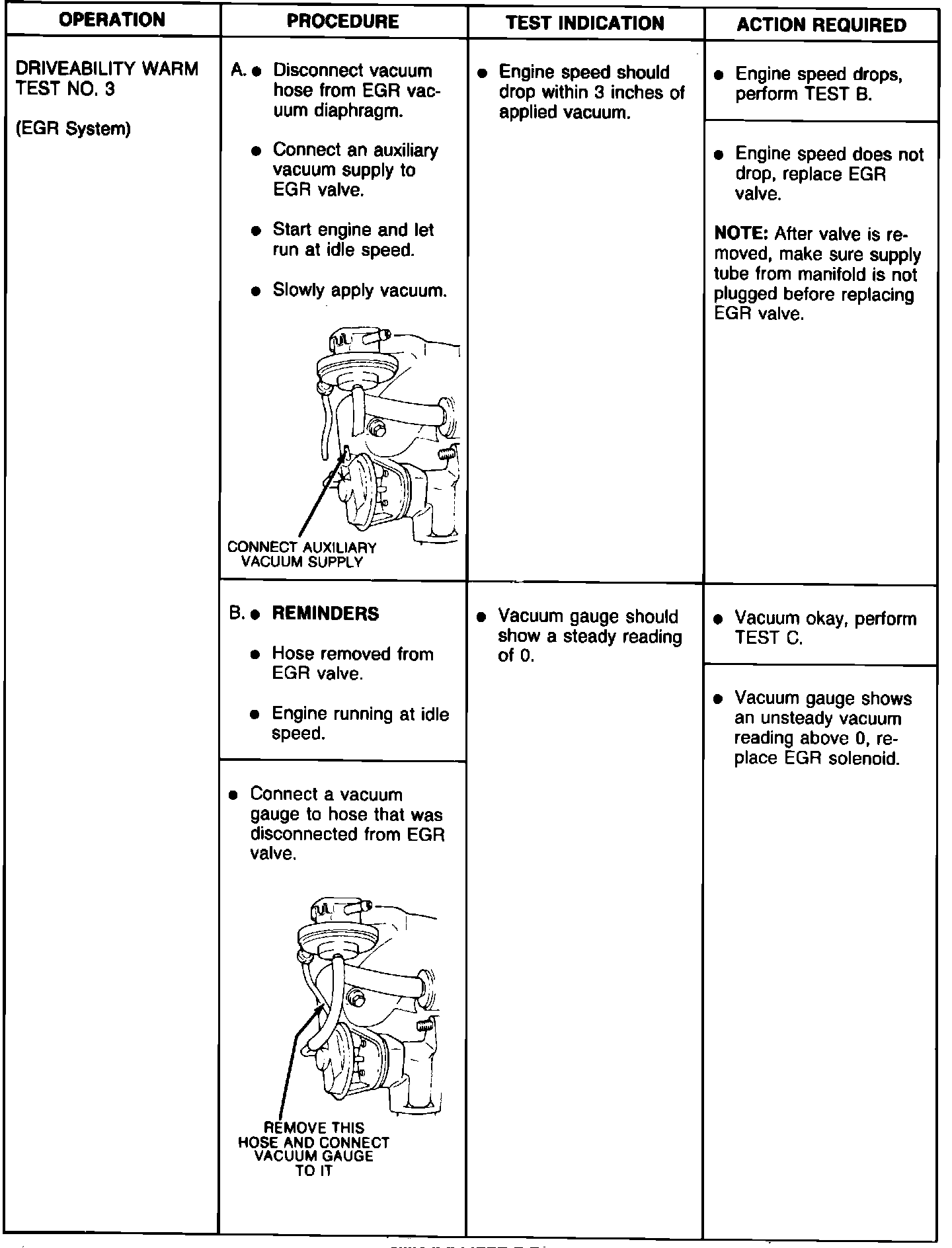

Test 3-Step A & B:
Test 3-Step C & D:
Test 3-Step E:

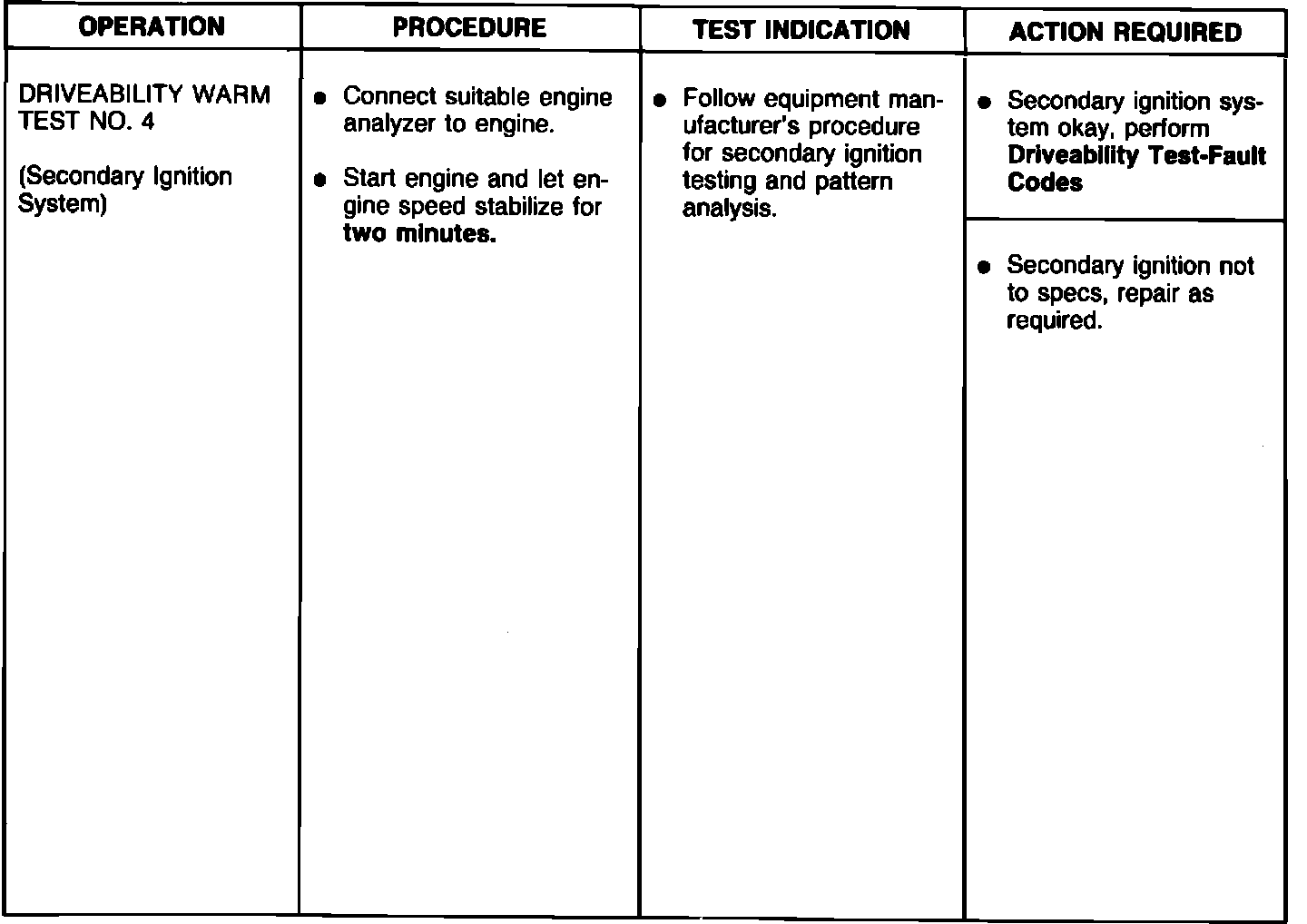

Test 4:
