Cooling System
>>
Radiator Fan (Heater Only)

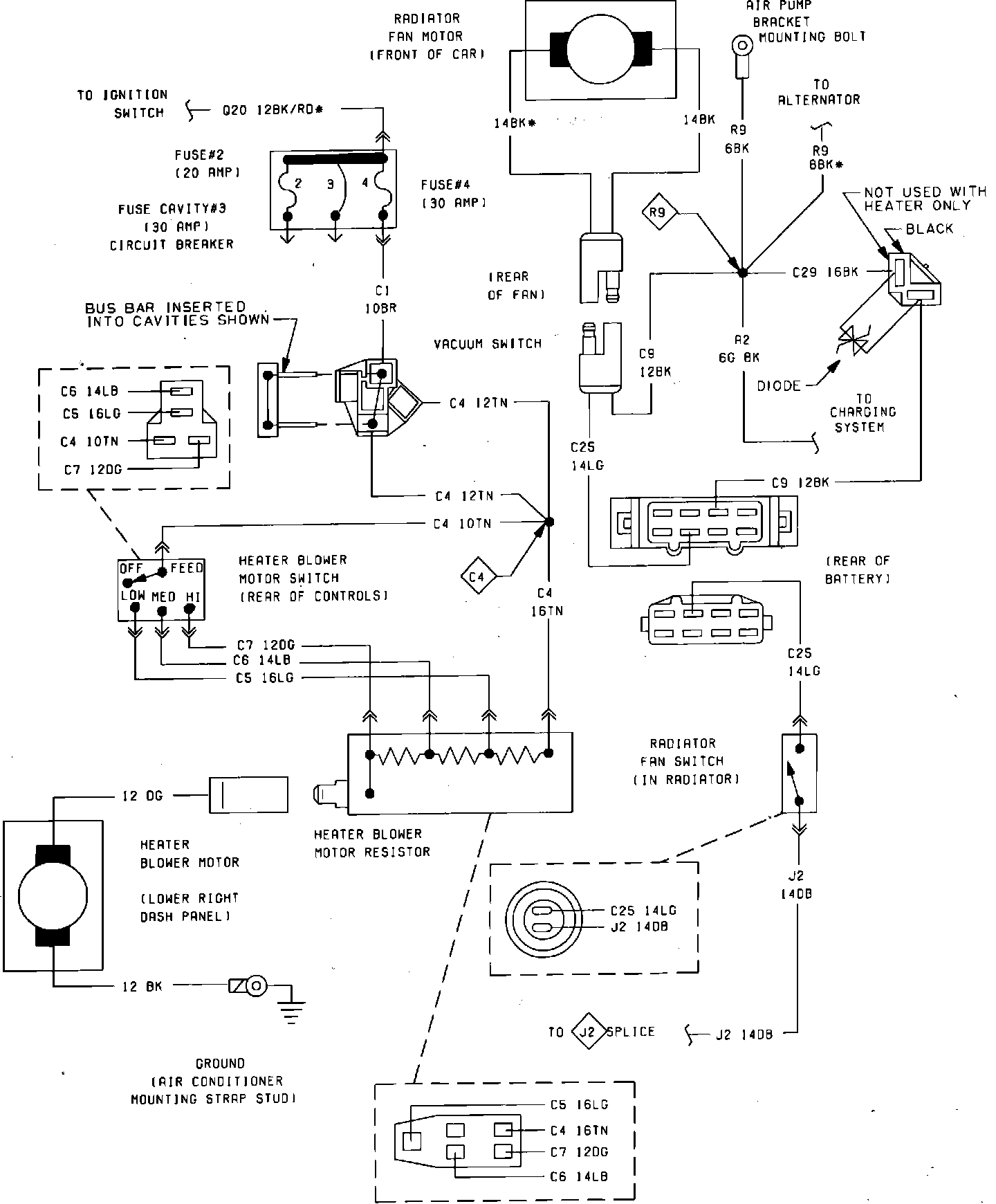

Radiator Fan (Heater Only)
Heater System 2.2L Carbureted:
